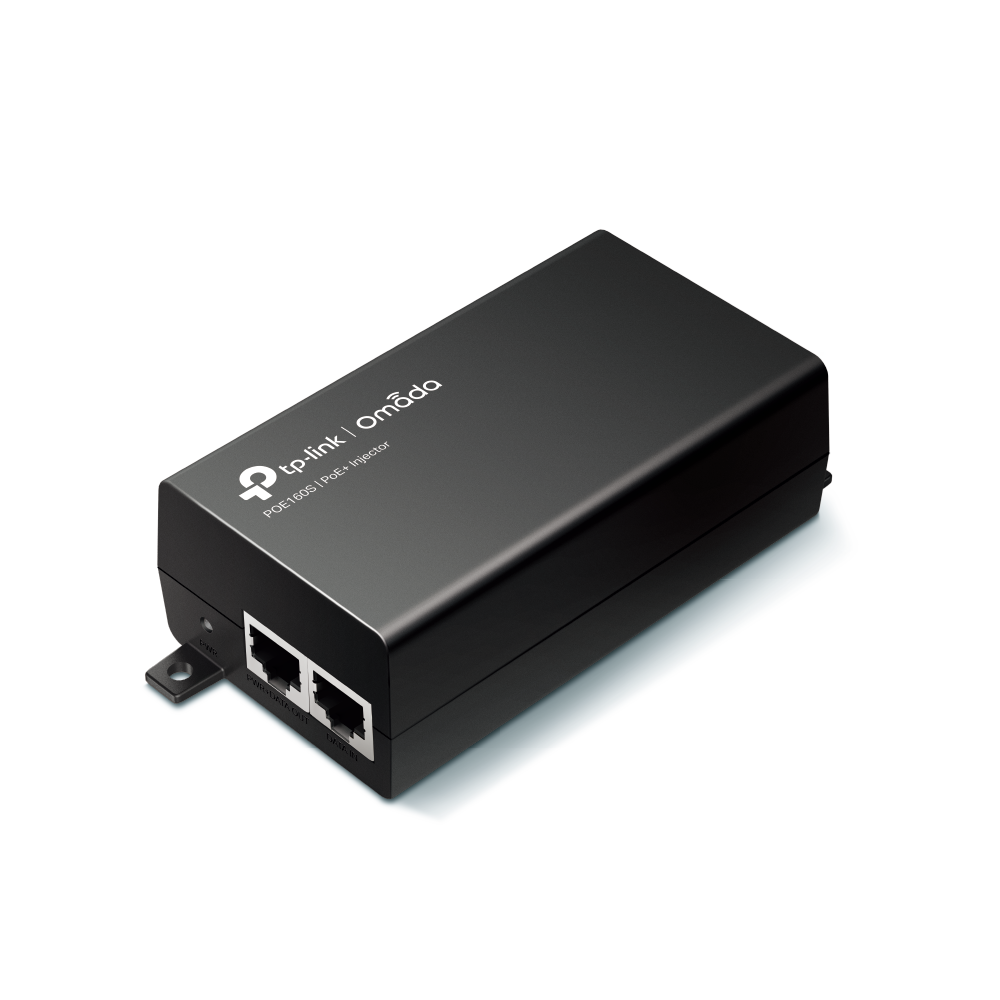

TP-Link Omada PoE+ Injector (POE160S)

The Omada PoE+ Injector (POE160S) is a high-performance Power over Ethernet solution designed to deliver both data and power through a single Ethernet cable. Fully compliant with IEEE 802.3af/at standards, it provides up to 30W of power, making it ideal for deploying devices such as wireless access points, IP cameras, and IP phones in locations where power outlets are limited or unavailable. With Gigabit speeds, plug-and-play installation, and intelligent power detection, this PoE injector ensures reliable and efficient network expansion while reducing infrastructure complexity and costs.

Product Features

Gigabit High-Speed Data Transmission

The Omada POE160S is equipped with dual Gigabit Ethernet ports that support high-speed data transfer, ensuring stable and fast network performance for connected devices without bottlenecks.

IEEE 802.3af/at PoE Compliance with Up to 30W Output

This PoE+ injector fully supports IEEE 802.3af/at standards, delivering up to 30 watts of power to compatible devices, making it suitable for high-power network equipment.

Power and Data Over a Single Ethernet Cable

By combining power and data transmission through one Ethernet cable, the POE160S simplifies deployment and reduces the cost of additional electrical wiring and infrastructure.

Intelligent Power Detection and Allocation

The device automatically detects the power requirements of connected devices and supplies the exact amount needed, ensuring safe and efficient operation without overload risks.

Flexible Installation with Plug and Play Design

Designed for convenience, the injector supports both desktop and wall-mount installation and requires no configuration. Simply connect and it is ready to use.

Product Specifications

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
• Interface: 1 × 10/100/1000Mbps RJ45 data-in port; 1 × 10/100/1000Mbps RJ45 power + data-out port; 1 × AC socket
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (up to 100 m), STP 100Ω (up to 100 m) , 100BASE-TX: UTP category 5, 5e cable (up to 100 m), STP 100Ω (up to 100 m) , 1000BASE-T: UTP category 5, 5e, 6 cable (up to 100 m)
• Power Input: 100–240V, 50/60Hz
• Power Output: Auto-detects device power requirements (maximum 30W)
• Basic Function: Auto-sensing PoE power delivery, intelligent power allocation, plug-and-play operation, wall or desktop installation
• LED Indicators: Power and PoE status
• Dimensions: 125 × 59.4 × 36.8 mm (4.9 × 2.3 × 1.4 in)
• Certification: FCC, CE, RoHS
• Package Content: POE160S unit, installation guide, power cord, wall mounting kit
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
