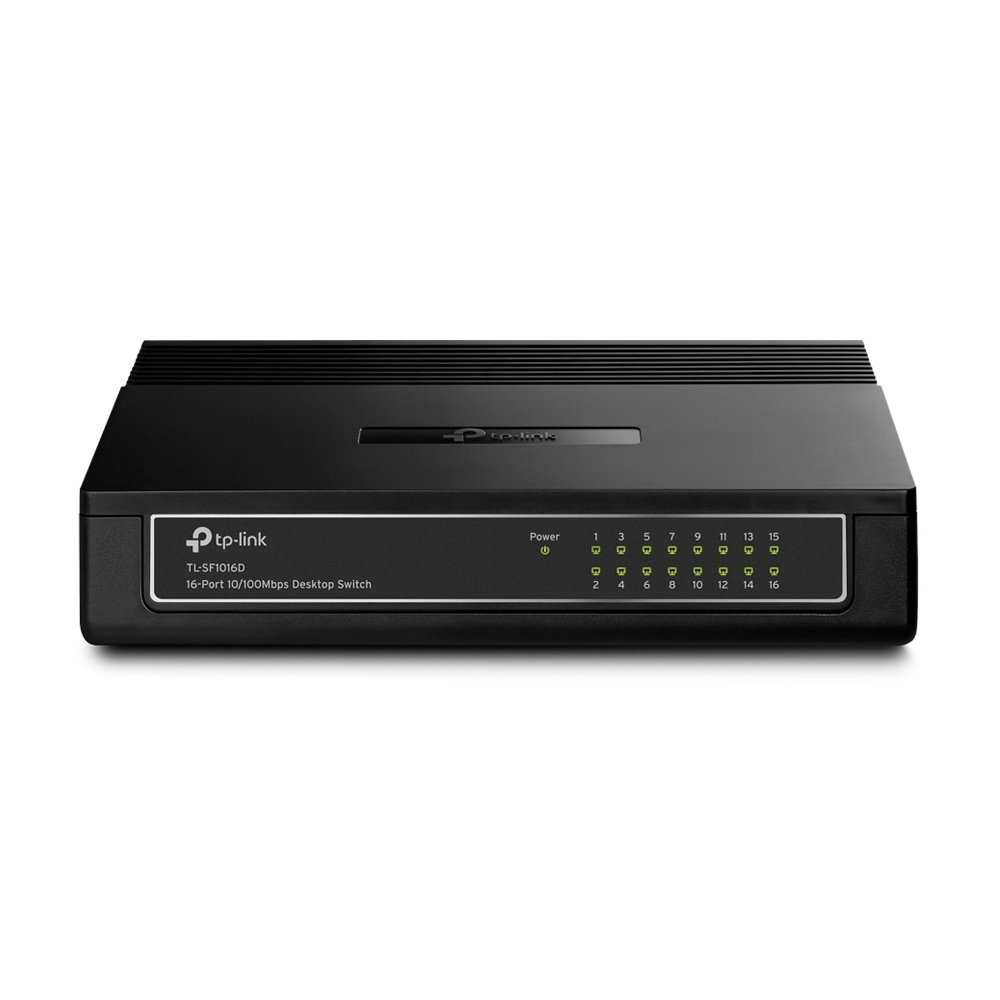

TP-Link 16-Port 10/100Mbps Desktop Switch (TL-SF1016D)

The TP-Link TL-SF1016D is a 16-port 10/100Mbps unmanaged desktop switch designed to provide simple, reliable, and energy-efficient network expansion for home and small office environments. With plug-and-play installation, it requires no configuration and supports automatic speed negotiation and MDI/MDIX detection for seamless connectivity. Its fanless design ensures silent operation, while Green Ethernet technology helps reduce power consumption without compromising performance.

Product Features

16-Port Fast Ethernet Connectivity

Provides 16 auto-negotiating 10/100Mbps RJ45 ports, enabling easy expansion of wired networks for multiple devices such as computers, printers, and IP cameras.

Plug-and-Play Installation

No configuration required. Simply connect your devices and the switch automatically handles setup for instant network availability.

Auto MDI/MDIX Support

Eliminates the need for crossover cables by automatically detecting the cable type on each port, ensuring hassle-free installation.

Energy-Efficient Green Technology

Reduces power consumption based on link status and cable length, helping lower operational costs while maintaining stable performance.

Reliable Data Transfer with Flow Control

Supports IEEE 802.3x flow control for full-duplex mode, ensuring smooth and reliable data transmission.

Silent Fanless Design

Operates without a fan, making it ideal for quiet environments such as offices, classrooms, and home setups.

Flexible Desktop or Wall Mounting

Compact plastic housing allows for both desktop placement and wall-mount installation for flexible deployment.

Product Specifications

• Ports: 16 × 10/100Mbps RJ45 ports
• Auto Negotiation: Supported
• Auto MDI/MDIX: Supported
• Switching Method: Store and forward
• MAC Address Table: 2K entries
• Flow Control: IEEE 802.3x supported
• Power Supply: External power adapter (5.0V DC / 0.6A)
• Maximum Power Consumption: 3.23W (220V/50Hz)
• Maximum Heat Dissipation: 11.01 BTU/h
• Fan: Fanless design
• Enclosure: Plastic housing
• Mounting Options: Desktop or wall-mount
• Dimensions: 200 × 142 × 40 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Certifications: FCC, CE, RoHS
• Package Contents: TL-SF1016D switch, power adapter, user guide
