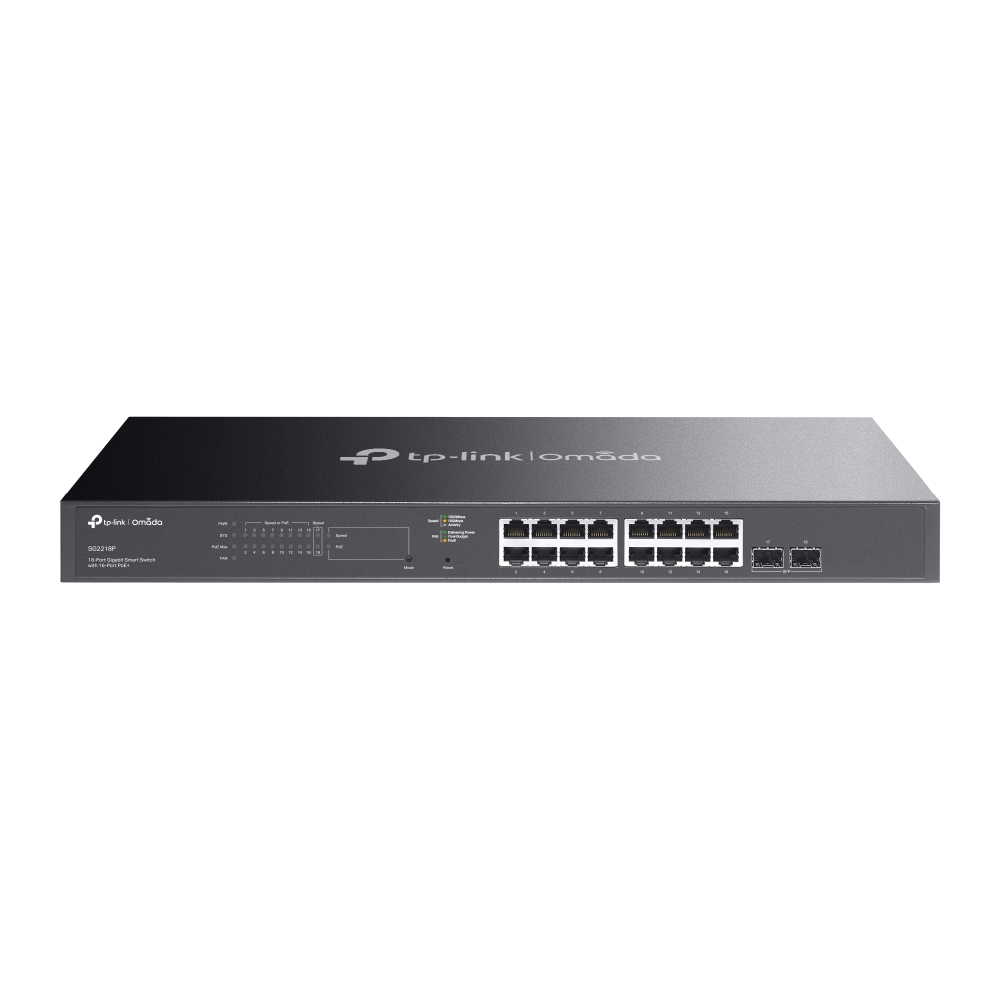

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+ (SG2218P)

The TP-Link Omada SG2218P is a powerful 18-port Gigabit smart switch designed to support growing business networks with high-density PoE+ connectivity and advanced Layer 2+ features. Equipped with 16 PoE+ ports and 2 Gigabit SFP slots, it enables seamless deployment of devices such as access points, IP cameras, and VoIP systems while maintaining reliable uplink performance. With a 150W total PoE budget, centralized cloud management via the Omada platform, and comprehensive security and traffic control features, this switch delivers scalable, efficient, and secure networking for professional environments.

Product Features

High-Density 16-Port PoE+ Connectivity

The SG2218P offers 16 Gigabit PoE+ ports compliant with IEEE 802.3af/at standards, delivering up to 30W per port to power multiple network devices efficiently from a single switch.

Gigabit Uplink with Dual SFP Slots

Two dedicated Gigabit SFP slots provide flexible fiber uplink options, ensuring high-speed and stable connections to core or backbone networks.

Centralized Cloud and Flexible Management

Manage your network easily via Omada cloud-based controllers, web interface, or mobile app, with additional standalone management options including CLI, SNMP, and RMON for full administrative control.

Advanced Layer 2+ Features with Static Routing

The switch supports VLAN segmentation, QoS prioritization, ACL policies, IGMP snooping, and static routing to optimize traffic flow and improve overall network efficiency.

Robust Security and Access Control

Built-in security features such as 802.1X authentication, IP-MAC binding, DHCP snooping, and DoS protection help safeguard your network from unauthorized access and threats.

Durable Rackmount Design for Professional Deployment

The metal casing and rackmountable form factor ensure durability and easy integration into standard network racks, making it suitable for enterprise and structured network environments.

Product Specifications

• Ports: 16 × 10/100/1000 Mbps PoE+ RJ45 ports, 2 × Gigabit SFP slots
• PoE Standard: IEEE 802.3af/at compliant
• PoE Budget: 150W total (up to 30W per port)
• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 26.78 Mpps
• MAC Address Table: 8K entries
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame Support: 9 KB
• Power Supply: 100–240V AC, 50/60Hz
• Power Consumption: Up to 181.4W (with full PoE load)
• Heat Dissipation: Up to 619.06 BTU/hr
• Fan: 1 cooling fan
• Mounting: Rackmount (rackmount kit included)
• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
• VLAN Support: Up to 4,000 VLAN groups (802.1Q, MAC VLAN, Protocol VLAN, Voice VLAN)
• QoS Features: 802.1p/DSCP priority, 8 queues, bandwidth control, storm control
• Routing: Static IPv4/IPv6 routing (up to 32 routes)
• Security Features: 802.1X, IP-MAC-Port binding, ACL (up to 230 entries), DoS protection, port security
• Multicast: IGMP snooping, multicast VLAN registration, up to 511 multicast groups
• Management: Web GUI, CLI (Telnet), SNMP v1/v2c/v3, RMON, Omada SDN cloud/controller support
• IPv6 Support: Full IPv6 routing, ACL, dual-stack operation, multicast and management features
• Certification: CE, FCC, RoHS
• Package Content: SG2218P switch, power cord, installation guide, rackmount kit, rubber feet
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
