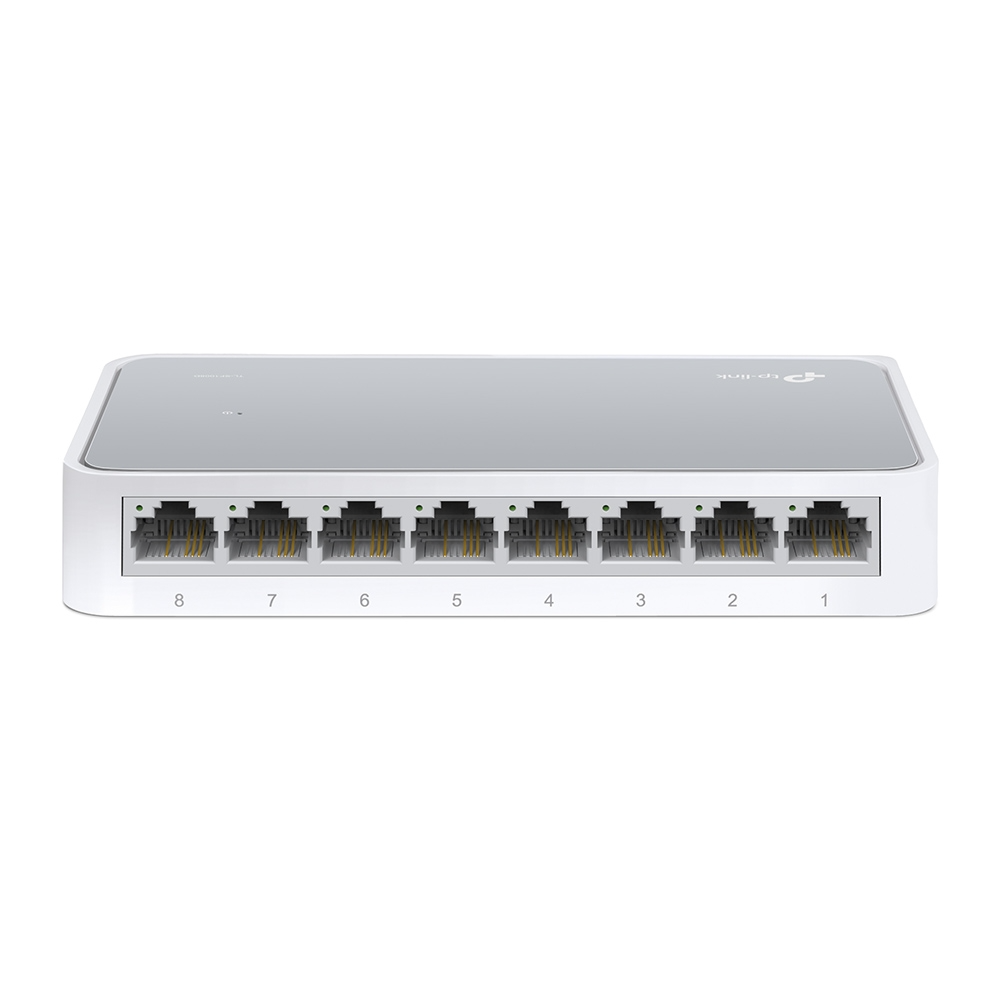

TP-Link 8-Port 10/100Mbps Desktop Network Switch (TL-SF1008D)

The TP-Link TL-SF1008D is a reliable and energy-efficient 8-port 10/100Mbps desktop network switch designed to expand wired networks in homes, offices, and small businesses. Featuring eight auto-negotiation RJ45 ports with Auto MDI/MDIX support, it eliminates the need for crossover cables and manual configuration. Built with Green Ethernet technology and IEEE 802.3x flow control, the TL-SF1008D ensures stable data transmission while reducing power consumption. Its compact, fanless plastic design allows for quiet operation and seamless integration into any workspace.

Product Features

8-Port Fast Ethernet Connectivity

Equipped with eight 10/100Mbps auto-negotiation RJ45 ports, supporting Auto MDI/MDIX for quick and hassle-free wired network expansion.

Green Ethernet Technology

Automatically adjusts power consumption based on link status and cable length, helping reduce energy usage without compromising performance.

Stable Data Transmission

IEEE 802.3x flow control and back pressure mechanisms ensure reliable data transfer and minimize packet loss during heavy network traffic.

Fanless and Compact Design

The silent, fanless desktop design with durable plastic casing makes it ideal for noise-sensitive environments such as offices and home setups.

Plug-and-Play Installation

No configuration is required. Simply connect your devices and power on the switch for instant network connectivity.

Product Specifications

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD
• Interface: 8 × 10/100Mbps Ports with Auto-Negotiation and Auto MDI/MDIX
• Fan Quantity: Fanless
• Power Supply: External Power Adapter (Output: 5.0VDC / 0.6A), Input: 100-240VAC, 50/60Hz
• LED Indicators: Power, 1, 2, 3, 4, 5, 6, 7, 8
• Buffer Size: 768Kb
• Data Rates: 10/100Mbps at Half Duplex, 20/200Mbps at Full Duplex
• Dimensions (W x D x H): 5.3 × 3.1 × 0.9 in (134.5 × 79 × 22.5 mm)
• Max Power Consumption: 2.05W (220V/50Hz)
• Max Heat Dissipation: 6.99 BTU/h
• Advanced Features: Green Technology, 802.3X Flow Control, Back Pressure
• Transmission Method: Store and Forward
• Certification: FCC, CE, RoHS
• Package Content: 8-Port 10/100Mbps Desktop Switch, Power Adapter, Installation Guide
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~60°C (-40°F~140°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
