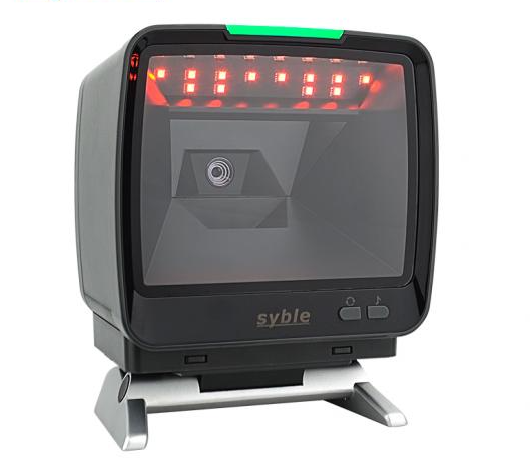

Syble 2D Desktop Barcode Scanner with Metal Base (XB-8809H)

The Syble 2D Desktop Barcode Scanner with Metal Base (XB-8809H) is a high-performance omnidirectional presentation scanner built for fast and reliable barcode capture in demanding environments. Designed for retail POS systems, warehouses, and digital service points, this scanner combines advanced CMOS imaging technology with a sturdy metal base for enhanced stability. It efficiently reads both 1D and 2D barcodes from paper labels and digital screens, making it an ideal solution for high-volume operations that require speed, accuracy, and durability.

Product Features

Omnidirectional High-Speed Scanning

Equipped with a megapixel-grade CMOS sensor and a large scanning window, the device captures barcodes from any angle. It delivers fast scanning speeds of up to 300 scans per second, ensuring smooth operation in high-traffic environments.

Advanced 1D and 2D Barcode Decoding

Supports a wide range of barcode symbologies including QR Code, Data Matrix, PDF417, and traditional 1D formats. It accurately decodes damaged, wrinkled, or low-contrast barcodes from both printed materials and digital screens.

Heavy-Duty Metal Base for Stability

Designed with a robust metal base, the scanner remains stable during continuous use, reducing movement and improving scanning accuracy in busy checkout or workstation setups.

Durable and Shock-Resistant Construction

Built to withstand repeated drops from heights of up to 1.5 meters, the scanner features a rugged housing and IP54-rated protection against dust and splashes.

Plug and Play Connectivity

Offers driver-free USB connectivity for quick installation and seamless integration. Also supports RS232 and USB-COM interfaces for flexible deployment across different systems.

Smart Indicator and Control Features

Includes dual-color LED indicators for clear operational feedback and a top-mounted control button for switching modes, adjusting tones, or limiting scanning to 1D barcodes when needed.

Efficient Power Management

Designed for energy efficiency with low operating power consumption, helping to reduce energy costs and extend device lifespan during continuous operation.

Wide Compatibility Across Systems

Fully compatible with major operating systems including Windows, Linux, macOS, and Android, making it suitable for diverse business environments.

Product Specifications

• Optical Sensor: 1280 x 1024 CMOS (SXGA-W)
• Scan Speed: Up to 300 scans per second
• Motion Tolerance: Up to 4 meters per second
• Minimum Resolution: 4 mil
• Scan Range: 1 to 15 cm (4 mil Code 39), 1 to 33 cm (13 mil UPC), 1 to 28 cm (20 mil QR Code)
• Recognition Angles: Roll, pitch, and skew supported for omnidirectional scanning
• Light Source: LED illumination
• Supported Symbologies:
  • 1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 DataBar
  • 2D: QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Aztec Code, MaxiCode, Han Xin
• Interface: USB (HID, USB-COM), RS232
• Connectivity: Plug and play (driver-free)
• Power Consumption: Approximately 1.65 W (typical), 2.4 W (maximum)
• Environmental Rating: IP54 (dust and splash resistant)
• Drop Resistance: Withstands multiple 1.5 meter drops
• Operating Temperature: Suitable for industrial environments
• Storage Temperature: Wide range support for storage conditions
• Dimensions: Approximately 150 x 97 x 148 mm
• Weight: Approximately 500 to 540 g
• Material: Durable housing with heavy-duty metal base
