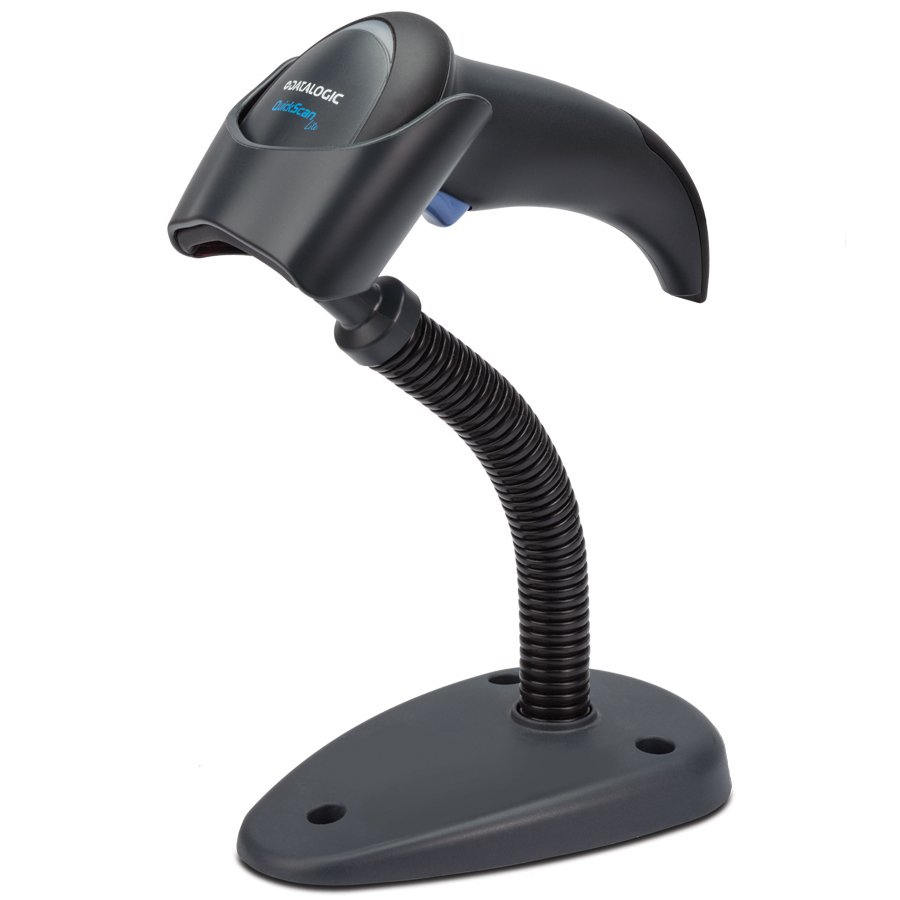

Datalogic QuickScan Lite 1D Linear Imager Barcode Scanner (QW2100)
The Datalogic QuickScan Lite QW2100 is a compact and affordable corded 1D linear imager barcode scanner designed for fast and accurate reading of long, truncated, and common linear barcodes. Built for retail point-of-sale, banking, and light industrial applications, it delivers reliable performance with an ergonomic design and wide scanning angle. Its lightweight construction, high scan rate, and durable build make it an ideal entry-level solution for efficient daily barcode scanning tasks.
Product Features
High-Speed Linear Imaging Performance
Delivers up to 400 scans per second for fast and accurate reading of 1D barcodes in high-volume environments.
Optimized for Long and Truncated Barcodes
Specifically engineered to capture wide and difficult-to-read barcodes commonly found on utility bills, documents, and electronic components.
Green Spot Good-Read Feedback
Features Datalogic’s patented Green Spot technology that provides direct visual confirmation on the barcode for quick and accurate scanning.
Wide Scanning Angle and Field of View
Offers an expanded reading angle and field of view, making it easier to capture barcodes at close range without precise alignment.
Durable Lightweight Design
Built with a compact and lightweight housing while maintaining strong durability for everyday commercial use.
High Ambient Light Tolerance
Performs reliably under bright lighting conditions, including exposure up to 120,000 lux.
Flexible Mounting Options
Compatible with an optional adjustable stand for hands-free scanning or handheld use.
Easy Configuration and Management
Supports Datalogic Aladdin software for simple setup, configuration, and advanced data formatting.
Product Specifications
- Model: QuickScan Lite QW2100
- Technology: 1D linear imager
- Light source: Red LED (610–650 nm)
- Scan rate: Up to 400 reads per second
- Resolution: 0.102 mm (4 mils)
- Field of view: 56° ±2°
- Reading angles: Pitch ±65°, Roll ±45°, Skew ±70°
- Print contrast: Minimum 25%
- Ambient light tolerance: Up to 120,000 lux
- Interfaces: USB or Keyboard Wedge / RS-232 (model dependent)
- Input voltage: 5 VDC ±0.5 V
- Operating current: < 180 mA
- Standby current: < 25 mA
- Dimensions: 17.0 cm x 6.5 cm x 7.0 cm
- Weight: 119 g
- Operating temperature: 0°C to 50°C
- Humidity: 5% to 95% non-condensing
- ESD protection: 16 kV air discharge
- Drop resistance: Up to 1.5 meters
- Sealing rating: IP42
- Configuration software: Datalogic Aladdin
- Stand option: Tiltable collapsible stand (STD-QW20-BK)
- Feedback system: Green Spot visual good-read indicator
