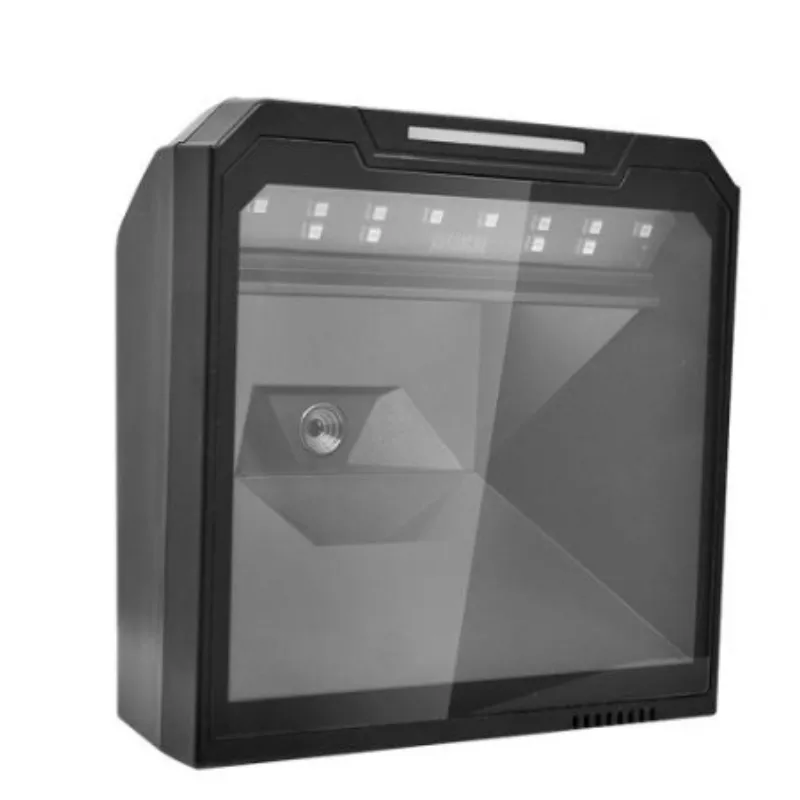

Syble 2D Desktop Barcode Scanner (XB-8808H)

The Syble 2D Desktop Barcode Scanner (XB-8808H) is a high-speed, omnidirectional presentation scanner engineered for hands-free barcode scanning in demanding environments. Designed for retail, logistics, and healthcare applications, it features a powerful CMOS image sensor and advanced decoding technology to accurately read both 1D and 2D barcodes from paper labels and digital screens. With fast scanning performance, durable construction, and seamless plug-and-play connectivity, the XB-8808H enhances operational efficiency in high-volume workflows.

Product Features

High-Speed Omnidirectional Scanning

Equipped with a 1.3MP CMOS image sensor and a 32-bit ARM Cortex-M7 processor, the scanner delivers up to 300 scans per second. Its omnidirectional capability allows fast and accurate barcode capture from any angle, improving efficiency at busy points of sale.

Advanced Barcode Decoding Technology

Powered by Omni-Decode technology, the device can decode over 60 barcode symbologies, including QR codes and PDF417. It performs reliably even with damaged, smudged, or low-contrast barcodes.

Excellent Screen Reading Capability

Optimized to read barcodes from mobile devices, the scanner easily captures e-tickets, digital coupons, and mobile payment codes directly from smartphone screens.

Infrared Auto-Sensing and Dual Mode Operation

Features an infrared sensor that automatically detects when a barcode enters the scanning field. Supports both auto-sensing and continuous scanning modes for flexible operation.

Durable and Industrial-Grade Design

Constructed with robust ABS housing, the scanner is IP54 rated for dust and splash resistance. It is built to withstand repeated drops from heights of up to 1.5 meters, ensuring long-term reliability.

Plug and Play Connectivity

Supports USB connectivity for easy installation without the need for additional drivers. Also compatible with RS232 and keyboard wedge interfaces for integration into various systems.

Wide System Compatibility

Works seamlessly with multiple operating systems including Windows, macOS, Linux, and Android, making it suitable for diverse deployment environments.

Energy Efficient Operation

Includes automatic sleep and wake functionality to reduce power consumption and extend the lifespan of the device.

Product Specifications

• Optical Sensor: 1.3MP CMOS (1280 x 1024 pixels)
• Processor: 32-bit ARM Cortex-M7
• Scan Speed: Up to 300 scans per second (1D: 150 scans per second, 2D: 60 images per second)
• Motion Tolerance: Up to 3.8 meters per second
• Field of View: Horizontal 46.1 degrees, Vertical 30.4 degrees
• Minimum Resolution: 3 mil
• Reading Distance: 1 to 15 cm (5 mil Code 39), 1 to 40 cm (20 mil Code 39)
• Light Source: White LED with soft illumination
• Barcode Support: 1D and 2D symbologies including QR Code and PDF417
• Interface: USB, RS232, Keyboard Wedge
• Connectivity Modes: HID (keyboard emulation), CDC
• Operating Systems: Windows, macOS, Linux, Android
• Power Supply: 5 V DC via USB
• Environmental Rating: IP54 (dust and splash resistant)
• Operating Temperature: -20°C to 60°C
• Drop Resistance: Withstands multiple 1.5 meter drops to concrete
• Material: ABS plastic with UL94 V-0 fire resistance
• Dimensions: Approximately 90 x 100 x 150 mm
• Weight: Approximately 300 g to 576 g depending on configuration
