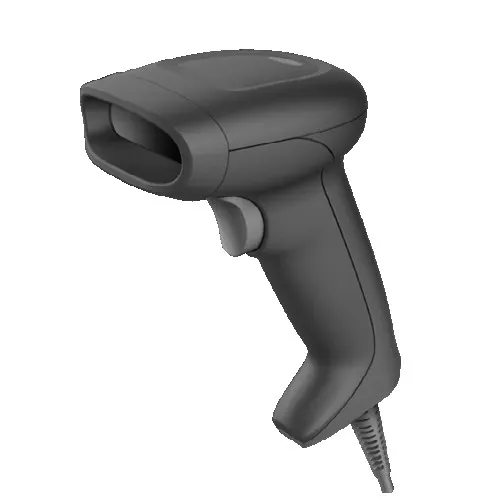

Honeywell HH490 Handheld 2D Area-Imaging Barcode Scanner (HH490-R1-1USB-1-R)

The Honeywell HH490 Handheld 2D Area-Imaging Barcode Scanner is a cost-effective, high-performance scanning solution designed for fast and reliable data capture in retail, point-of-sale, hospitality, healthcare, education, and membership-based environments. Built for commercial use, it delivers efficient 1D and 2D barcode reading with strong motion tolerance and wide usability across different lighting conditions. With its ergonomic gun-style design, corded USB/RS-232 connectivity, and simplified configuration tools, the HH490 is optimized for businesses that require fast deployment, accurate scanning, and low total cost of ownership while improving operational efficiency.

Product Features

High-Speed 1D and 2D Barcode Scanning

The HH490 delivers fast and accurate scanning of both 1D and 2D barcodes, improving transaction speed and operational efficiency in busy commercial environments.

Area-Imaging Scan Technology

Uses advanced area-imaging technology to capture barcodes quickly without precise alignment, enabling intuitive and efficient scanning.

Ergonomic Gun-Style Design

Designed for comfortable daily use, the gun-shaped form factor reduces user fatigue during high-volume scanning operations.

Wide Application Compatibility

Suitable for retail checkout, point-of-sale systems, membership verification, hospital registration, hotel check-in, and educational institutions.

High Motion Tolerance Performance

Supports scanning at motion speeds up to 75 cm/s, allowing fast and accurate reads even in dynamic environments.

High Ambient Light Resistance

Operates effectively in lighting conditions up to 100,000 lux, ensuring reliable performance under direct sunlight or bright indoor lighting.

Easy Deployment and Configuration

Equipped with Honeywell EZ Config tools and POS drivers, simplifying setup and reducing deployment time across large-scale systems.

Corded USB and RS-232 Connectivity

Provides stable wired connectivity via USB or RS-232 interfaces for reliable integration with point-of-sale and enterprise systems.

Wide Depth of Field Scanning Range

Capable of scanning barcodes from 35 mm up to 430 mm, supporting flexible near-range scanning applications.

Backward Compatibility Support

Compatible with existing HH400 accessories, helping businesses reduce upgrade costs and protect existing investments.

Product Specifications

• Model: HH490-R1-1USB-1-R
• Brand: Honeywell
• Product Type: Handheld 2D Area-Imaging Barcode Scanner
• Form Factor: Gun-style handheld scanner
• Scan Technology: 2D Area Imaging
• Supported Barcode Types: 1D and 2D
• Scan Range: 35 mm to 430 mm (13 mil UPC-A)
• Scan Distance: Standard Range (0–1 m)
• Motion Tolerance: 75 cm/s
• Field of View: Area imaging scan pattern
• Brightness Tolerance: 0 to 100,000 lux
• Interface Support: USB, RS-232
• Input Voltage: 4 to 5.5 V DC
• Operating Power: 2 W
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: 0% to 95% non-condensing
• Protection Rating: IP40
• Drop Resistance: 1.2 m drops
• Tumble Resistance: 250 tumbles from 0.5 m
• Dimensions: 72.5 × 125 × 154 mm
