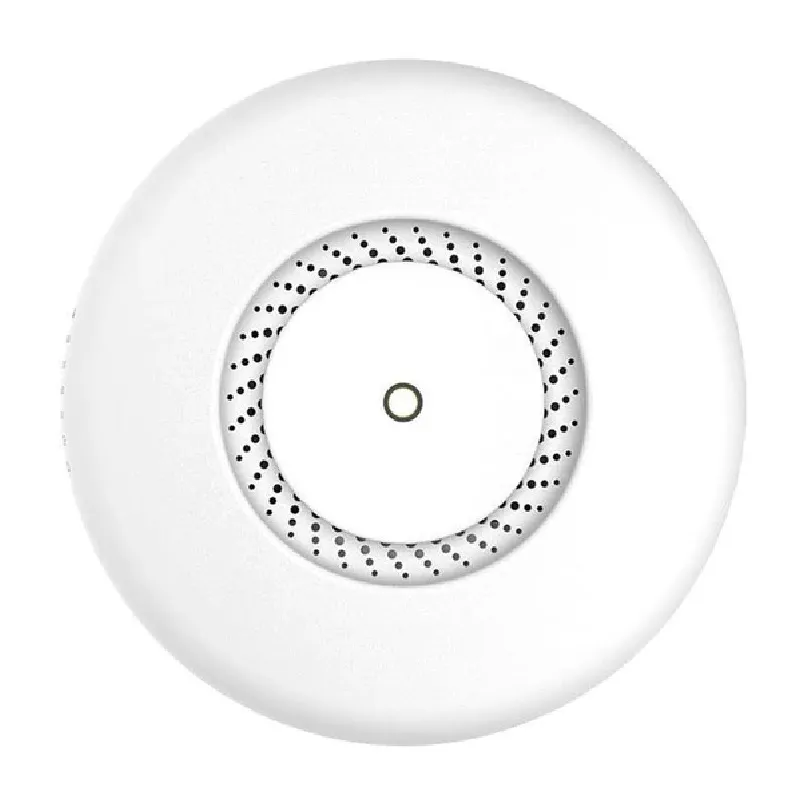

MikroTik RouterBOARD cAP-2nD Ceiling Access Point (RBcAP2nD)

The MikroTik cAP-2nD is a discreet and efficient ceiling-mounted wireless access point designed for seamless integration into environments such as hotels, offices, airports, and shopping centers. Supporting 2.4GHz 802.11b/g/n Wi-Fi with dual-chain technology, this access point delivers stable wireless coverage with up to 300 Mbps data rates. Powered via PoE and managed through MikroTik’s CAPsMAN centralized system, the cAP-2nD simplifies large-scale wireless deployments without requiring a dedicated controller. Its compact design, low power consumption, and complete installation kit make it a reliable and cost-effective solution for professional wireless networking.

Product Features

Ceiling-Mounted Discreet Design

Designed to blend into ceilings, making it ideal for hospitality and commercial environments where aesthetics matter.

Dual-Chain 2.4GHz Wireless

Supports 802.11b/g/n standards with dual-chain technology, delivering stable wireless performance with up to 300 Mbps data rates.

Centralized Management with CAPsMAN

Easily manage multiple access points from a single RouterBOARD device using CAPsMAN, eliminating the need for a separate controller system.

PoE Powered Operation

Supports 802.3af/at PoE input, enabling flexible installation without the need for additional power cabling.

Complete Installation Kit

Includes ceiling and wall mounting accessories, PoE injector, power adapter, screws, and anchors for quick and easy deployment.

Energy Efficient and Silent

Consumes only up to 4 W with passive cooling, ensuring quiet and energy-efficient operation.

Reliable RouterOS Functionality

Runs MikroTik RouterOS Level 4, offering advanced networking features such as firewall, bandwidth management, and wireless configuration.

Product Specifications

• Product Code: RBcAP2nD
• Architecture: MIPSBE
• CPU: QCA9533, 1 core, 650 MHz
• RAM: 64 MB
• Storage: 16 MB FLASH
• RouterOS License: Level 4
• Operating System: RouterOS
• Dimensions: 185 mm diameter, 31 mm height
• Tested Ambient Temperature: -40°C to 70°C
• MTBF: ~100,000 hours at 25°C
• Wireless Standards: 802.11b/g/n (Wi-Fi 4)
• Max Data Rate: 300 Mbps (2.4 GHz)
• Wireless Chains: 2
• Antenna Gain: 2 dBi
• Ethernet Ports: 1 x 10/100 Mbps
• PoE Input: 802.3af/at (11–57 V)
• Max Power Consumption: 4 W
• Cooling Type: Passive
• Mode Button: Yes
• Certifications: CE, FCC, IC, EAC, ROHS
• IP Rating: IP20
