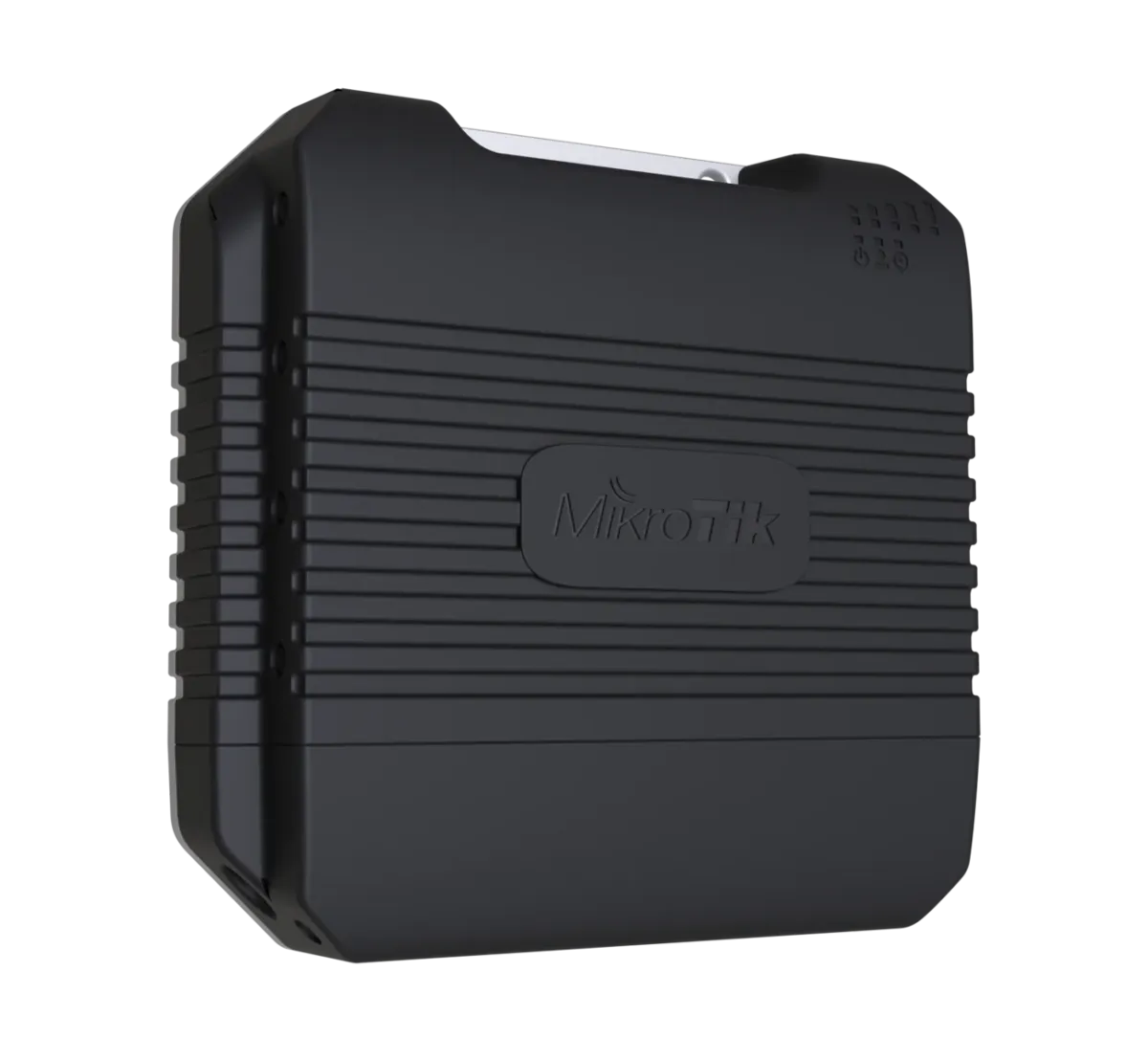

MikroTik LtAP Dual LTE Outdoor Router with GNSS (RBLtAP-2HnD)

The MikroTik LtAP RBLtAP-2HnD is a rugged, weatherproof outdoor wireless router designed for mobile, industrial, and off-grid networking applications. Featuring high-power 2.4GHz Wi-Fi, dual miniPCIe slots for LTE or additional wireless expansion, and built-in GNSS support including GPS, this device is ideal for vehicle tracking, public transport, logistics, and remote deployments. With three Mini-SIM slots for seamless roaming, multiple power input options including automotive and PoE, and a durable IP54-rated enclosure, the LtAP delivers reliable connectivity in extreme environments. Powered by a dual-core CPU and RouterOS Level 4, it offers advanced routing, monitoring, and customization capabilities for professional networking solutions.

Product Features

Rugged Outdoor Design

Built with an IP54-rated enclosure, the LtAP is designed to withstand harsh environments, including extreme temperatures from -40°C to 70°C.

Dual miniPCIe Expansion Slots

Includes two miniPCIe slots for adding LTE modems or a 5GHz wireless interface, enabling flexible network expansion and dual-band connectivity.

Triple SIM Slot Support

Three Mini-SIM slots allow easy switching between mobile networks, ensuring reliable connectivity and cost-effective roaming.

GNSS Tracking Support

Integrated GNSS functionality supports GPS and other positioning systems, making it ideal for real-time vehicle tracking and fleet management.

Multiple Power Options

Supports DC jack, passive PoE input, and automotive power input, offering flexible deployment in vehicles or remote installations.

High-Power 2.4GHz Wireless

Dual-chain 802.11b/g/n Wi-Fi delivers up to 300 Mbps with strong signal coverage for outdoor and mobile environments.

Advanced Connectivity and Ports

Features Gigabit Ethernet, USB port, RS232 serial console, and RouterOS for advanced routing, monitoring, and network management.

Product Specifications

• Product Code: RBLtAP-2HnD
• Architecture: MMIPS
• CPU: MT7621A, 2 cores, 880 MHz, 4 threads
• RAM: 128 MB
• Storage: 16 MB FLASH
• RouterOS License: Level 4
• Operating System: RouterOS
• Tested Ambient Temperature: -40°C to 70°C
• MTBF: ~200,000 hours at 25°C
• DC Inputs: 3 (DC jack 12–30 V, PoE-IN 12–30 V, Automotive 12–27 V)
• Max Power Consumption: 24 W (9 W without attachments)
• Cooling Type: Passive
• Wireless Standards: 802.11b/g/n (Wi-Fi 4)
• Max Data Rate: 300 Mbps (2.4 GHz)
• Wireless Chains: 2
• Antenna Gain: 2.5 dBi
• Ethernet Ports: 1 x Gigabit Ethernet
• SIM Slots: 3 x Mini SIM
• MiniPCIe Slots: 2
• USB Ports: 1 (Type-A, max 1A)
• Serial Console Port: RS232
• GNSS Support: GPS
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Certifications: CE, FCC, IC, E-MARK, EAC, ROHS
• IP Rating: IP54
