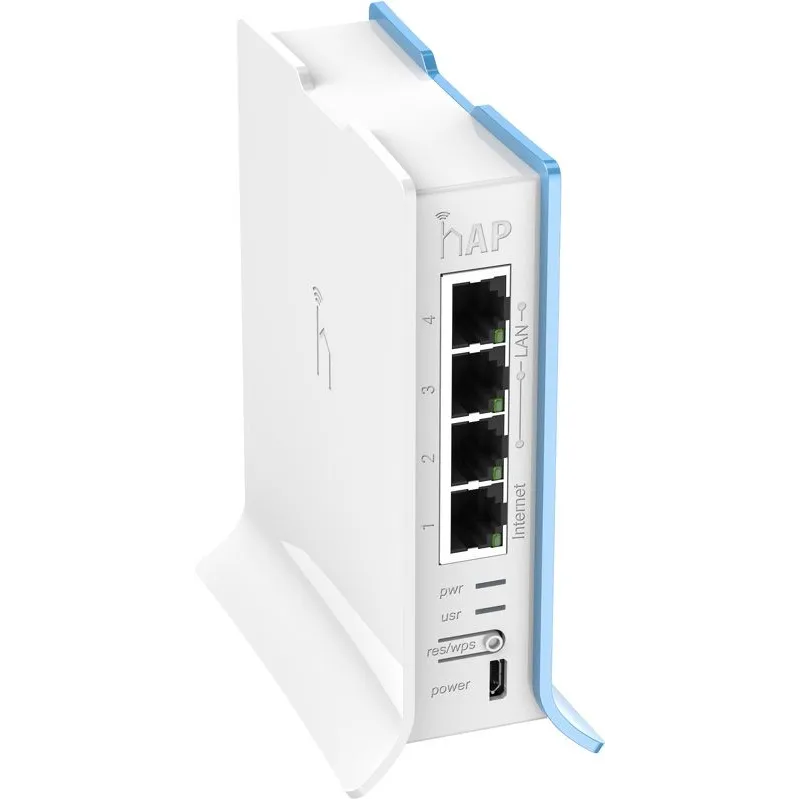

MikroTik hAP Lite TC Wireless Access Point (RB941-2nD-TC)

The MikroTik hAP Lite TC (RB941-2nD-TC) is a compact, high-performance wireless access point designed for small homes, apartments, or offices. Featuring four Fast Ethernet ports and dual-chain 2.4 GHz Wi-Fi, it provides reliable connectivity with a maximum data rate of 300 Mbps. Its colorful enclosure and button-triggered WPS make it easy for guests to connect without entering complicated passwords. The device runs RouterOS with a Level 4 license, offering advanced features like firewall, bandwidth management, user access control, and centralized CAPsMAN management for scalable networks. Powered via MicroUSB and consuming only 3.5 W, the hAP Lite TC is energy-efficient, compact, and easy to deploy.

Product Features

Dual-Chain 2.4 GHz Wi-Fi

Supports Wi-Fi 4 (802.11b/g/n) with a maximum throughput of 300 Mbps and 1.5 dBi antenna gain, ensuring stable wireless connections across your home or office.

Easy Guest Access with WPS

Button-triggered WPS allows quick and secure connection for guests without entering passwords. Can also join a centralized CAPsMAN network at the push of a button.

RouterOS with Level 4 License

Provides full access to MikroTik’s RouterOS features, including firewall rules, bandwidth shaping, user access control, and routing capabilities.

Compact and Energy-Efficient Design

With a small footprint and passive cooling, the hAP Lite TC consumes only 3.5 W, making it ideal for desktop or wall-mounted deployments in small spaces.

Product Specifications

• Product Code: RB941-2nD-TC
• CPU: QCA9533, 1-core, 650 MHz
• Architecture: SMIPS
• RAM: 32 MB
• Storage: 16 MB FLASH
• RouterOS License: Level 4
• Switch Chip: QCA9533-BL3A
• Operating System: RouterOS
• MTBF: ~100,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 70°C
• Ethernet Ports: 4 x 10/100 Mbps
• Wireless Standard: 802.11b/g/n (Wi-Fi 4)
• Wireless Frequency: 2.4 GHz
• Number of Chains: 2
• Max Wireless Data Rate: 300 Mbps
• Antenna Gain: 1.5 dBi
• Transmit Power (dBm): 16–22 depending on rate
• Receive Sensitivity (dBm): -71 to -96 depending on rate
• Power Input: 5V via MicroUSB
• Max Power Consumption: 3.5 W
• Cooling Type: Passive
• Form Factor: Small desktop AP
• Throughput Performance:
  • Bridging (Fast Path): up to 394.7 Mbps
  • Routing (Fast Path): up to 394.7 Mbps
• Certifications: CE, FCC
