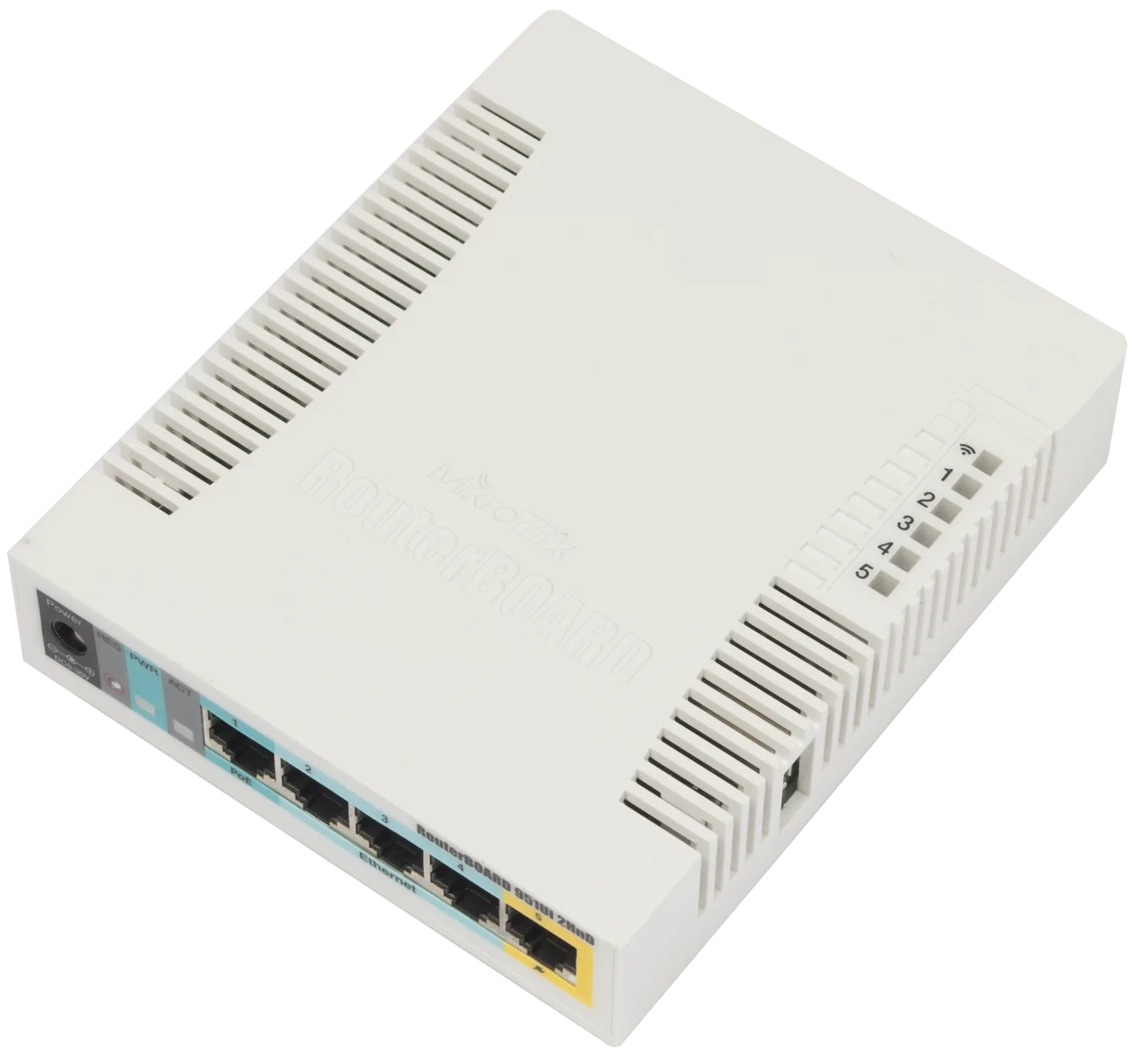

MikroTik 2.4GHz Access Point with 5 Ethernet Ports (RB951Ui-2HnD)

The MikroTik RB951Ui-2HnD is a compact and high-performance wireless access point designed for small offices and home networks. Featuring five 10/100 Mbps Ethernet ports and built-in PoE output on port 5, it allows you to power other PoE-capable devices directly. Equipped with a 600 MHz AR9344 CPU, 128 MB RAM, and RouterOS Level 4 license, this access point delivers stable Wi-Fi 4 (802.11b/g/n) connectivity at up to 300 Mbps. Its high-power 2.4 GHz wireless AP with dual antennas ensures reliable coverage, while the device’s USB port allows for flexible peripheral support. The RB951Ui-2HnD is easy to deploy, energy-efficient, and ideal for SOHO (Small Office/Home Office) networking environments.

Product Features

High-Power 2.4 GHz Wireless

Supports Wi-Fi 4 (802.11b/g/n) with a maximum data rate of 300 Mbps and dual-chain design for stable and fast wireless connections.

PoE Output on Port 5

Provides passive PoE output to power compatible devices, with a maximum current of 500 mA, reducing cable clutter and simplifying network deployment.

RouterOS Level 4 License

Offers full access to MikroTik’s RouterOS features, including firewall, bandwidth management, routing, and advanced user control.

Compact and Flexible Design

Small form factor with passive cooling and multiple powering options (DC jack or PoE-IN), making it suitable for desktops, shelves, or wall mounting.

Product Specifications

• Product Code: RB951Ui-2HnD
• CPU: AR9344, single-core, 600 MHz
• Architecture: MIPSBE
• RAM: 128 MB
• Storage: 128 MB NAND
• RouterOS License: Level 4
• Dimensions: 113 x 138 x 29 mm
• MTBF: ~100,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C
• Ethernet Ports: 5 x 10/100 Mbps
• Wireless Standard: 802.11b/g/n (Wi-Fi 4)
• Wireless Frequency: 2.4 GHz
• Number of Chains: 2
• Max Wireless Data Rate: 300 Mbps
• Antenna Gain: 2.5 dBi
• Transmit Power (dBm): 23–30 depending on rate
• Receive Sensitivity (dBm): -78 to -96 depending on rate
• USB Ports: 1 x USB type A (with power reset)
• PoE Output: Port 5, passive, 500 mA max
• PoE Input: Passive, 8–30 V DC
• DC Input Voltage: 8–30 V
• Max Power Consumption: 24 W (7 W without attachments)
• Cooling Type: Passive
• Certifications: CE, FCC, IC, EAC, RoHS
• IP Rating: IP20
