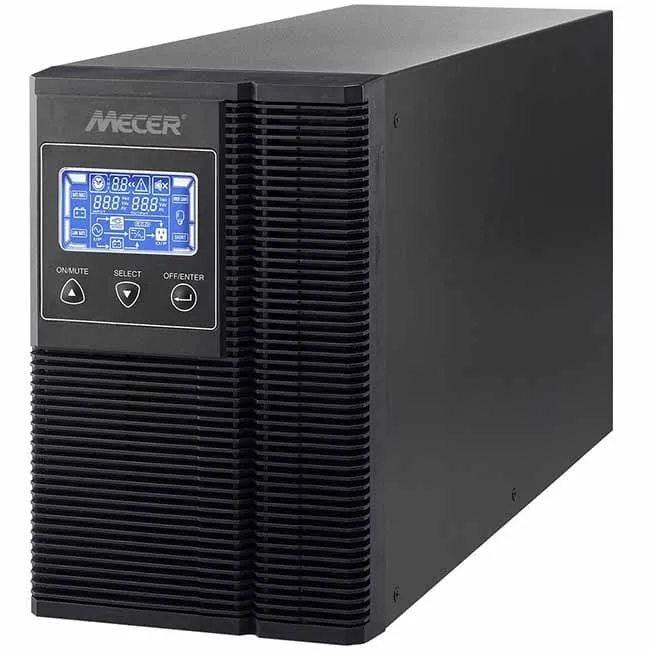

Mecer 2000VA/1800W Smart Online Tower UPS (ME-2000-WPTU)

The Mecer ME-2000-WPTU is a 2000VA / 1800W Smart Online Tower UPS designed to deliver continuous, clean power for mission-critical equipment. Using True Double-Conversion technology, it provides zero transfer time and a pure sine wave output, ensuring maximum protection for servers, medical devices, and networking systems. With advanced monitoring, wide voltage tolerance, and intelligent protection features, this UPS guarantees reliable performance in demanding environments such as offices, data centers, and healthcare facilities.

Product Features

True Double-Conversion Technology

Continuously converts AC to DC and back to AC, delivering stable and clean power while isolating connected equipment from voltage fluctuations and electrical noise.

Zero Transfer Time

Provides instantaneous switching to battery mode with no delay, ensuring uninterrupted operation for sensitive electronics.

Pure Sine Wave Output

Ensures compatibility with all types of equipment, including servers, medical devices, and high-end networking hardware.

Wide Input Voltage Range

Operates efficiently within a 110–300 VAC range, handling unstable power conditions without draining the battery.

Smart Monitoring and Communication

Features an LCD display for real-time monitoring of voltage, load, and battery status. Includes USB and RS-232 ports, with an optional SNMP slot for remote management.

Advanced Protection Systems

Offers comprehensive protection against overloads, short circuits, surges, and EMI/RFI interference to safeguard connected devices.

Energy-Efficient Operating Modes

Includes ECO Mode for reduced power consumption and Converter Mode for frequency conversion between 50Hz and 60Hz.

Product Specifications

• Capacity: 2000VA / 1800W (some variants rated at 1600W)
• Topology: True Online Double-Conversion
• Input Voltage Range: 110–300 VAC
• Output Voltage: Selectable 200 / 208 / 220 / 230 / 240 VAC
• Voltage Regulation (Battery Mode): ±1%
• Output Waveform: Pure Sine Wave
• Transfer Time: 0 ms (AC to Battery)
• Frequency Range: 40–70 Hz (Auto-sensing)
• Input Power Factor: ≥0.99
• Efficiency: ~89% (AC Mode), ~87% (Battery Mode)
• Harmonic Distortion: ≤3% THD (Linear Load), ≤6% THD (Non-linear Load)
• Battery Configuration: 4 × 12V / 9Ah Sealed Lead-Acid
• Backup Time: Approximately 10 minutes at full load, 10–15 minutes at half load
• Recharge Time: 4 hours to 90% capacity
• Charging Current: 1.0 A maximum
• Dimensions (D x W x H): 397 × 145 × 220 mm
• Net Weight: Approximately 17 kg
• Noise Level: Less than 50 dB at 1 meter
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20–90% RH (non-condensing)
• Communication Ports: USB, RS-232, optional SNMP slot
• Operating Modes: ECO Mode, Converter Mode
• Compatibility: Generator compatible
