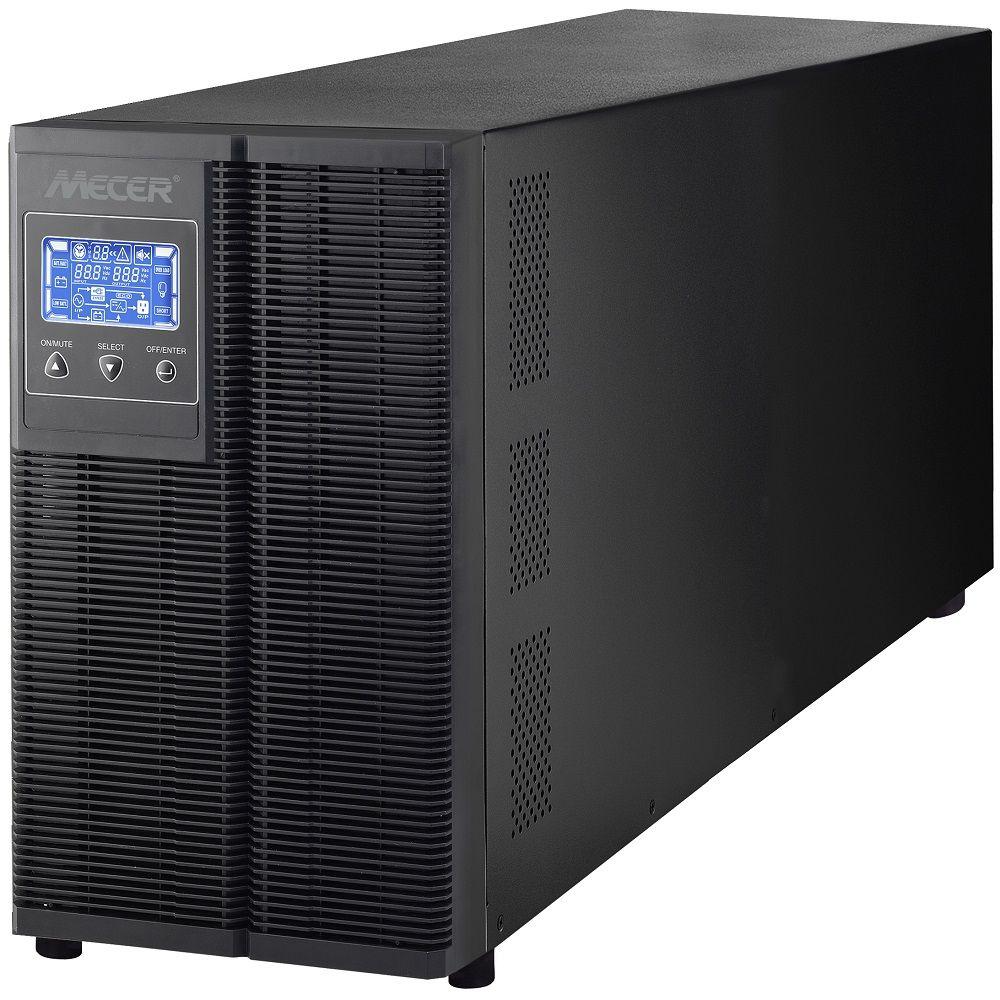

Mecer 3000VA/2400W Smart Online UPS (ME-3000-WPTU)

The Mecer ME-3000-WPTU is a 3000VA / 2400W Smart Online UPS designed for mission-critical systems such as servers, medical equipment, and sensitive IT infrastructure. Utilizing True Double-Conversion technology, it delivers a stable pure sine wave output with zero transfer time, ensuring uninterrupted operation during power outages or fluctuations. With high capacity, wide input voltage tolerance, and intelligent monitoring, this UPS is ideal for data centers, medical facilities, and professional studios requiring reliable, continuous power.

Product Features

True Double-Conversion Technology

Continuously converts AC to DC and back to AC, providing clean, stable power that isolates connected equipment from voltage spikes, frequency changes, and electrical noise.

Zero Transfer Time

Switches instantly to battery mode during outages, maintaining uninterrupted operation for sensitive systems and preventing data loss or equipment damage.

High Capacity

Supports up to 2400W, making it suitable for multiple high-demand devices, including servers, network storage systems, and critical medical equipment.

Wide Input Voltage Range

Handles unstable grid conditions from 110V to 300V without depleting the battery, ensuring reliable performance even in areas with frequent voltage fluctuations.

Smart Management and Connectivity

Features an LCD panel for real-time monitoring of battery, load, and input/output voltage. Equipped with USB, RS-232, and an optional SNMP/AS-400 slot for remote network management and software-controlled automated shutdowns.

Advanced Protection

Provides comprehensive safeguards against surges, overloads, short circuits, and deep battery discharge, ensuring maximum protection for connected devices.

Energy-Efficient ECO Mode

Reduces energy consumption during stable grid conditions, while Converter Mode allows operation with specific frequency requirements (50Hz or 60Hz).

Product Specifications

• Capacity: 3000VA / 2400W
• Input Voltage Range: 110–300 VAC
• Input Power Factor: ≥0.99 at 100% load
• Output Voltage: Selectable 208 / 220 / 230 / 240 VAC
• Voltage Regulation (Battery Mode): ±1%
• Output Waveform: Pure Sine Wave
• Harmonic Distortion: ≤3% (linear load), ≤5% (non-linear load)
• Current Crest Ratio: 3:1
• Transfer Time: AC to Battery: 0 ms; Inverter to Bypass: 4 ms typical
• Battery System: 6 × 12V / 9Ah sealed lead-acid, hot-swappable
• Recharge Time: Approximately 4 hours to 90% capacity
• Runtime: ~15 minutes at full load, ~40 minutes at half load
• Charging Current: Adjustable 1.0 A or 2.0 A
• Efficiency: AC Mode: 90%; Battery Mode: 88%
• Operating Modes: ECO Mode, Converter Mode
• Dimensions (D x W x H): 421 × 190 × 318 mm (Tower form factor)
• Weight: 27.6–28.8 kg
• Noise Level: <50 dB at 1 meter
• Operating Temperature: 0°C – 40°C
• Communication Ports: USB, RS-232, optional SNMP/AS-400 card
• OS Support: Windows, Linux, Unix, macOS
• LCD Panel: Displays UPS status, load/battery levels, input/output voltage, and fault codes
