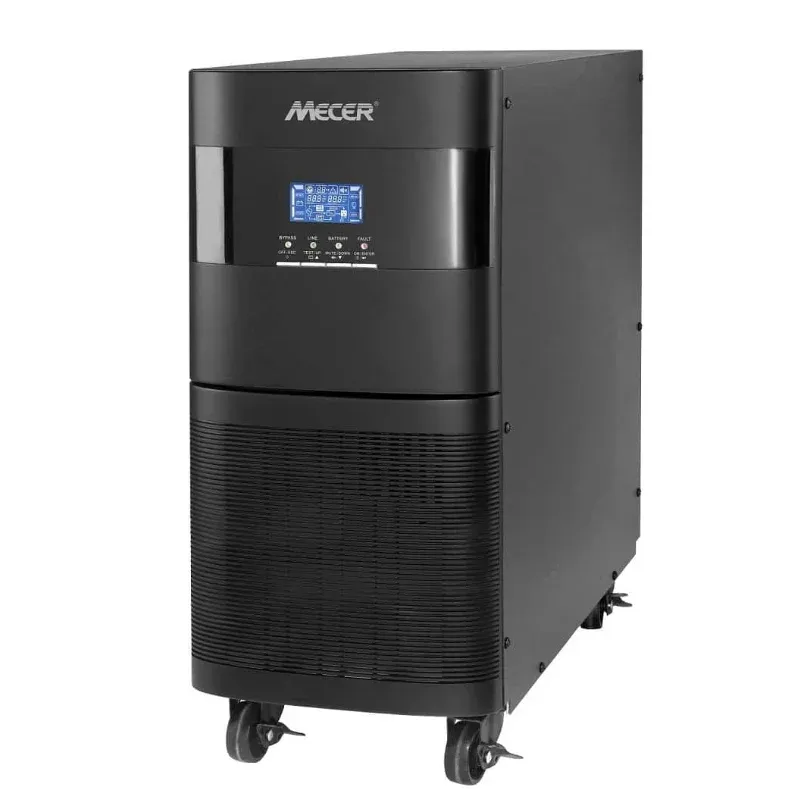

Mecer Winner Pro 6000VA On-Line Tower Smart UPS (ME-6000-WPTU)

The Mecer Winner Pro 6000VA On-Line Tower Smart UPS (ME-6000-WPTU) is a high-capacity power backup solution engineered for mission-critical environments such as data centers, servers, and telecommunications systems. Utilizing True Online Double-Conversion technology, it delivers continuous, clean pure sine wave power with zero transfer time, ensuring uninterrupted operation during power outages and voltage fluctuations. With advanced monitoring, high efficiency, and scalable battery configuration, this UPS is ideal for demanding business and industrial applications.

Product Features

True Online Double-Conversion Technology

Continuously converts incoming AC power to DC and back to AC, delivering stable and clean energy while protecting equipment from surges, noise, and voltage instability.

Zero Transfer Time

Provides instantaneous switching between mains and battery power, ensuring uninterrupted operation for critical systems.

High Power Capacity

Delivers up to 6000VA / 4800W, making it suitable for high-load environments including servers, data centers, and industrial systems.

Pure Sine Wave Output

Ensures compatibility with sensitive electronic equipment by providing a stable and distortion-free power output.

Smart Monitoring and Communication

Features a comprehensive LCD display for real-time system status, including load levels, battery health, and voltage readings. Includes USB and RS-232 ports with an optional SNMP slot for remote management.

Advanced Protection and Safety

Equipped with Emergency Power Off (EPO), surge protection, overload protection, and Automatic Voltage Regulation (AVR) to safeguard connected equipment.

Energy-Efficient Operation

Supports ECO Mode for improved efficiency during stable power conditions and Converter Mode for frequency conversion between 50Hz and 60Hz.

Product Specifications

• Capacity: 6000VA / 4800W
• Topology: True Online Double-Conversion
• Output Power Factor: 0.8–0.9 (depending on revision)
• Input Power Factor: ≥0.99 at full load
• Input Voltage Range: 110–300 VAC at 50% load, 176–300 VAC at 100% load
• Output Voltage: Selectable 208 / 220 / 230 / 240 VAC
• Output Waveform: Pure Sine Wave
• Transfer Time: 0 ms (AC to Battery and Inverter to Bypass)
• Efficiency: Up to 92% in AC Mode, up to 96% in ECO Mode
• Input Frequency: 46–54 Hz or 56–64 Hz (Auto-sensing)
• Harmonic Distortion: ≤3% THD (Linear Load), ≤5% THD (Non-linear Load)
• Current Crest Ratio: 3:1
• Battery Configuration: 16 × 12V / 9Ah Sealed Lead-Acid (expandable to 20 batteries)
• Backup Time: Approximately 10–15 minutes at full load
• Recharge Time: 7–9 hours to 90% capacity
• Charging Voltage: 218.4 VDC ±1%
• Charging Current: Adjustable 1.0 A or 2.0 A
• Dimensions (D x W x H): 369 × 190 × 688 mm
• Net Weight: Approximately 61 kg
• Noise Level: Less than 55 dB at 1 meter
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 0–95% RH (non-condensing)
• Communication Ports: USB, RS-232, optional SNMP slot
• Safety Features: Emergency Power Off (EPO), surge protection, overload protection
• Operating Modes: ECO Mode, Converter Mode
• Installation: Requires professional hardwire installation
