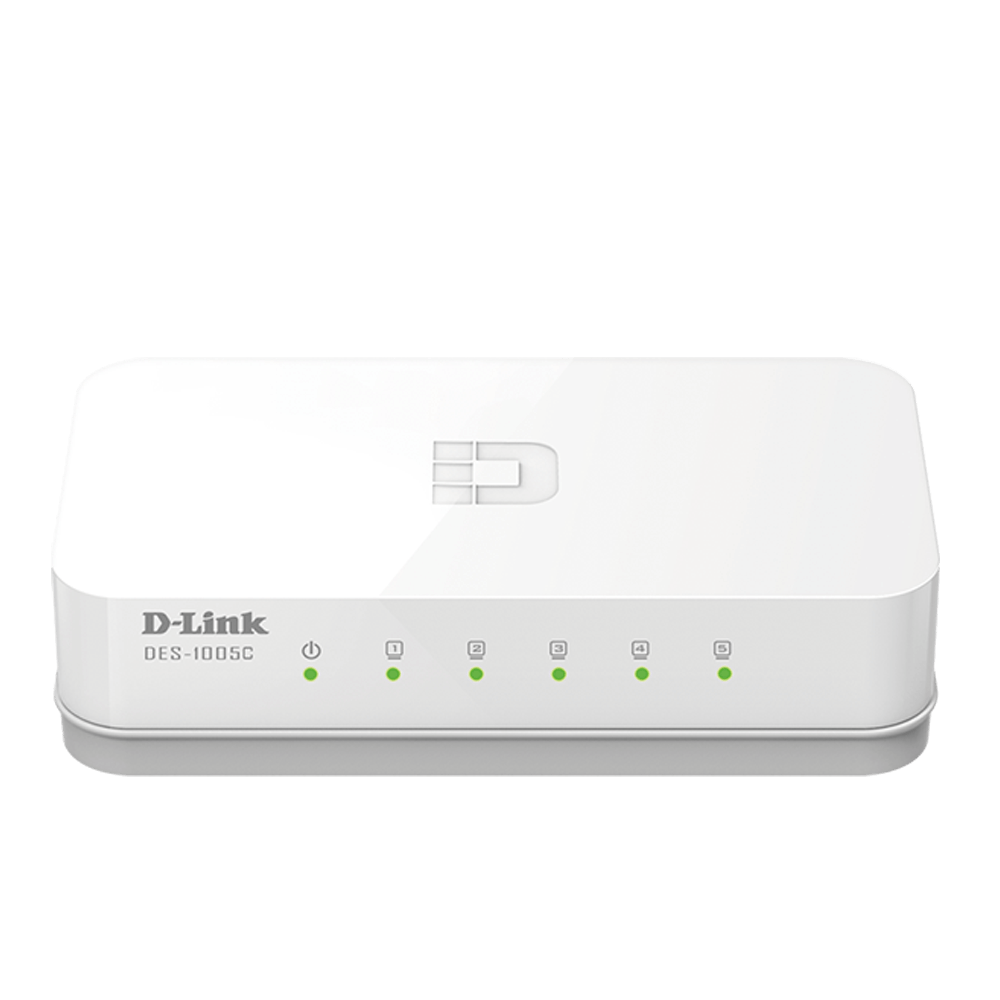

D-Link 5 Port 10/100Base-T Unmanaged Switch (DES-1005C/B)

The D-Link DES-1005C/B 5 Port 10/100Base-T Unmanaged Switch is a compact and energy-efficient networking solution designed for seamless connectivity in home and small office environments. Built for plug-and-play simplicity, this Fast Ethernet switch allows users to instantly expand their wired network without configuration. With reliable performance, silent operation, and intelligent power-saving technology, it delivers stable data transmission while minimizing energy consumption, making it ideal for everyday networking needs.

Product Features

Plug-and-Play Convenience

The switch requires no setup or configuration. Simply connect your devices, and it automatically detects and adjusts speeds for optimal performance, making it perfect for non-technical users.

Energy-Efficient Design

Equipped with IEEE 802.3az Energy Efficient Ethernet, the device reduces power consumption by placing inactive ports into standby mode and adjusting power usage based on cable length.

Silent Fanless Operation

The fanless design ensures completely silent performance, making it suitable for quiet environments such as offices, study rooms, or bedrooms.

Reliable Data Transmission

With IEEE 802.3x flow control and back pressure support, the switch minimizes packet loss and ensures smooth, stable data transfer even during heavy network traffic.

Compact and Durable Build

Its lightweight and compact design allows easy placement on desktops or tight spaces, while the sturdy casing ensures durability for long-term use.

Intelligent Traffic Handling

Features like head-of-line blocking prevention and store-and-forward switching improve overall network efficiency and prevent congestion from affecting performance.

Product Specifications

• 5 x 10/100 Mbps Fast Ethernet RJ-45 ports with Auto MDI/MDIX
• Switching capacity: 1 Gbps non-blocking fabric
• Forwarding rate: 148,800 packets per second per port (100 Mbps)
• Data transfer rate: Up to 200 Mbps in full-duplex mode
• MAC address table: Supports up to 2,000 entries
• RAM buffer: 96 KB shared memory
• Jumbo frame support: Up to 2,048 bytes
• Network standards: IEEE 802.3, 802.3u, 802.3x, 802.3az
• Forwarding method: Store-and-forward switching
• Power input: 5V DC, 0.55A
• Power consumption: Maximum 0.784 W, standby 0.4 W
• Heat dissipation: 0.406 BTU per hour
• Dimensions: 88 x 48 x 21.45 mm
• Weight: 43.4 grams
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10% to 90% non-condensing
• LED indicators: Power, Link, Activity, and Speed per port
• Construction: Durable plastic casing
• Mean time between failures (MTBF): 1,785,631 hours
