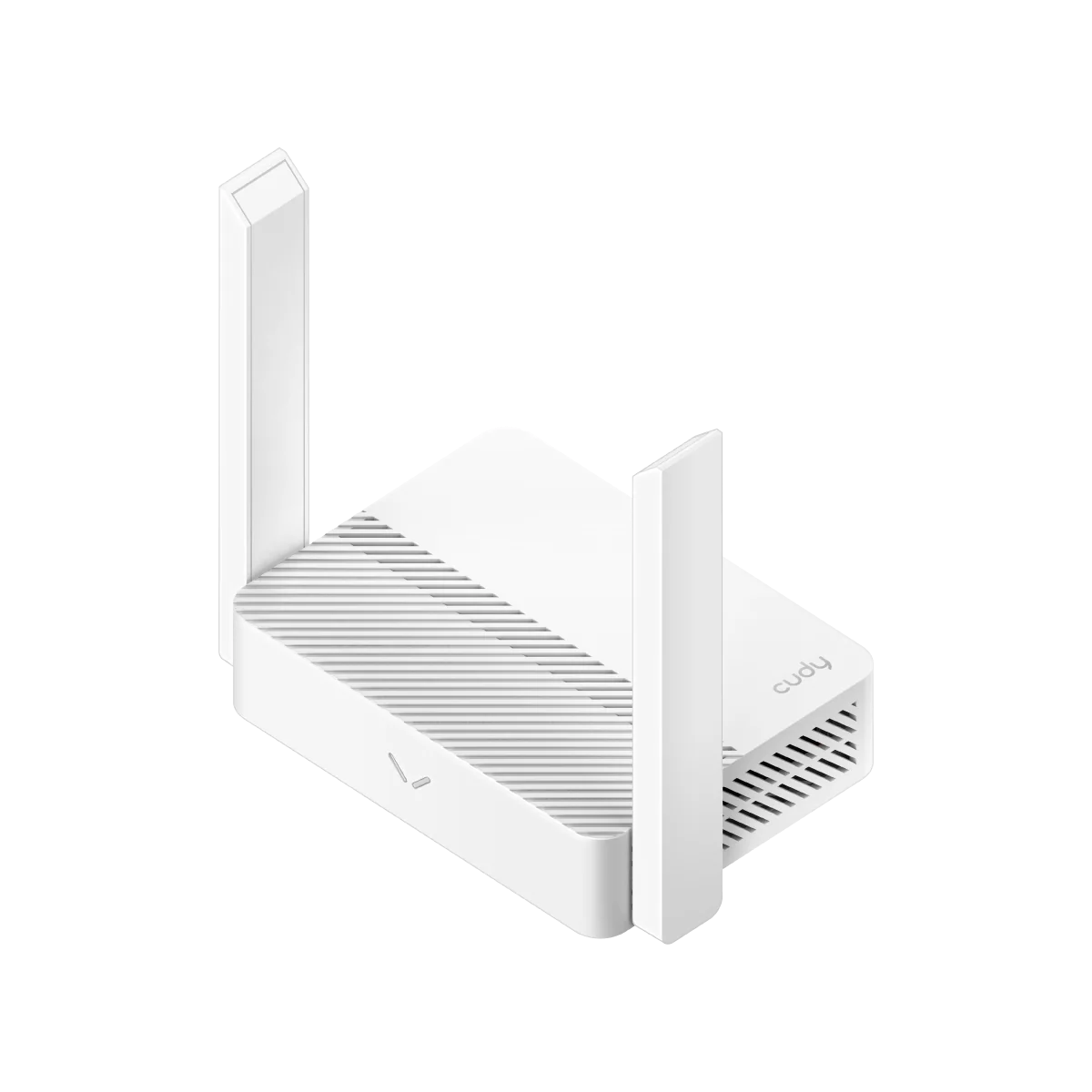

Cudy 300 Mbps Multi-Mode Wi-Fi Router (CUDY WR300)

The Cudy WR300 is a versatile 300 Mbps Wi-Fi router designed for home and small office networking, offering stable wireless performance, multiple operating modes, and advanced network control features. Built on Wi-Fi 4 technology, it delivers reliable 2.4 GHz connectivity suitable for browsing, video streaming, and everyday internet use. With support for Mesh networking, VPN clients, and multiple WAN modes, the WR300 provides flexible deployment options for different network environments. Its compact design, app-based management, and security-focused features make it a practical and user-friendly solution for modern connectivity needs.

Product Features

High-Speed 300 Mbps Wireless Performance

The router delivers up to 300 Mbps wireless speed on the 2.4 GHz band, ensuring smooth browsing, video streaming, and stable everyday connectivity.

Multi-Mode Networking Flexibility

Supports Router, Access Point, Range Extender, WISP, Client, and Mesh modes, allowing flexible configuration for different networking environments.

Cudy Mesh Technology Support

Enables seamless mesh networking with wireless or wired backhaul to extend coverage and eliminate dead zones across larger spaces.

Built-In VPN Client Support

Includes support for WireGuard, PPTP, and L2TP VPN protocols, allowing secure remote access and encrypted internet connections.

Advanced Parental and Device Controls

Offers per-device management features such as internet scheduling, pause controls, web filtering, and usage monitoring for better network control.

Strong Network Security Protection

Equipped with SPI firewall, DoS protection, and multiple passthrough options to safeguard the network from unauthorized access and threats.

App-Based Smart Management

Managed through the Cudy App or web interface, enabling easy setup, remote control, and real-time network monitoring.

Product Specifications

• Wireless Standard: Wi-Fi 4 (802.11n)
• Wi-Fi Speed: Up to 300 Mbps (2.4 GHz)
• CPU: 580 MHz single-core MIPS24KEC
• Memory: 64 MB DDR2 RAM
• Flash Storage: 8 MB NOR
• Antennas: 2 × fixed internal antennas
• Wi-Fi Streams: 2 spatial streams
• Coverage Area: Up to 90 m² (950 ft²) under optimal conditions
• Maximum Range: Up to 130 m in open space
• Ethernet Ports: 4 × 10/100 Mbps RJ45 ports (1 WAN, 3 LAN)
• WAN Support: DHCP, Static IP, PPPoE, PPTP, L2TP
• Security Protocols: WPA, WPA2, WPA3
• VPN Support: WireGuard, PPTP, L2TP
• Firewall Features: SPI firewall, DoS protection, PING blocking
• Power Supply: 5V DC, 1A
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity Range: 10% to 90% non-condensing
• Installation Type: Desktop placement
• Dimensions: 118 × 80 × 27.5 mm
• Weight: 120 g
• Certifications: CE, FCC
• Management Interface: Web UI and Cudy App
• Network Features: QoS, VLAN support, IPTV support, DHCP server, port forwarding, UPnP
• Mesh Support: Cudy Mesh with wired and wireless backhaul
• IPv6 Support: SLAAC, DHCPv6, static IPv6, passthrough, DS-Lite, MAP-E
• Diagnostic Tools: Ping, traceroute, system logs, NSLookup
• Languages Supported: Multiple including English, French, German, Spanish, Chinese, and more
