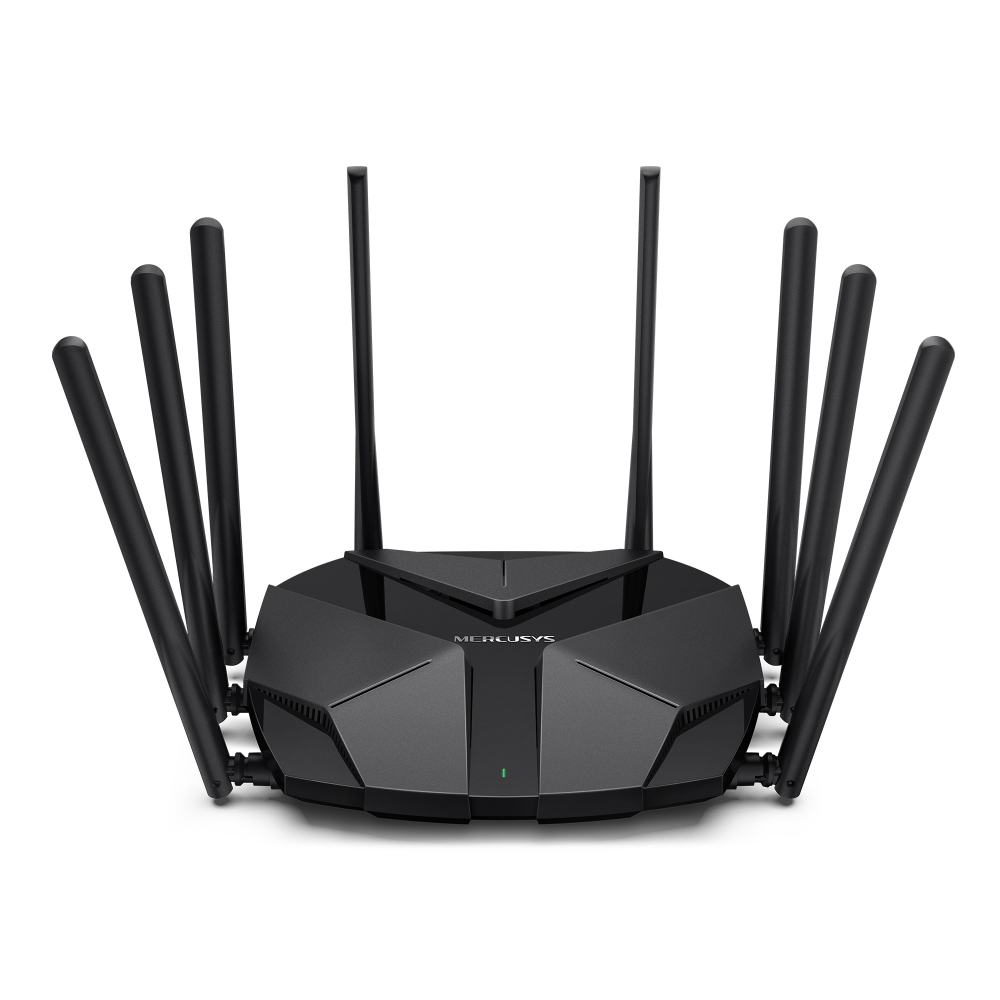

MERCUSYS AX6000 8-Stream Wi-Fi 6 Router (TL-MR90X)

Experience ultra-fast and reliable home networking with the MERCUSYS AX6000 8-Stream Wi-Fi 6 Router (TL-MR90X). With speeds up to 4804 Mbps on the 5 GHz band and 1148 Mbps on the 2.4 GHz band, this router is ideal for streaming 8K content, online gaming, and handling multiple devices at once. Equipped with 8 high-gain antennas, MU-MIMO, OFDMA technology, and Beamforming, it delivers broad coverage and strong, stable connections throughout your home. Advanced WPA3 security, smart band selection, and eco-friendly power-saving features make this router both safe and efficient.

Product Features

Optimal Wi-Fi 6 Speeds

Delivers high-speed Wi-Fi 6 connectivity for faster browsing, streaming, and downloading across all devices.

2.5 Gbps Multi-Gig Port

Breaks through the 1G bottleneck to maximize internet speed for high-demand devices.

Connect More Devices

Supports 4×4 MU-MIMO and OFDMA to reduce congestion and maintain high throughput for multiple devices simultaneously.

Extensive Wi-Fi Coverage

Eight multi-directional high-gain antennas with Beamforming ensure strong and stable Wi-Fi signals throughout your home.

Enhanced Security

WPA3 encryption protects your network from unauthorized access and potential threats.

Gigabit Wired Connections

Includes multiple high-speed wired ports for peak performance with wired devices.

Eco-Friendly Power Saving

Target Wake Time (TWT) reduces power consumption for connected mobile and IoT devices.

Reduced Wi-Fi Interference

BSS Coloring minimizes interference from neighboring networks, improving transmission efficiency.

Smart Connect Technology

Automatically selects the optimal band for each device, ensuring the best connection quality.

Product Specifications

• Wireless Standards: IEEE 802.11ax/ac/a/b/g/n
• Wi-Fi Speeds: 5 GHz – 4804 Mbps, 2.4 GHz – 1148 Mbps
• Reception Sensitivity: 2.4 GHz – 11g 6 Mbps: -97 dBm, 11g 54 Mbps: -79 dBm, 11n HT40 MCS7: -74 dBm, 11n HT20 MCS7: -77 dBm; 5 GHz – 11a 6 Mbps: -97 dBm, 11a 54 Mbps: -79 dBm, 11ac VHT20 MCS8: -75 dBm, 11ac VHT40 MCS9: -71 dBm, 11ac VHT80 MCS9: -67 dBm, 11ax VHT20 MCS11: -67 dBm, 11ax VHT40 MCS11: -64 dBm, 11ax VHT80 MCS11: -61 dBm
• Transmission Power: 2.4 GHz < 20 dBm, 5 GHz < 23 dBm (band 1/2), < 30 dBm (band 3)
• Wireless Security: WPA/WPA2-Personal, WPA2/WPA3-Personal
• Wireless Functions: Enable/Disable Wireless Radio, WMM
• Dimensions: 209 × 172.2 × 42.4 mm (8.2 × 6.8 × 1.6 in)
• Interfaces: 1× 2.5 Gbps WAN/LAN, 1× Gigabit WAN/LAN, 2× Gigabit LAN
• Antennas: 8× Fixed Omni-Directional
• Buttons: Reset/WPS
• WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• Management: Access Control, Local Management, Remote Management
• NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
• Firewall Security: SPI Firewall, IP & MAC Address Binding
• Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
• DHCP: Server, DHCP Client List
• VPN Server: OpenVPN, PPTP
• Default Network Services: Web Server (Port 80/443 TCP), DHCP Server (Port 67 UDP), DNS (Port 53 TCP/UDP), App Management (Ports 20001 TCP, 20002 UDP)
• Package Contents: AX6000 8-Stream Wi-Fi 6 Router MR90X, Power Adapter, Quick Installation Guide, RJ45 Ethernet Cable
• Operating Environment: Temperature 0°C–40°C (32°F–104°F), Humidity 10%–90% Non-Condensing
• Storage Environment: Humidity 5%–90% Non-Condensing
