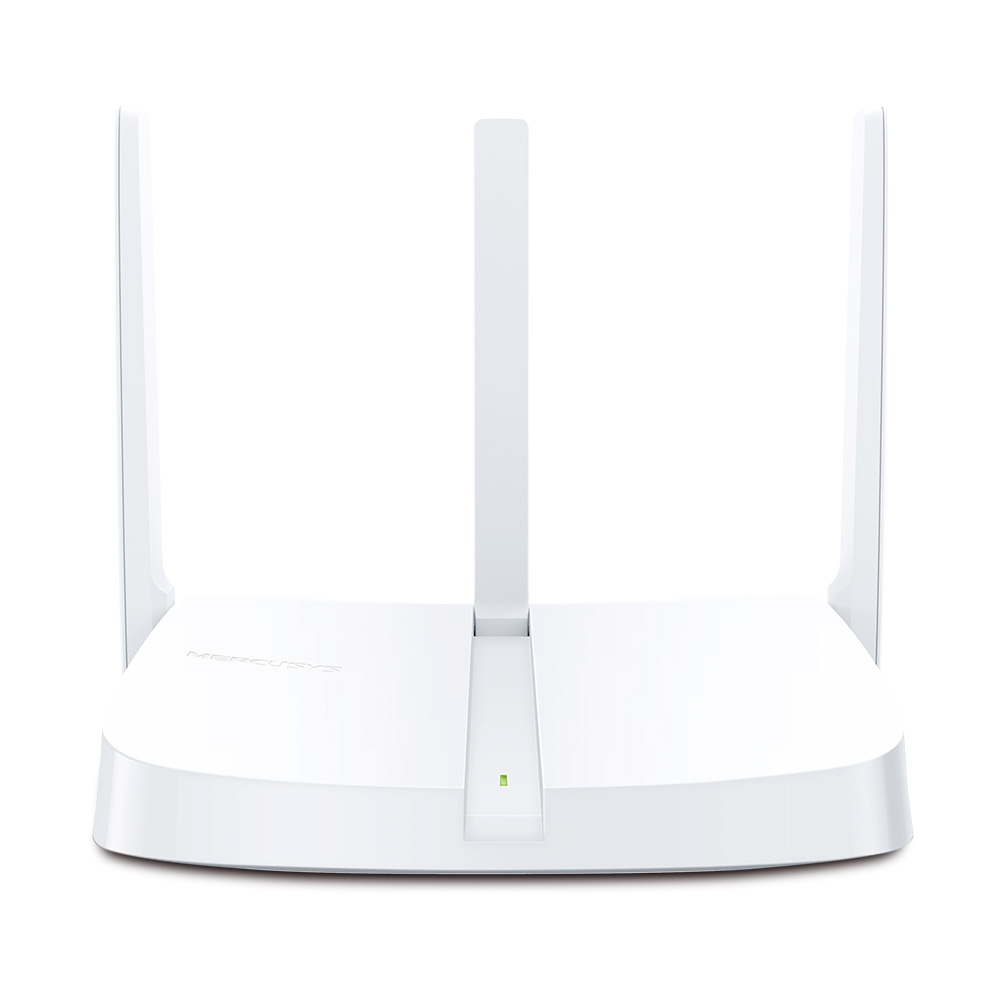

MERCUSYS 300Mbps Wireless Router (TL-MW306R)
The MERCUSYS MW306R is a reliable 300 Mbps Multi-Mode Wireless N router designed to deliver stable WiFi connectivity for everyday home networking. Operating on the 2.4 GHz band with IEEE 802.11 b/g/n support, it provides consistent wireless performance for browsing, streaming, and online activities. Equipped with three high-gain external antennas, multiple operating modes, parental controls, IPTV support, and IPv6 compatibility, the MW306R offers flexible and secure connectivity for modern households.
Product Features
300 Mbps Wireless N Speed
Delivers wireless speeds of up to 300 Mbps on the 2.4 GHz band, ensuring smooth web browsing, HD streaming, and online communication for multiple connected devices.
Enhanced Coverage with Three High-Gain Antennas
Features three fixed high-gain external antennas that strengthen signal transmission and extend WiFi coverage to every corner of your home.
Multi-Mode Operation
Supports four working modes in one device, offering flexible deployment options for various networking scenarios including router, access point, range extender, and WISP modes.
Easy Web-Based Setup
Intuitive web interface guides you through installation within minutes, allowing quick and hassle-free configuration without technical expertise.
Active Parental Controls
Establish responsible internet access policies by controlling online activity and managing device permissions to protect children and maintain safe browsing environments.
IPTV and IPv6 Support
Compatible with IPTV services and supports IPv6, ensuring future-ready networking and compatibility with modern internet service providers.
Secure Wireless Encryption
Supports WPA-PSK and WPA2-PSK encryption standards to protect your wireless network from unauthorized access.
Product Specifications
- Wireless Standards: IEEE 802.11 b/g/n
- Frequency: 2.4–2.5 GHz
- WiFi Speeds:
- 11n: Up to 300 Mbps (Dynamic)
- 11g: Up to 54 Mbps (Dynamic)
- 11b: Up to 11 Mbps (Dynamic)
- Transmission Power: <20 dBm (EIRP)
- Reception Sensitivity:
- 270M: -70 dBm at 10% PER
- 130M: -72 dBm at 10% PER
- 54M: -74 dBm at 10% PER
- 11M: -87 dBm at 10% PER
- 6M: -92 dBm at 10% PER
- 1M: -94 dBm at 10% PER
- Wireless Security: WPA-PSK, WPA2-PSK
- Antenna Type: 3 × Fixed External Antennas
- Ethernet Ports: 1 × 10/100 Mbps WAN Port, 3 × 10/100 Mbps LAN Ports
- Button: RESET/WPS Button
- External Power Supply: 5 V / 0.6 A
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Guest Network: 2.4 GHz Guest Network
- DHCP: DHCP Server, DHCP Client List
- Port Forwarding: Virtual Server, UPnP, DMZ
- Firewall Security: IP and MAC Address Binding
- Management: Access Control, Local Management, Remote Management
- Dimensions (W × D × H): 5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Operating Humidity: 10% to 90% Non-Condensing
- Package Contents: MW306R Router, Power Adapter, Ethernet Cable, Quick Installation Guide
