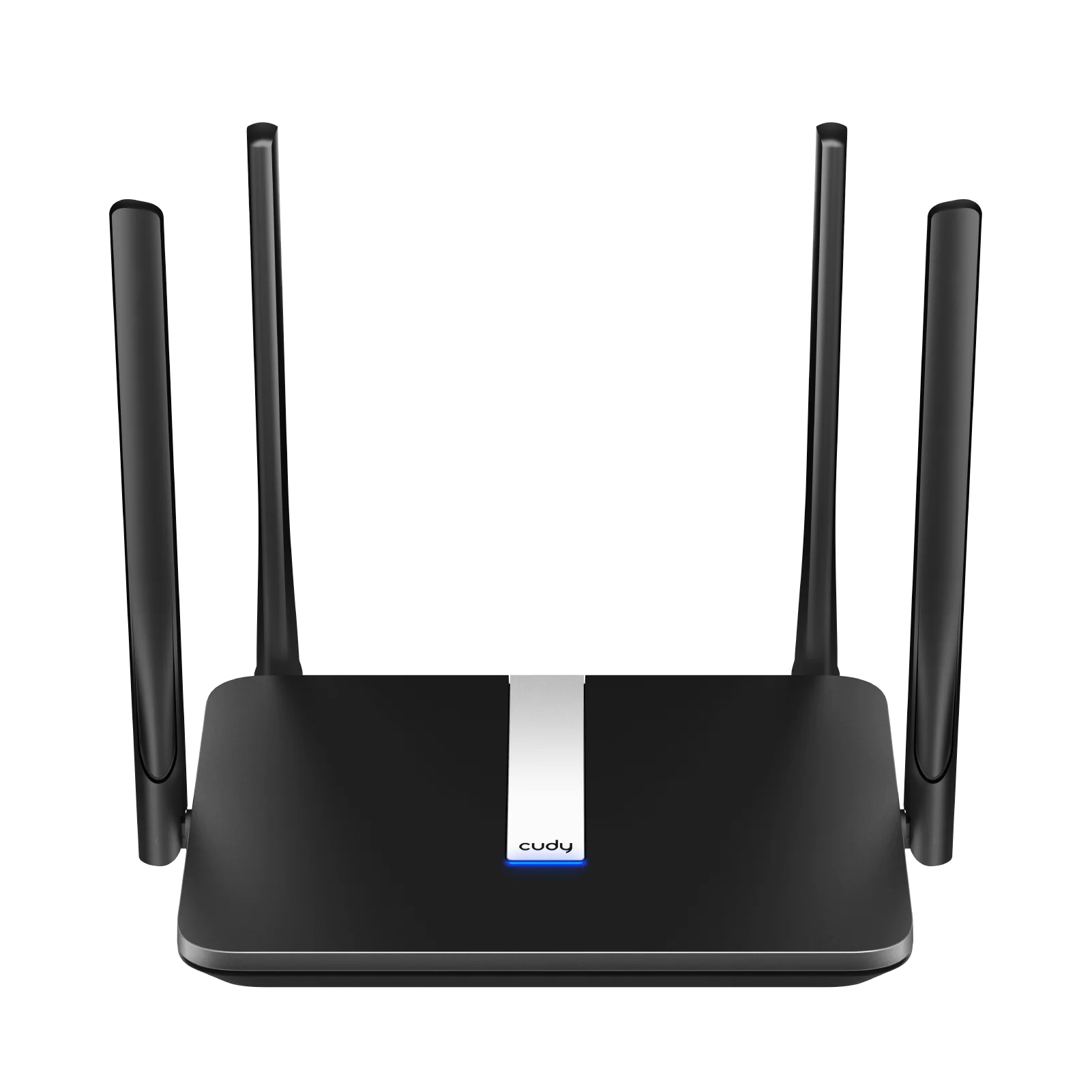

Cudy AC1200 4G LTE Mesh Wi-Fi Router (CUDY LT500)

The Cudy LT500 AC1200 4G LTE Mesh Wi-Fi Router is a versatile networking solution designed to deliver fast and reliable internet using both cellular and wired connections. Featuring a built-in nano SIM slot and 4G Cat.4 support, it provides download speeds of up to 150 Mbps, making it ideal for homes, offices, remote sites, and mobile setups. With dual-band Wi-Fi 5 delivering combined speeds of up to 1200 Mbps, along with mesh capability, VPN support, and cloud-based app management, the LT500 ensures seamless connectivity, wide coverage, and secure network control for modern users.

Product Features

High-Speed 4G LTE Connectivity

Supports 4G Cat.4 technology with download speeds up to 150 Mbps, ensuring stable internet access without fixed broadband.

AC1200 Dual-Band Wi-Fi Performance

Delivers 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, providing smooth streaming, gaming, and browsing experiences.

Built-In Nano SIM Slot

Allows direct cellular connectivity without external modems, making it ideal for flexible and mobile network setups.

Cudy Mesh Networking Support

Functions as a Mesh main router, supporting both wired and wireless backhaul for seamless whole-home or office coverage.

Advanced VPN Server and Client

Supports WireGuard, OpenVPN, IPsec, Zerotier, PPTP, and L2TP for secure remote access and encrypted communication.

Flexible Multi-Mode Operation

Supports Cellular Router, Wi-Fi Router, and WISP modes, adapting easily to different networking environments.

Smart App and Cloud Management

Offers remote monitoring and configuration via the Cudy App and cloud control for easy network management.

Reliable Network Security Features

Includes WPA/WPA2/WPA3 encryption, SPI firewall, DoS protection, and DNS security for enhanced network safety.

Product Specifications

• Cellular Technology: 4G LTE Cat.4
• Maximum Download Speed: Up to 150 Mbps
• Maximum Upload Speed: Up to 50 Mbps
• SIM Type: Nano SIM slot
• Supported Bands: Region-specific LTE-FDD, LTE-TDD, and WCDMA bands
• Wi-Fi Standard: Wi-Fi 5 (802.11ac)
• Wi-Fi Speed: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
• CPU: 580 MHz single-core MIPS24KEC
• Memory: 128 MB DDR2 RAM
• Flash Storage: 16 MB NOR
• Antennas: 2 × fixed cellular antennas, 2 × internal Wi-Fi antennas
• Ethernet Ports: 4 × 10/100 Mbps RJ45 (1 configurable WAN/LAN, 3 LAN)
• WAN Support: DHCP, Static IP, PPPoE
• Mesh Support: Cudy Mesh main router
• Backhaul Support: Wired and wireless backhaul
• Security Protocols: WPA, WPA2, WPA3
• VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
• VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
• Firewall Features: SPI firewall, DoS protection, block PING
• Network Features: QoS, VLAN support, IPTV support, IGMP snooping, port forwarding, UPnP, DMZ
• IPv6 Support: SLAAC, DHCPv6, static IPv6, DS-Lite, MAP-E, 464XLAT
• DNS Features: DNS over TLS, manual DNS, custom DNS providers
• Power Supply: 12V DC, 1A
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity Range: 10% to 90% non-condensing
• Dimensions: 204.8 × 133.2 × 38.3 mm
• Weight: 308 g
• Installation Type: Desktop or wall-mountable
• Certifications: FCC, CE
• Management Options: Web UI, Cudy App, cloud control, TR069 remote management
• Diagnostic Tools: Ping, traceroute, NSLookup, system logs
• Additional Features: Parental controls, device management, Wi-Fi scheduling, Wake-on-LAN, timed reboot, backup and restore
• Internet Failover: WAN, WISP, and Cellular priority switching
• Package Contents: LT500 router, power adapter, Ethernet cable, installation guide
