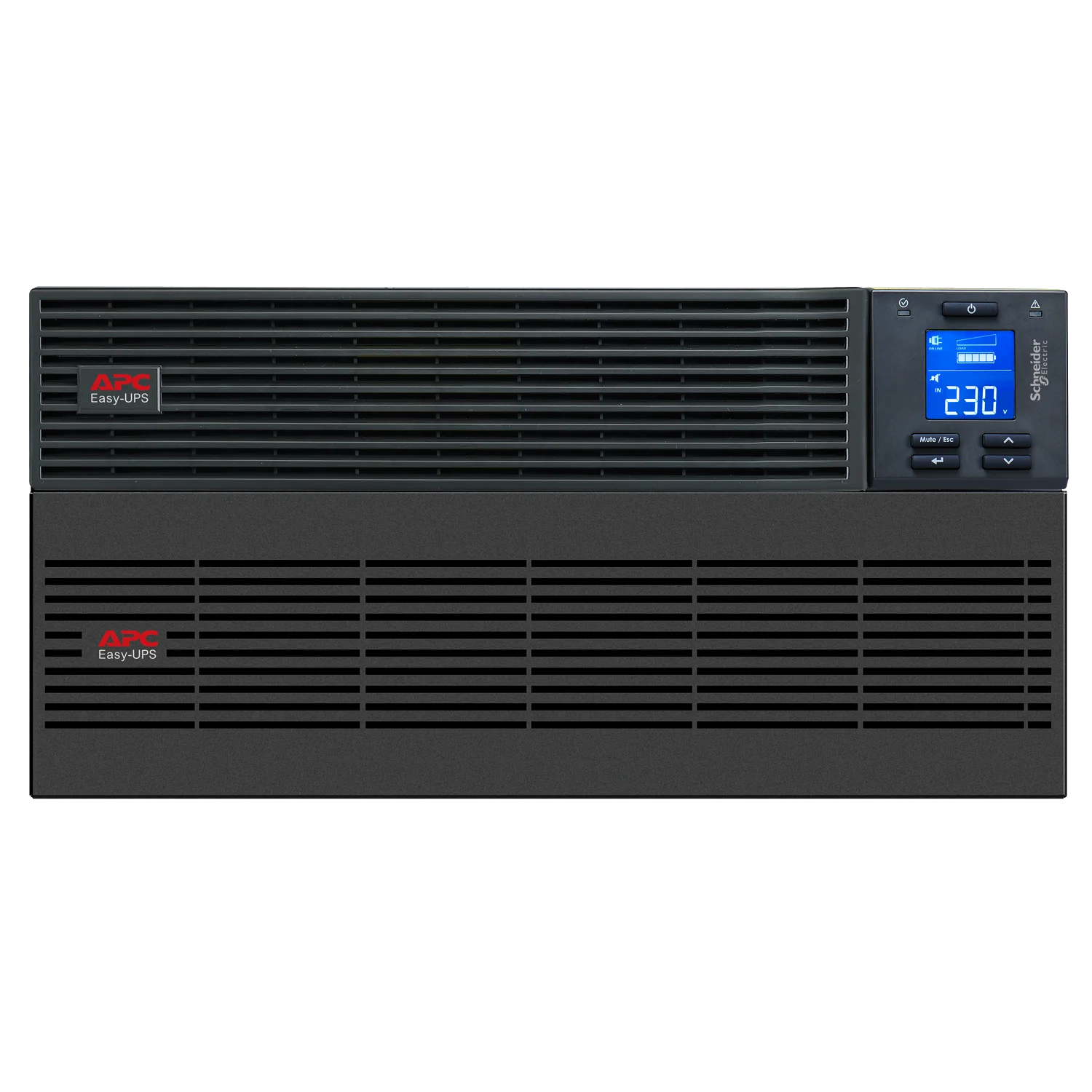

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V (SRV10KRILRK)

The APC Easy UPS On-Line 10kVA/10kW Rackmount 5U (SRV10KRILRK) is a high-efficiency, double-conversion on-line UPS designed to protect critical IT and network equipment. Delivering 10,000VA/10,000W of pure sine wave power, it ensures uninterrupted operation for servers, storage units, voice/data networks, and light industrial applications. Featuring a multifunction LCD interface, an Intelligent Card Slot, and support for up to four external battery packs (SRV240RLBP-9A), this UPS provides real-time status information and scalable runtime for extended power backup. Its 5U rackmount design with included rail kit offers easy installation and optimal integration in professional IT environments.

Product Features

Double-Conversion On-Line Power

Provides continuous, clean power with zero transfer time to safeguard sensitive electronics from voltage fluctuations, outages, and surges.

High Capacity and Efficiency

Delivers 10kVA/10kW with high operating efficiency (94% at full load), optimizing energy consumption while maintaining maximum protection.

Rackmount 5U Design

Compact 5U form factor with included rail kit allows seamless installation in server racks, supporting both horizontal and front-mounting preferences.

Intelligent Monitoring

Equipped with a multifunction LCD console for real-time UPS status, alerts, and configuration, providing IT administrators with detailed operational insights.

Scalable Runtime

Supports up to four external battery packs (SRV240RLBP-9A) for extended backup time during prolonged power interruptions.

Flexible Connectivity

Hard-wired 3-wire (1P+N+E) output for 1 zone ensures secure connection to critical devices while maintaining reliability and stability.

Built-In Protection

Internal automatic/manual bypass, 1% harmonic distortion, crest factor of 3:1, and high efficiency provide robust and stable output for sensitive loads.

User Alerts

Audible alarms notify users of battery conditions, overload, or low battery, enabling timely intervention and continuous uptime.

Certified and Compliant

Meets CE, UKCA, EAC, and TISI certifications and EN/IEC 62040-1 and 62040-2 standards, with IP20 protection for safe and reliable operation.

Product Specifications

• Rated Power: 10,000 W
• Rated Capacity: 10,000 VA
• Input Voltage: 230 V AC 1 phase (supports 220 V / 240 V)
• Input Voltage Limits: 110–300 V at 60% load, 176–300 V at full load
• Input Connector: 1 Hard Wire 3-wire (1P + N + E)
• Input Frequency: 40–70 Hz auto-sensing
• Output Voltage: 230 V AC 1 phase (220 V / 240 V supported)
• Output Connections: Hard Wire 3-wire (1P + N + E) for 1 zone
• Output Frequency: 50/60 Hz ±3 Hz sync to mains
• Topology: On-Line, Double-Conversion
• Waveform: Pure Sine Wave
• Efficiency: 94% (full load)
• Bypass Type: Internal automatic/manual
• Crest Factor: 3:1
• Harmonic Distortion: 1%
• Battery Type: Lead-acid external, 240 V
• Extendable Runtime: Supports up to 4 external battery packs
• Typical Recharge Time: 5 h
• Battery Life: 3–5 years
• Emergency Power Off (EPO): Yes
• Control Panel: Multifunction LCD console
• UPS Connectivity: USB, Serial, Intelligent Card Slot
• Surge Energy Rating: 600 J
• Rack Units: 5U
• Dimensions: 615 mm (depth) × 219.5 mm (height) × 438 mm (width)
• Weight: 78 kg
• Acoustic Level: 58 dBA
• Heat Dissipation: 2128 Btu/h
• Operating Temperature: 0–40 °C
• Storage Temperature: -15–60 °C
• Operating Altitude: 0–3000 m
• Storage Altitude: 0–15,000 m
• IP Degree of Protection: IP20
• Certifications: CE, UKCA, EAC, TISI
• Provided Equipment: USB Cable, Rail Kit, Stabilization/Wall Mounting Feet, Installation Manual, C13–C14 Power Cord
