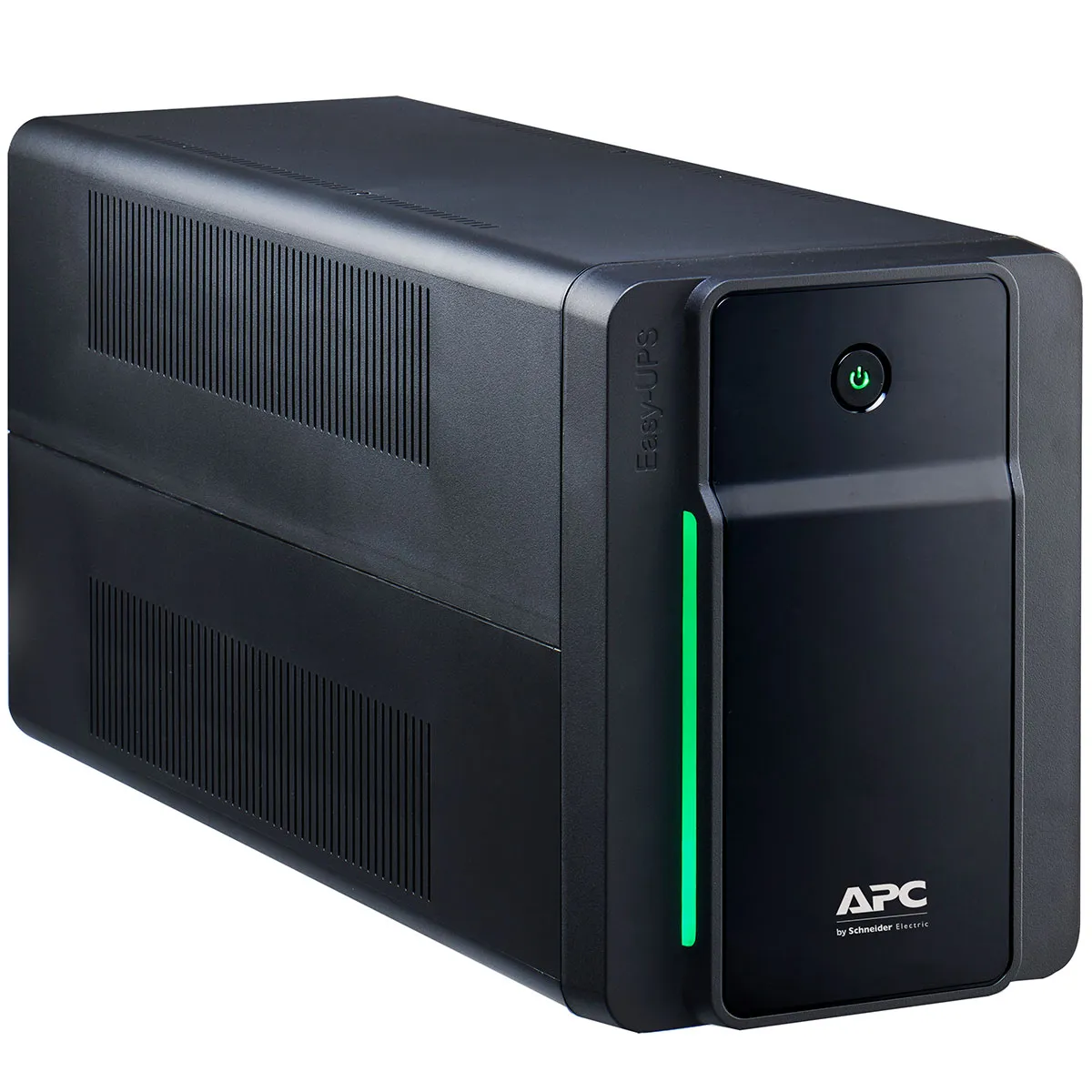

APC Easy UPS BVX 1200VA 230V AVR Universal Sockets (BVX1200LI-MS)

The APC Easy UPS BVX1200LI-MS is a reliable uninterruptible power supply designed to protect home and office equipment from power interruptions, voltage fluctuations, and surges. With a 1200VA capacity and built-in Automatic Voltage Regulation, it ensures stable power delivery for critical devices such as computers, networking equipment, and electronics. Its compact tower design, LED status indicators, and universal sockets make it a practical and efficient solution for maintaining productivity during outages and unstable power conditions.

Product Features

Automatic Voltage Regulation for Stable Power

The built-in AVR technology automatically corrects voltage fluctuations, protecting connected devices from damage caused by spikes, dips, and surges.

1200VA Backup Power Capacity

With a 1200VA and 650W output capacity, this UPS provides reliable backup power to keep essential devices running during outages and prevent data loss.

Universal Sockets with Surge Protection

Equipped with multiple universal outlets and an IEC socket, all ports provide both battery backup and surge protection for connected equipment.

LED Status Display

The intuitive LED display allows users to easily monitor power conditions, battery status, and operational modes at a glance.

Cold Start Function

The cold start feature enables the UPS to power on and supply backup power even when utility power is unavailable.

Compact and Space-Saving Design

Its compact tower form factor allows easy placement in home offices, workstations, and small business environments.

Replaceable Battery Design

Supports a serviceable battery (APCRBC175 sold separately), allowing users to restore performance and extend the lifespan of the UPS.

Reliable Surge Protection

With a surge energy rating of 273 Joules, it provides essential protection against power spikes and electrical disturbances.

Product Specifications

• Model: BVX1200LI-MS
• UPS type: Line-interactive
• Rated power: 1200 VA / 650 W
• Input voltage: 230 V AC single phase
• Input voltage range: 140 to 300 V
• Output voltage: 230 V AC
• Output frequency: 50/60 Hz ±1 Hz
• Transfer time: 6 ms typical, 10 ms maximum
• Waveform: Stepped approximation to sine wave
• Battery type: Internal lead-acid battery
• Battery capacity: 9.0 Ah
• Battery voltage: 12 V
• Recharge time: Approximately 8 hours
• Battery life: 2 to 3 years
• Replacement battery: APCRBC175 (sold separately)
• Runtime at full load (650 W): Approximately 1 minute
• Runtime at half load (300 W): Approximately 5 minutes
• Maximum runtime: Up to 120 minutes (depending on load)
• Output connections: 4 universal sockets and 1 IEC C13
• Input connection: IEC 60320 C14
• Cable length: 1.2 m
• Surge protection rating: 273 Joules
• Control panel: LED status indicators
• Noise level: 40 dBA
• Dimensions: 190 mm x 140 mm x 390 mm
• Weight: 7.5 kg
• Form factor: Tower (desktop installation)
• Color: Black
• Operating temperature: 0°C to 40°C
• Storage temperature: -15°C to 40°C
• Humidity: 0% to 95% non-condensing
• Operating altitude: Up to 3000 m
• Certifications: CE, CB
• Compliance standards: EN/IEC 62040 series
• Package contents: UPS unit and user manual
