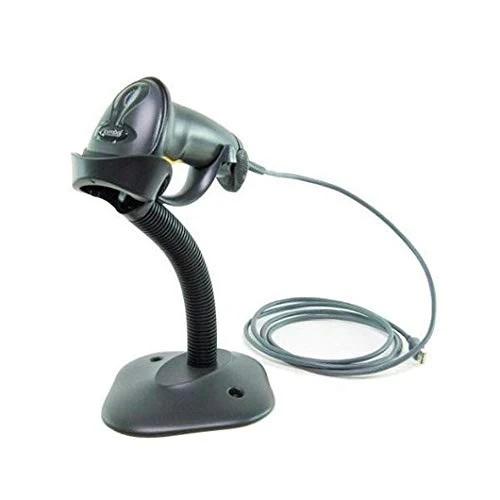

Zebra Symbol LS2208 1D Handheld Laser Barcode Scanner – Black (LS2208-SR20007R)

The Zebra Symbol LS2208 1D Handheld Laser Barcode Scanner – Black (LS2208-SR20007R) is a reliable and high-performance scanning solution built for retail, healthcare, education, and light industrial environments. Designed for plug-and-play simplicity, this lightweight and ergonomic scanner delivers fast, accurate 1D barcode capture with a durable construction that withstands everyday use. With multi-interface connectivity, advanced data formatting, and global keyboard support, the LS2208 is engineered to improve workflow efficiency while reducing setup time and operational costs.

Product Features

High-Speed Bi-Directional Laser Scanning

Equipped with a bi-directional laser scan engine capable of up to 100 scans per second, ensuring fast and accurate barcode capture in busy environments.

Wide Decode Range

Reads standard 100% UPC barcodes from near contact up to 17 inches (43 cm), with extended range support for higher-density and wider barcodes.

Multi-Interface Connectivity

Supports USB, RS232, and Keyboard Wedge interfaces, allowing seamless integration with POS systems, desktops, and laptops.

Durable Construction

Patented single-board design eliminates common points of failure and withstands multiple 5 ft (1.5 m) drops to concrete. IP30 sealing adds additional protection against dust and environmental exposure.

Advanced Data Formatting (ADF)

Enables modification and formatting of scanned data before transmission to the host system, reducing the need for additional software customization.

Multiple Decode Feedback Indicators

Provides clear scan confirmation through LED indicators, audible beeper alerts, and direct decode visual feedback.

Global Keyboard Support

Compatible with over 90 international keyboards, making it ready for deployment across various regions.

Hands-Free Operation Support

Compatible with the optional Intellistand for automatic switching between handheld and presentation modes.

Product Specifications

• Scanner Type: Bi-directional 1D laser scanner
• Scan Speed: 100 scans per second
• Scan Angle: 35°
• Supported Symbologies: UPC/EAN, Code 39, Code 128, GS1 DataBar, and other common 1D barcodes
• Reading Range (100% UPC 13 mil): 0 to 17 inches (0 to 43 cm)
• Code 39 (5 mil): 2.50 to 6.00 inches (6.00 to 15.25 cm)
• Code 39 (10 mil): 1.00 to 14.25 inches (2.54 to 14.25 cm)
• Code 39 (20 mil): 0 to 23.00 inches (0 to 58.50 cm)
• Code 39 (40 mil): 0 to 30.00 inches (0 to 76.00 cm)
• Minimum Print Contrast: 20% reflective difference
• Connectivity: USB, RS232, Keyboard Wedge
• Power Requirement: 4.5 to 5.5 VDC (130–175 mA), typically via USB
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Humidity: 5% to 95% non-condensing
• Light Immunity: Up to 8,000 foot-candles (86,111 lux)
• Drop Resistance: Multiple 5 ft (1.5 m) drops to concrete
• Sealing: IP30 rated
• Electrostatic Discharge Protection: Robust ESD protection
• Laser Safety Compliance: CDRH Class II, IEC Class 2
• Dimensions: 6 x 2.5 x 3.34 inches (15.2 x 6.3 x 8.4 cm)
• Weight: 5.29 oz (150 g)
