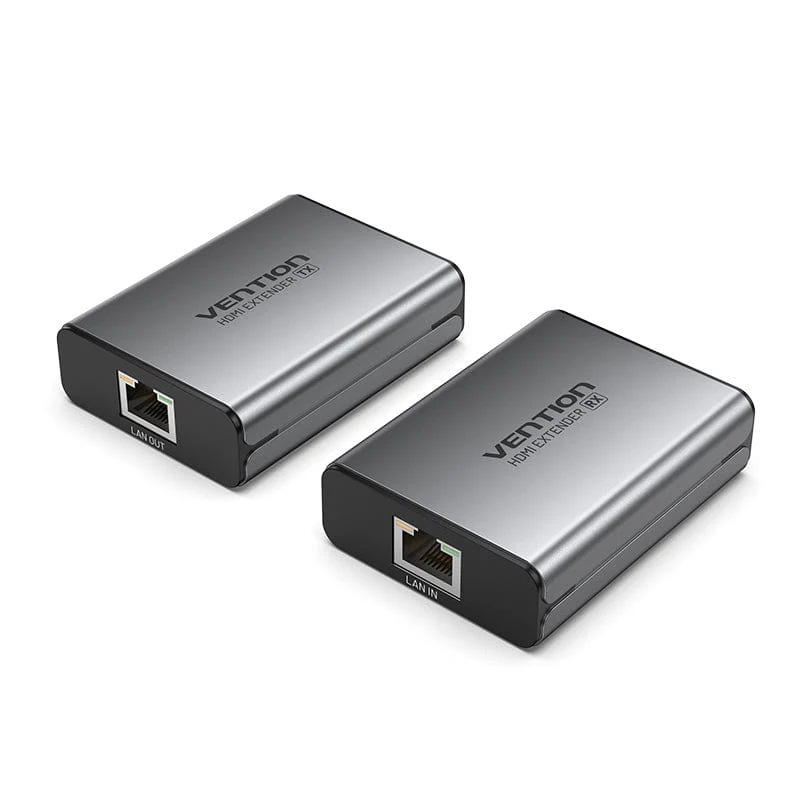

Vention HDMI Network Cable Extender 60M Gray Aluminum Alloy Type (AKGH0-UK)

The Vention HDMI Network Cable Extender 60M (AKGH0-UK) is a professional HDMI extension solution designed to transmit high-definition audio and video signals over long distances using a single Cat5e, Cat6, or Cat7 Ethernet cable. It is ideal for installations such as CCTV systems, conference rooms, classrooms, digital signage, and home theaters where standard HDMI cables are insufficient. With stable Full HD transmission, plug-and-play setup, and durable aluminum alloy construction, it delivers reliable long-distance performance with minimal signal loss.

Product Features

Long-Distance HDMI Transmission

Extends HDMI signals up to 60 meters over Cat6/7 cables or up to 50 meters over Cat5e, providing flexible installation options for large spaces.

Full HD Video Support

Supports resolutions up to 1920 x 1080 at 60Hz, ensuring clear and stable Full HD video output for professional and entertainment use.

Optional 4K Input Compatibility

Some configurations support 4K UHD input at 30Hz while maintaining stable output performance over supported network cables.

Plug and Play Setup

Includes both transmitter (TX) and receiver (RX) units with no driver installation required, allowing for quick and simple deployment.

High-Quality Audio Transmission

Supports synchronized audio and video, including formats such as Dolby Digital, DTS, LPCM, and 7.1 surround sound for immersive output.

Intelligent EDID Management

Features Auto-Adaptive EDID functionality that automatically detects display specifications and optimizes resolution and compatibility.

Durable Aluminum Alloy Construction

Built with a gray aluminum alloy housing that enhances durability, improves heat dissipation, and supports continuous operation.

Stable Signal Processing Technology

Integrated signal compensation chipset reduces latency and interference, ensuring smooth and consistent transmission over long distances.

LED Status Indicators

Equipped with power and signal LEDs for quick status monitoring and easy troubleshooting during installation and use.

Wide Professional Application Support

Suitable for home theaters, security monitoring systems, corporate conference rooms, educational environments, and retail display systems.

Product Specifications

• Model: AKGH0-UK
• Product Type: HDMI Network Cable Extender (TX + RX Kit)
• Maximum Transmission Distance: Up to 60 meters (Cat6/7), up to 50 meters (Cat5e)
• Video Resolution: Up to 1920 x 1080 at 60Hz (Full HD)
• Supported Formats: 1080p, 1080i, 720p, 576p/i, 480p/i, 3D
• HDMI Standard: HDMI 1.3
• HDCP Support: HDCP 1.2
• Color Depth: Up to 24-bit True Color
• Data Transfer Rate: 6.75 Gbps
• Audio Support: Dolby Digital (AC3), DTS, LPCM, DTS-HD, 7.1 surround sound
• Network Interface: RJ45 (Cat5e/Cat6/Cat7 compatible)
• HDMI Interface: HDMI Female (TX and RX)
• Power Supply: DC 5V / 1A (UK plug adapter included)
• Power Consumption: Approximately 6W
• Chipset: Integrated signal compensation chip
• Housing Material: Aluminum alloy + ABS
• Dimensions: 85mm x 55mm x 20mm (per unit)
• Indicators: Power LED and Signal LED
• EDID Support: Auto-adaptive EDID
• Installation: Plug and play, no drivers required
• Operating Mode: Point-to-point transmission (TX to RX system)
• Use Cases: CCTV systems, conference rooms, classrooms, home theater, digital signage
