Vention 1 In 4 Out HDMI Splitter 4K@30Hz Gold Aluminum Alloy Type (ACCG0-UK)

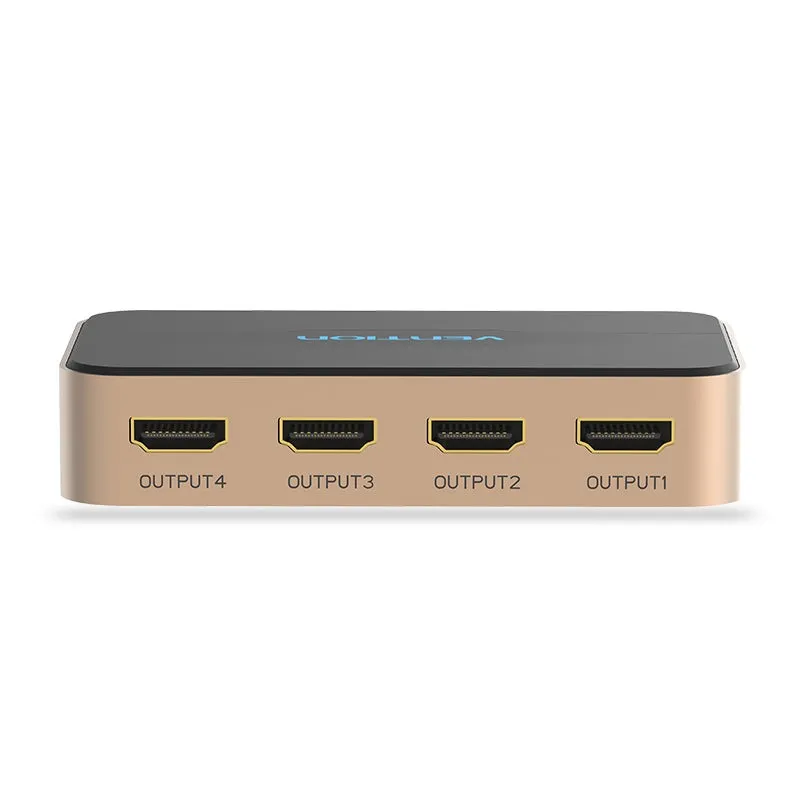

The Vention 1 In 4 Out HDMI Splitter (ACCG0-UK) is a professional-grade video distribution device designed to duplicate a single HDMI input signal across four displays simultaneously. Ideal for conference rooms, digital signage, security monitoring systems, classrooms, and home entertainment setups, it ensures stable and synchronized audio-video output across multiple screens. With support for 4K resolution, durable aluminum alloy construction, and plug-and-play functionality, it delivers reliable multi-display performance for professional applications.
Product Features
4K Ultra HD Video Distribution
Supports resolutions up to 3840 x 2160 at 30Hz, delivering sharp and detailed Ultra HD visuals across all connected displays.
Quad Display Output
Splits one HDMI input signal into four identical outputs, ensuring synchronized video playback on multiple screens without lag or degradation.
Active Signal Amplification
Built with an integrated chipset (such as PI3HDMI366 or SII9187B depending on version) to maintain stable signal strength and prevent quality loss over long distances.
High-Quality Audio Support
Supports advanced audio formats including Dolby TrueHD, DTS-HD Master Audio, LPCM 7.1, and AC3 for immersive sound reproduction.
Plug and Play Operation
No drivers or software required. The splitter works immediately after connection, allowing for quick and simple installation.
Durable Aluminum Alloy Housing
Constructed with a strong aluminum alloy casing that improves heat dissipation and ensures reliable long-term operation.
Gold-Plated Connectors
Features gold-plated HDMI ports that enhance conductivity, reduce signal loss, and resist corrosion for stable performance.
Long-Distance Transmission Capability
Supports signal transmission up to 30 meters when used with high-quality HDMI cables, making it suitable for large installations.
Intelligent EDID Management
Automatically detects display capabilities to ensure optimal resolution and compatibility across all connected screens.
LED Status Indicators
Equipped with LED indicators for power and active outputs, allowing easy monitoring of device status.
Wide Device Compatibility
Compatible with gaming consoles, PCs, Blu-ray players, and other HDMI sources, and works with TVs, monitors, and projectors.
Product Specifications
- Model: ACCG0-UK
- Product Type: 1 In 4 Out HDMI Splitter
- HDMI Input: 1 x HDMI 1.4 Female
- HDMI Output: 4 x HDMI 1.4 Female
- Maximum Resolution: 3840 x 2160 at 30Hz (4K UHD)
- Supported Resolution: 1080p at 60Hz, 3D video support
- Bandwidth: Up to 10.2 Gbps (340MHz)
- Color Depth: 30-bit / 36-bit / 48-bit per pixel
- HDMI Standard: HDMI 1.4 (backward compatible)
- HDCP Support: HDCP 1.4
- Audio Support: Dolby TrueHD, DTS-HD Master Audio, LPCM 7.1, AC3
- Chipset: PI3HDMI366 / SII9187B (variant dependent)
- Signal Mode: Active amplification and synchronization
- Power Supply: DC 5V / 1A (UK adapter included)
- Material: Aluminum alloy housing
- Connector Material: Gold-plated HDMI ports
- Dimensions: 105mm x 59mm x 20mm
- Weight: Approximately 181g
- Features: EDID auto-detection, 3D support, cascading support
- Installation: Plug and play, no drivers required
- Use Cases: Digital signage, CCTV monitoring, conference rooms, home theaters, education setups
