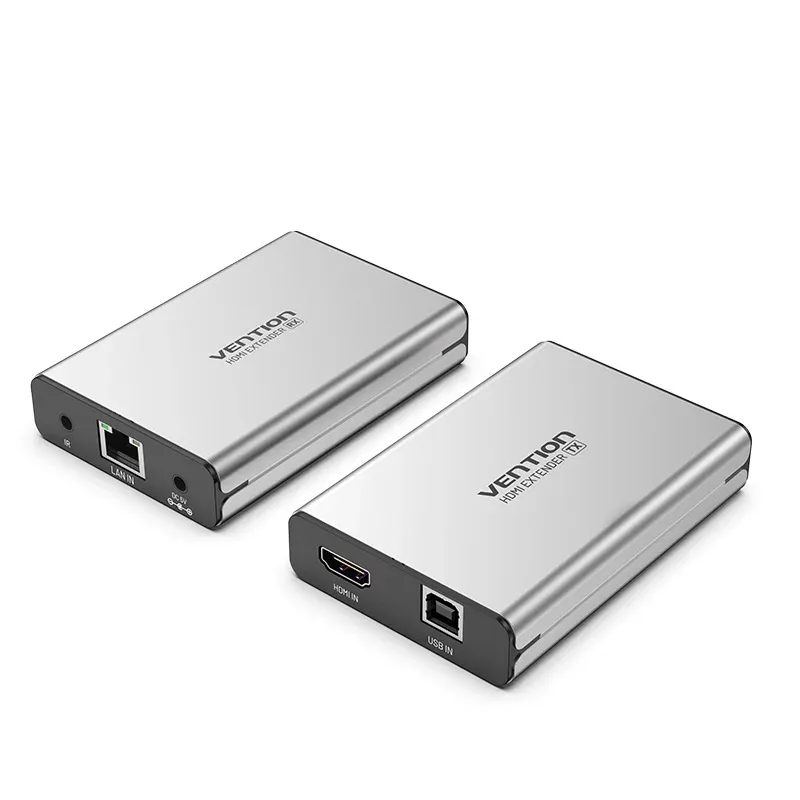

Vention HDMI Network Cable Extender 150M Gray Aluminum Alloy Type (AKBH0)

The Vention HDMI Network Cable Extender 150M (AKBH0) is a professional-grade HDMI KVM extension system designed to transmit high-definition video, audio, and control signals over long distances using a single Cat5e or Cat6 Ethernet cable. Supporting transmission distances up to 150 meters, it is ideal for large-scale installations such as conference rooms, control centers, classrooms, security monitoring systems, and home theater setups. With stable Full HD output, KVM functionality, and durable aluminum alloy construction, it provides reliable long-range signal extension with minimal loss and strong performance consistency.

Product Features

Long-Distance Signal Transmission

Extends HDMI signals up to 150 meters over a single Cat5e/6 Ethernet cable, maintaining stable and clear video output across long distances.

Full HD Video Support

Delivers up to 1080p at 60Hz resolution, ensuring smooth and detailed video quality suitable for professional presentations and monitoring systems.

KVM Remote Control Functionality

Supports USB 2.0 pass-through for keyboard and mouse control, allowing remote operation of a connected computer from the receiver side.

High-Quality Audio Transmission

Supports multiple audio formats including LPCM, Dolby AC-3, DTS, and 7.1 surround sound for synchronized and immersive audio-visual output.

Plug and Play Installation

No drivers required. The extender operates immediately after connection, simplifying installation in professional and home environments.

Optional Power over Cable Support

Certain configurations support PoC technology, allowing power delivery through the Ethernet cable so only one end requires a power adapter.

Durable Aluminum Alloy Construction

Built with a gray aluminum alloy housing that enhances durability, improves heat dissipation, and supports continuous 24/7 operation.

Stable and Interference-Free Performance

Designed with advanced signal processing and shielding to reduce interference and ensure stable long-distance transmission.

EDID Intelligent Matching

Includes EDID functionality to automatically match display capabilities, improving compatibility and reducing signal issues.

Wide Application Compatibility

Suitable for home theaters, business presentations, security monitoring systems, and educational environments requiring extended display connections.

Product Specifications

• Model: AKBH0
• Product Type: HDMI KVM Network Extender
• Maximum Transmission Distance: Up to 150 meters (492 feet)
• Video Resolution: Up to 1920 x 1080 at 60Hz (Full HD)
• HDMI Standard: HDMI 1.4 (backward compatible with 1.3/1.2)
• HDCP Support: HDCP 1.4
• Audio Support: LPCM, Dolby AC-3, DTS, DSD, 7.1 channel surround sound
• Network Interface: RJ45 (Cat5e/Cat6)
• USB Interface: USB 2.0 for KVM (keyboard and mouse support)
• IR Control: 3.5mm IR input/output support
• Power Input: DC 5V / 1A (optional PoC support depending on version)
• Housing Material: Aluminum alloy (gray finish)
• Functionality: Video, audio, USB KVM, and IR transmission
• Setup: Plug and play, no drivers required
• Operating Mode: Point-to-point transmission (TX to RX system)
• Use Case: CCTV systems, conference rooms, classrooms, home theater, control centers
• Included Components: Transmitter (TX), Receiver (RX), power adapters, IR cables
