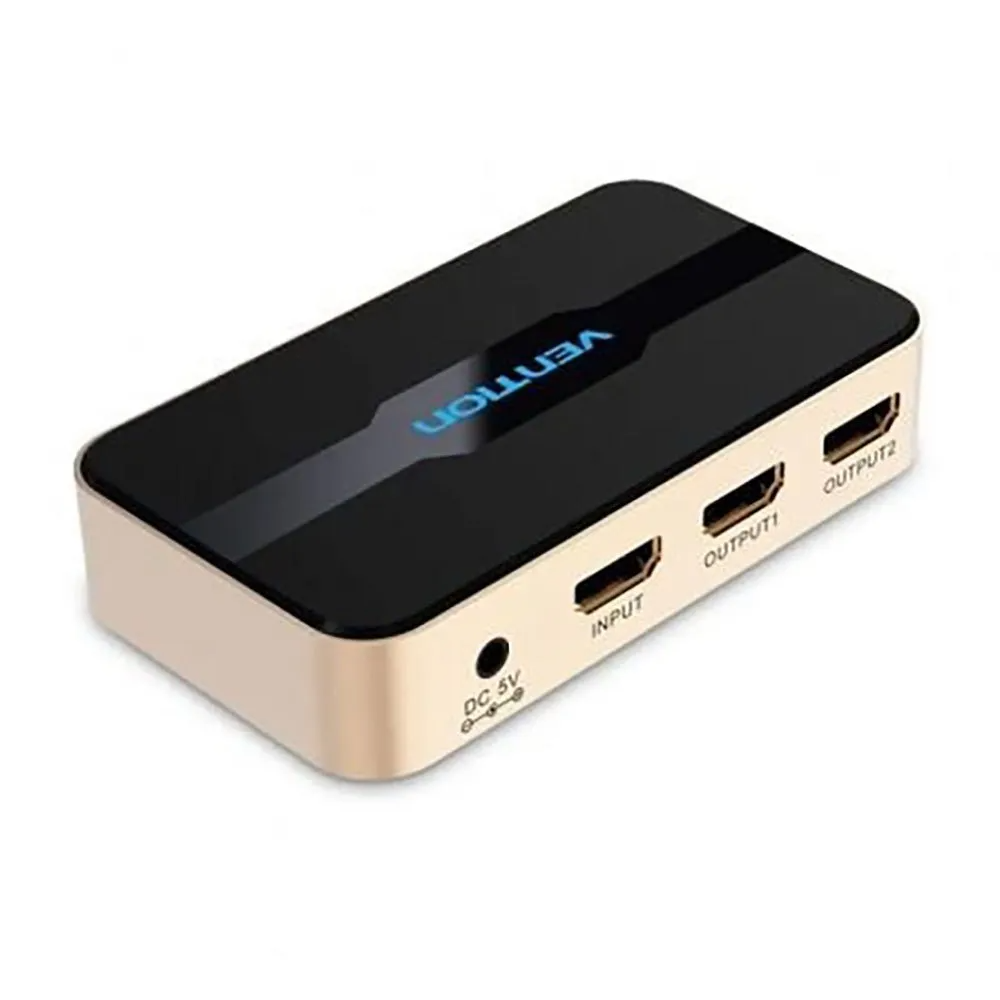

Vention 1 In 2 Out HDMI Splitter 4K@30Hz Gold Aluminum Alloy Type (ACBG0-EU)

The Vention 1 In 2 Out HDMI Splitter (ACBG0-EU) is a high-performance signal distribution device designed to mirror a single HDMI source to two displays simultaneously. It is ideal for home entertainment systems, business presentations, classrooms, and digital signage setups where identical content must be displayed on multiple screens. Supporting 4K resolution, stable audio-video synchronization, and durable aluminum alloy construction, this splitter ensures reliable performance with minimal signal degradation.

Product Features

4K Ultra HD Display Mirroring

Supports up to 3840 x 2160 resolution at 30Hz, delivering sharp and detailed Ultra HD visuals across two connected displays.

Dual Screen Output

Splits one HDMI input signal into two identical outputs, ensuring synchronized playback without delay or distortion.

Stable Signal Amplification

Powered by an integrated Silicon Image SII9187B chipset that strengthens and distributes signals evenly to both outputs for consistent performance.

High-Quality Audio Support

Supports advanced audio formats including Dolby TrueHD and DTS-HD Master Audio for clear and immersive sound output.

Plug and Play Setup

No software or drivers required. The device functions immediately upon connection, offering simple and fast installation.

Durable Aluminum Alloy Construction

Built with a sturdy aluminum alloy housing that enhances durability and provides efficient heat dissipation during long-term operation.

Gold-Plated HDMI Connectors

Equipped with gold-plated HDMI ports to improve conductivity, reduce signal loss, and prevent corrosion over time.

Stable Transmission Range

Supports reliable signal transmission up to 10–15 meters per connection depending on HDMI cable quality, suitable for flexible installations.

Intelligent EDID Management

Automatically detects and adjusts display resolution to ensure optimal compatibility between connected devices.

LED Status Indicators

Includes LED indicators for power and signal status, allowing easy monitoring of device operation.

Wide Device Compatibility

Compatible with gaming consoles, PCs, laptops, Blu-ray players, and other HDMI source devices, and works with TVs, monitors, and projectors.

Product Specifications

• Model: ACBG0-EU
• Product Type: 1 In 2 Out HDMI Splitter
• HDMI Input: 1 x HDMI 1.4 Female
• HDMI Output: 2 x HDMI 1.4 Female
• Maximum Resolution: 3840 x 2160 at 30Hz (4K UHD)
• Supported Resolutions: 1080p, 720p, 3D video formats
• HDMI Standard: HDMI 1.4b
• HDCP Support: HDCP 1.4
• Bandwidth: Up to 10.2 Gbps
• Audio Support: Dolby TrueHD, DTS-HD Master Audio
• Chipset: Silicon Image SII9187B
• Signal Type: Active signal distribution and amplification
• Transmission Distance: Up to 10–15 meters per HDMI link (up to ~30m total depending on cable quality)
• Power Supply: DC 5V / 1A (EU plug adapter included)
• Material: Aluminum alloy housing
• Connector Material: Gold-plated HDMI ports
• Dimensions: Approximately 105mm x 59mm x 20mm
• Features: EDID auto-detection, 3D support
• Indicators: LED power and signal status lights
• Installation: Plug and play, no drivers required
• Use Cases: Home theater, classrooms, conference rooms, digital signage, gaming setups
