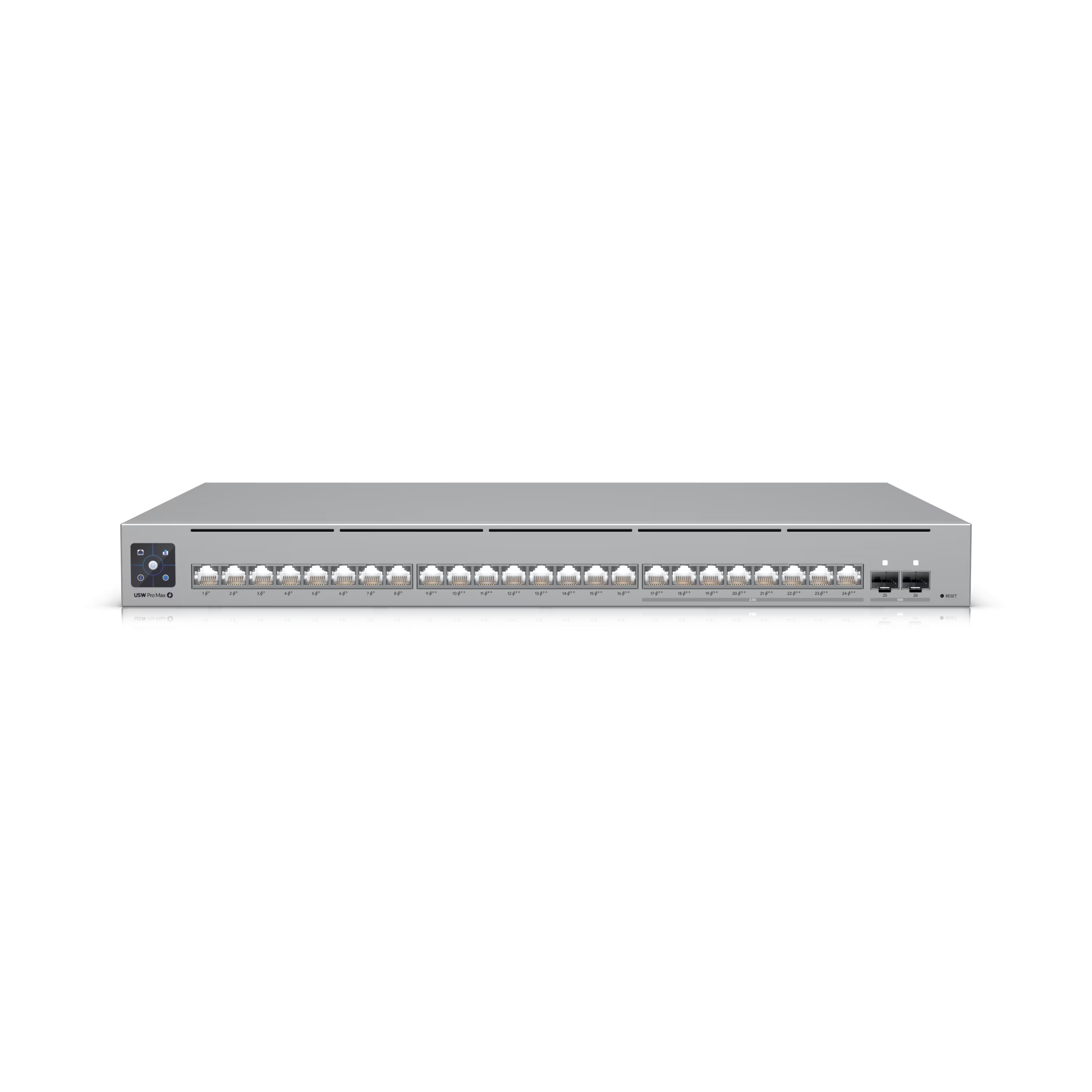

Ubiquiti UniFi 24-Port Managed PoE++ Enterprise Switch (USW-Pro-Max-24-PoE)

The Ubiquiti UniFi 24-Port Managed PoE++ Enterprise Switch (USW-Pro-Max-24-PoE) delivers high-performance, reliable networking for enterprise and campus environments. Equipped with a mix of 1 GbE, 2.5 GbE, and 10G SFP+ ports with PoE++ capabilities, it supports advanced Layer 2 and Layer 3 features, extensive VLAN management, and robust power delivery for connected devices. Its rack-mountable 1U form factor, Etherlighting™ integration, and intuitive touchscreen display make installation and management seamless, while 400W PoE output ensures maximum device support for access points, cameras, and other powered devices.

Product Features

High-Performance Switching

Supports a switching capacity of 112 Gbps with total non-blocking throughput of 56 Gbps and a forwarding rate of 83 Mpps for fast, reliable data transfer.

Comprehensive PoE++ Support

Provides up to 400W total PoE output with 8 PoE+ and 16 PoE++ ports, capable of powering demanding devices like high-end access points, VoIP phones, and cameras.

Layer 3 Networking

Offers full Layer 3 capabilities, including DHCP server, DHCP relay, inter-VLAN routing, and static routing for local networks.

Advanced Layer 2 Features

Includes LACP port aggregation, STP & RSTP, QoS (DSCP), IGMP snooping, 802.1X authentication, MAC-based ACLs, port mirroring, jumbo frames, and advanced multicast controls.

Etherlighting™ Integration

Supports both Ethernet and SFP+ Etherlighting™ for networked lighting management and automation.

Intuitive Management

Equipped with a 1.3″ touchscreen LCM display and fully supported by UniFi Network software (version 8.0.24 and later) for easy monitoring and configuration.

Enterprise-Grade Build

Constructed with durable SGCC steel, rack-mountable in 1U form, and supports ambient operating temperatures from -5 to 40°C (23 to 104°F) with humidity tolerance of 10–90% non-condensing.

Product Specifications

• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
• Port Layout:1 GbE RJ45: 16 ports (8 PoE+, 8 PoE++), 2.5 GbE RJ45: 8 ports (All PoE++), 10G SFP+: 2 ports
• Max. PoE Output: Up to PoE++
• Total PoE Availability: 400W
• Redundancy: DC Power Backup
• Form Factor: Rack mount (1U)
• Switching Capacity: 112 Gbps
• Total Non-Blocking Throughput: 56 Gbps
• Forwarding Rate: 83 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• ARP Entries: 6,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
• Access Lists: IPv4 (128), MAC (128)
• PoE Ports: 8 PoE+, 16 PoE++
• Max. PoE Wattage per Port: PoE 15.4W, PoE+ 32W, PoE++ 64W
• Max. Power Consumption: 50W (excluding PoE), 450W (including PoE)
• Power Supply: AC/DC, internal, 550W
• Supported Voltage Range: 100–240V AC
• Weight: 5.1 kg without brackets, 5.2 kg with brackets
• Mount Material: SGCC steel
• Supported Rack Depth: 400–1200 mm (15.7–47.2″)
• LCM Display: 1.3″ touchscreen
• Etherlighting™: Ethernet and SFP+
• Compliance: NDAA Compliant, CE, FCC, IC, Anatel certified
• Software Compatibility: UniFi Network v8.0.24+
