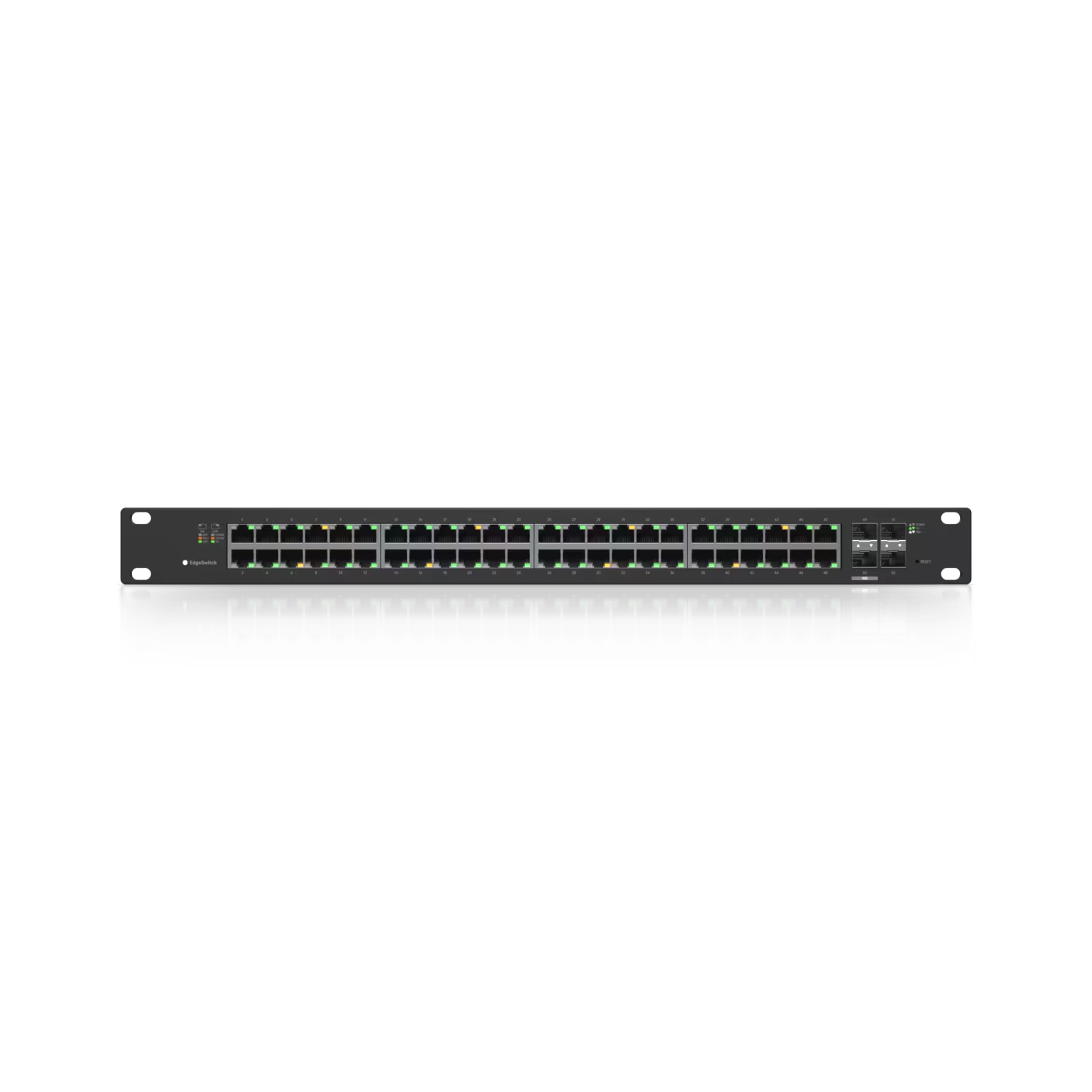

Ubiquiti EdgeSwitch 48 Port PoE+ Switch (ES-48-500W)

The Ubiquiti EdgeSwitch 48 Port PoE+ Switch (ES-48-500W) is a high-performance, enterprise-grade switch designed for scalable network deployments. Featuring 48 GbE RJ45 ports with PoE/PoE+ and 24V passive PoE support, along with 2 1/10G SFP+ ports and 2 1G SFP ports for uplinks, it provides flexible connectivity for access points, IP cameras, VoIP devices, and other powered network equipment. Built with a robust internal 500W power supply and advanced ESD protection, this rack-mountable 1U switch ensures reliable, high-speed networking for demanding environments.

Product Features

High-Capacity Switching

Delivers 140 Gbps switching capacity, 70 Gbps total non-blocking throughput, and a forwarding rate of 104.16 Mpps for efficient, high-speed data transfer.

Flexible PoE+ and Passive PoE

Provides 48 PoE/PoE+ ports (up to 34.2W per port) and 48 24V DC passive PoE ports (up to 17W per port) to power a wide range of network devices without additional injectors.

Advanced Management Interfaces

Supports management via RJ45 serial console or Ethernet in/out-of-band interface, allowing easy monitoring, configuration, and troubleshooting.

Durable and Rack-Mountable Design

Constructed to ETSI300-019-1.4 shock and vibration standards with a 1U rack-mountable form factor for secure and space-efficient installation.

Environmental and ESD Protection

Operates reliably in ambient temperatures of -5 to 40°C (23 to 104°F) with 5–95% non-condensing humidity and ±24 kV air/contact ESD/EMP protection for safe operation in critical network environments.

Product Specifications

• Dimensions: 485 x 43.7 x 374.6 mm (19.1 x 1.7 x 14.8″)
• Weight: 6.1 kg (13.5 lb)
• Networking Interface: 48 GbE RJ45 ports, 2 1/10G SFP+ ports, 2 1G SFP ports
• PoE Interface:48 PoE/PoE+ 2-pair (Pins 1,2+; 3,6-), 48 24V DC passive PoE 2-pair (Pins 4,5+; 7,8-)
• Total Non-Blocking Throughput: 70 Gbps
• Switching Capacity: 140 Gbps
• Forwarding Rate: 104.16 Mpps
• Total PoE Available: 500W
• Max. PoE Wattage per Port: PoE+ 34.2W, Passive PoE 17W
• Voltage Range PoE Mode: PoE+ 50–57V, Passive PoE 20–27V
• Power Supply: AC/DC internal, 500W
• Max. Power Consumption: 64W (Excluding PoE Output)
• Power Input Method: 100–240V AC, universal input, 50/60 Hz
• ESD/EMP Protection: Air/contact ±24 kV
• LED Indicators: Ethernet ports (PoE, speed/link/activity), SFP/SFP+ ports (speed/link/activity)
• Button: Factory reset
• Rackmount: Yes, 1U
• Shock and Vibration: ETSI300-019-1.4 Standard
• Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
• Ambient Operating Humidity: 5–95% non-condensing
• Compliance: NDAA Compliant, CE, FCC, IC
