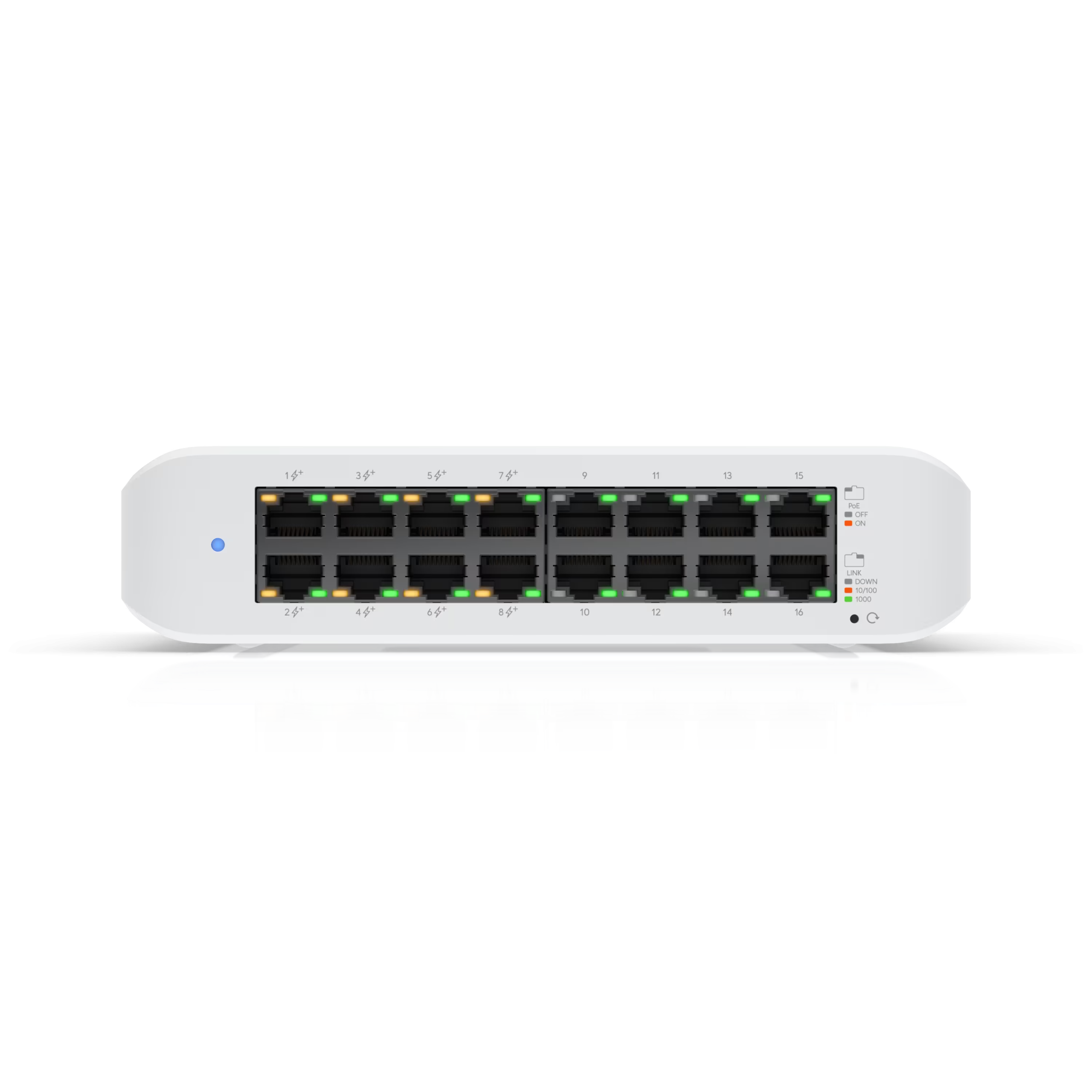

Ubiquiti UniFi 16-Port PoE Switch (USW-Lite-16-POE)

The Ubiquiti UniFi 16-Port PoE Switch (USW-Lite-16-POE) is a compact, versatile managed switch designed for small networks, home offices, and branch deployments. Equipped with 16 GbE RJ45 ports, 8 of which support PoE+, it delivers a total PoE budget of 45W, enabling seamless connectivity for IP cameras, access points, and VoIP devices without additional power injectors. Its compact desktop or wall-mount form factor, combined with enterprise-grade Layer 2 features, VLAN support, and robust network security options, ensures reliable and efficient network performance in a small footprint.

Product Features

Efficient PoE+ Support

Supports 8 PoE+ ports with up to 32W per port, allowing powered devices to run directly from the switch without requiring external power sources.

Advanced Layer 2 Functionality

Includes LACP port aggregation, STP & RSTP, IGMP snooping, 802.1X control, MAC-based ACLs, port isolation, jumbo frames, and multicast/broadcast rate limiting for secure and optimized traffic management.

High-Performance Switching

Delivers 32 Gbps switching capacity, 16 Gbps total non-blocking throughput, and a forwarding rate of 24 Mpps for smooth, uninterrupted network operations.

Compact, Flexible Design

Designed for desktop or wall-mount deployment, with polycarbonate construction that supports rack depths from 400 to 1200 mm (15.7–47.2″).

Reliable Environmental Performance

Operates in ambient temperatures from -15 to 40°C (5 to 104°F) with 10–90% non-condensing humidity, ensuring consistent performance in various environments.

Product Specifications

• Dimensions: 192 x 185 x 44 mm (7.6 x 7.3 x 1.7″)
• Weight: 1.2 kg (2.6 lb)
• Port Layout: 16 GbE RJ45 (8 PoE+)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: 45W
• Form Factor: Compact desktop, wall
• Switching Capacity: 32 Gbps
• Total Non-Blocking Throughput: 16 Gbps
• Forwarding Rate: 24 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists: IPv4 128, MAC 128
• PoE Ports: 8 PoE+
• Max. PoE Wattage per Port: PoE+ 32W
• Max. Power Consumption: 15W (Excluding PoE), 60W (Including PoE)
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Supply: AC/DC internal, 60W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
• Heat Dissipation: 51.2 BTU/hr (Excluding PoE)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Supported Rack Depth: 400–1200 mm (15.7–47.2″)
• Ambient Operating Temperature: -15 to 40°C (5 to 104°F)
• Ambient Operating Humidity: 10–90% non-condensing
• Compliance: NDAA Compliant, CE, FCC, IC, Anatel certified
• Software Compatibility: UniFi Network v7.2.94 and later
