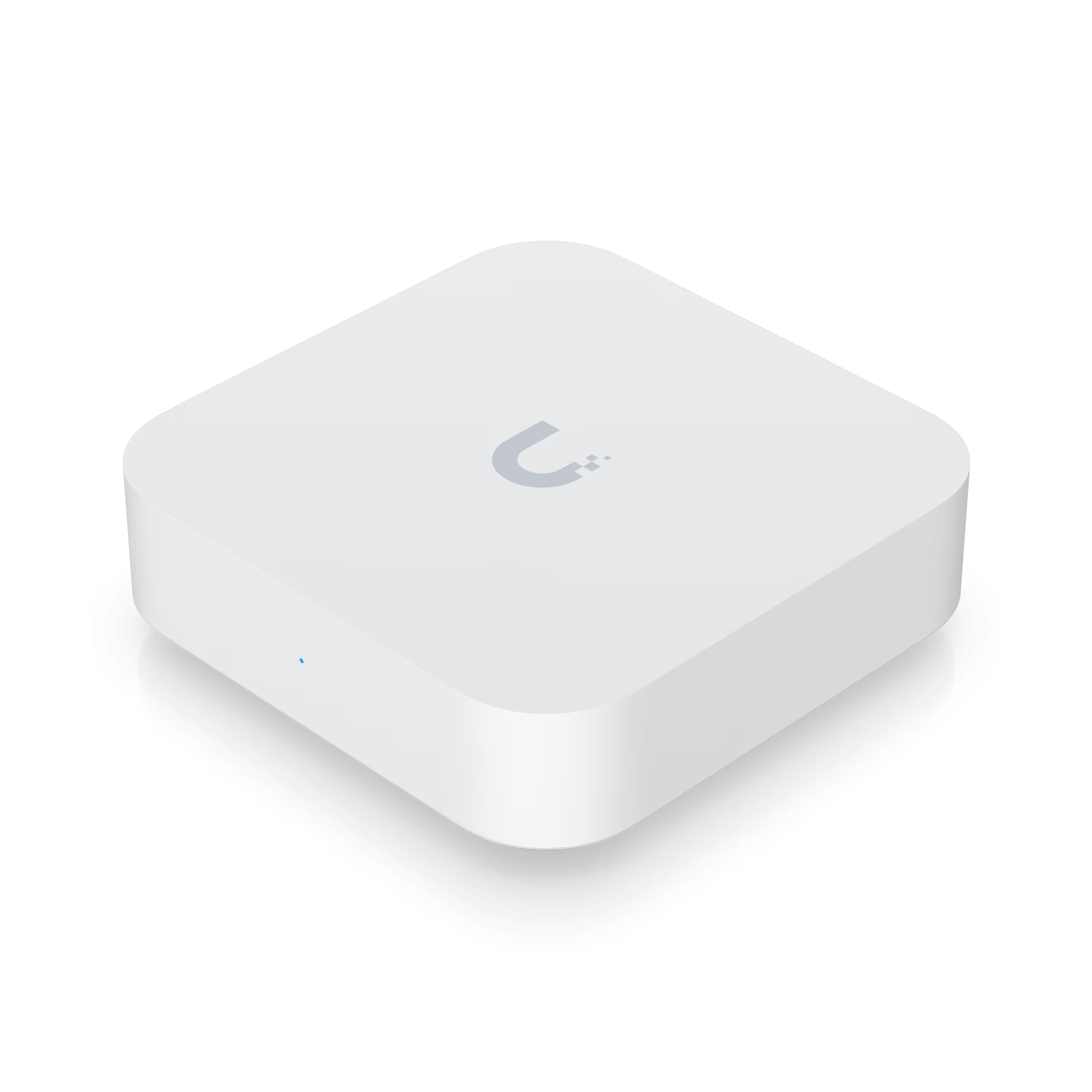

Ubiquiti Next-Generation Gateway Lite (UXG-Lite)

The Ubiquiti UXG-Lite is a compact and powerful gateway designed for advanced network security, VPN, and SD-WAN functionality in small to medium enterprise environments. With a stateful firewall, application-aware Layer 7 filtering, and integrated intrusion prevention, it delivers robust protection while maintaining high performance. Its versatile VPN support, dynamic routing, and advanced QoS features make it ideal for secure remote access, site-to-site connectivity, and policy-based traffic management. The UXG-Lite combines enterprise-grade functionality with a compact desktop form factor, making it perfect for offices or home networks requiring advanced security and network control.

Product Features

Advanced Firewall and Security

Includes stateful and application-aware Layer 7 firewall, DPI traffic identification, content filtering, IPS/IDS, and ad blocking for comprehensive network protection.

Extensive VPN and SD-WAN Support

Supports license-free SD-WAN, site-to-site VPN, IPsec, OpenVPN, WireGuard, Teleport zero-configuration VPN, L2TP, and VPN client capabilities.

Dynamic Routing and QoS

Offers OSPF dynamic routing, policy-based WAN and VPN routing, advanced NAT, multicast DNS, and advanced QoS for efficient network traffic management.

Integrated RADIUS Server

Built-in RADIUS server with RadSec (RADIUS over TLS) support ensures secure authentication and centralized user management.

Failover and Monitoring

Provides internet failover with UniFi LTE backup, quality and outage reporting, and customizable DHCP with IPv6 ISP support.

Compact and Energy-Efficient Design

Small desktop form factor with low maximum power consumption (3.83W) and USB-C powered operation for flexible deployment.

Easy Management and Monitoring

Ethernet and Bluetooth connectivity with LEDs and a factory reset button provide intuitive monitoring and setup options.

Product Specifications

• Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2 inches)
• Weight: 320 g (11.3 oz)
• Enclosure Material: Polycarbonate
• Max WAN Port Count: 1
• Default WAN Port: (1) GbE RJ45
• Port Layout: 1 GbE RJ45, 2 (1G/100M/10M)
• IDS/IPS Throughput: 1 Gbps
• Form Factor: Compact desktop
• Max Power Consumption: 3.83W
• Power Method: USB Type-C (5V DC/3A)
• Power Supply: USB Type-C adapter (5V DC/3A) included
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 13 BTU/hr
• Processor: Dual-core ARM Cortex-A53 at 1 GHz
• System Memory: 1 GB
• Ambient Operating Temperature: -10 to 40°C (14 to 104°F)
• Ambient Operating Humidity: 5 to 95% non-condensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 01874-24-08356
• Application Requirements: UniFi Network Version 8.3.32 and later
• Management Interfaces: Ethernet, Bluetooth
• LEDs: Ethernet status indicators
• Button: Factory reset
