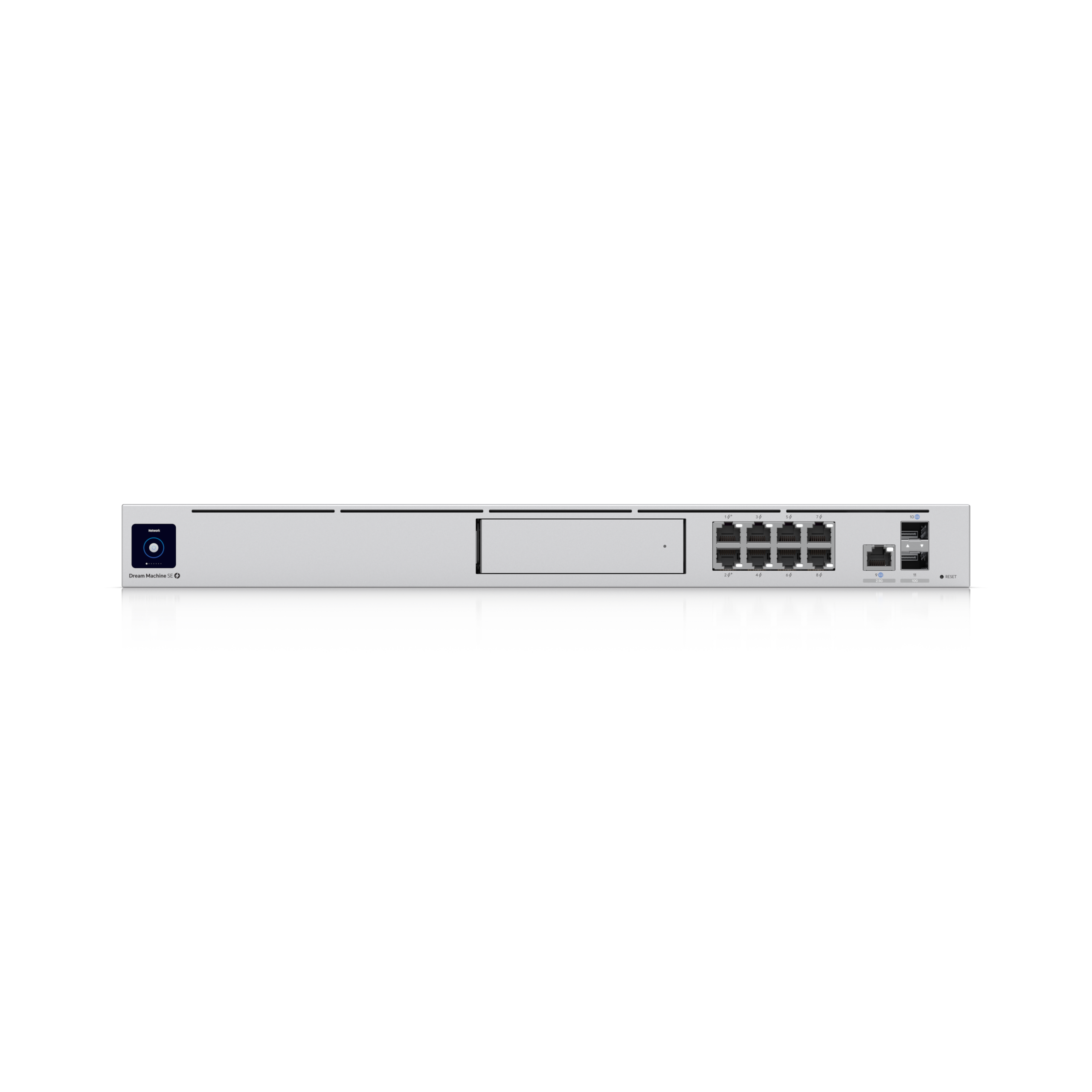

Ubiquiti Dream Machine Special Edition (UDM-SE)

The Ubiquiti Dream Machine Special Edition (UDM-SE) is a premium all-in-one network appliance designed for advanced homes and enterprise environments. It combines enterprise-grade routing, security, and network management with UniFi Protect capabilities for a centralized, high-performance network solution. With support for over 100 managed devices, multiple cameras, and up to 1,000 simultaneous users, the UDM-SE delivers reliable connectivity, high-speed PoE support, and enhanced redundancy. Its integrated 128 GB SSD and 3.5″ NVR bay provide fast storage for UniFi Protect, while license-free SD-WAN, VPN options, and advanced security features ensure seamless, secure operations.

Product Features

UniFi Application Suite

The UDM-SE integrates the full UniFi Application Suite, including Network, Protect, Access, Talk, and Connect, enabling centralized management of devices, cameras, and access hubs with real-time network monitoring.

High-Capacity Networking

Supporting up to 8 WAN ports, multi-WAN load balancing, dynamic routing (OSPF and BGP), and advanced QoS, the UDM-SE ensures enterprise-level reliability for large-scale networks. Shadow Mode VRRP failover and LACP port aggregation enhance high availability.

Security and Firewall

Featuring a stateful firewall, application-aware Layer 7 firewall, DPI traffic identification, zone-based filtering, content filtering, ad-blocking, and intrusion prevention (IPS/IDS) with 55,000+ CyberSecure signatures, the UDM-SE delivers comprehensive protection for all network traffic.

VPN & SD-WAN

The device includes license-free SD-WAN, site-to-site VPN, OpenVPN, WireGuard, L2TP, Teleport zero-configuration VPN, and IPsec support. Policy-based WAN and VPN routing, integrated RADIUS server, and IPv6 ISP support provide flexible, secure connectivity for remote users and sites.

PoE and Device Management

With a total PoE budget of 180W and support for PoE (15.4W per port) and PoE+ (30W per port), the UDM-SE powers connected devices directly while managing cameras, access hubs, and network endpoints efficiently. The built-in 128 GB SSD and 3.5″ NVR bay enhance storage and speed for UniFi Protect applications.

Product Specifications

• Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″)
• Form Factor: Rack mount (1U)
• Managed UniFi Devices: 100+
• Managed Cameras: 24 HD, 14 2K, 8 4K
• Managed Access Hubs: 150
• Simultaneous Users Connected: 1,000+
• Max. WAN Port Count: 8
• Default WAN Ports: 1 10G SFP+, 1 2.5 GbE RJ45
• Port Layout: 1 GbE RJ45 (8), 2.5 GbE RJ45 (1), 10G SFP+ (2)
• IDS/IPS Throughput: 3.5 Gbps
• PoE Budget: 180W
• Max. PoE Wattage per Port: PoE 15.4W, PoE+ 30W
• Voltage Range PoE Mode: PoE 44–57V, PoE+ 50–57V
• Max. Power Consumption: 50W (excluding PoE output)
• Power Method: AC 100–240V, 4.4A max, 50/60 Hz; USP-RPS DC input 52V DC, 3.94A
• Power Supply: AC/DC internal, 240W
• Heat Dissipation: 170 BTU/hr (excluding PoE output)
• Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
• System Memory: 4 GB
• On-board Storage: 16 GB eMMC, 128 GB SSD integrated
• Weight: 5 kg (10.9 lb)
• Enclosure Material: Aluminium CNC, SGCC steel
• Mount Material: SGCC steel
• LCM Display: 1.3″ touchscreen
• Management: Ethernet, Bluetooth
• LED Indicators: Ethernet, SFP+, RPS, PSU, HDD
• Button: 1 Factory reset
• ESD/EMP Protection: Air ± 15kV, Contact ± 8kV
• Operating Temperature: -10 to 40° C (14 to 104° F)
• Operating Humidity: 5 to 95% non-condensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel 07309-22-08356, SRRC
