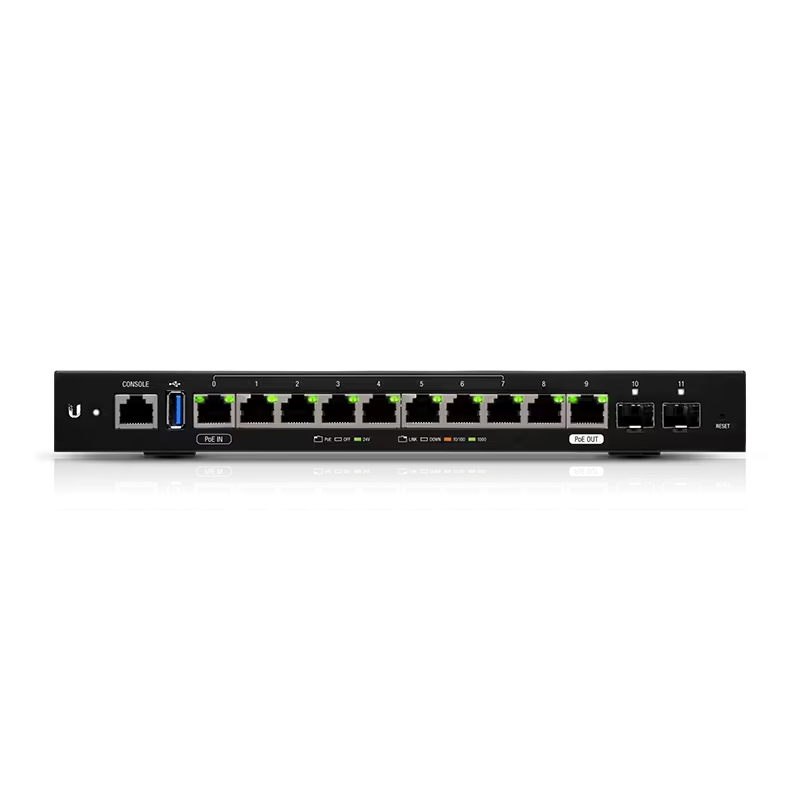

Ubiquiti EdgeMAX EdgeRouter 12 (ER-12)

The Ubiquiti EdgeMAX EdgeRouter 12 (ER-12) is a high-performance, enterprise-grade router designed for advanced networking environments. With 10 Gigabit Ethernet ports and 2 SFP ports, it delivers flexible, high-speed connectivity for multiple devices and networks. Powered by a quad-core 1 GHz MIPS64 processor and 1 GB of DDR3 RAM, the ER-12 provides reliable routing performance and advanced network management. Its passive PoE support and external AC/DC power supply make it ideal for powering network devices while maintaining robust security and network reliability.

Product Features

High-Performance Routing

The EdgeRouter 12 delivers enterprise-grade routing performance with a quad-core processor, 1 GB DDR3 RAM, and 4 GB eMMC storage. It supports complex routing protocols and high-throughput applications for business networks.

Flexible Networking Interfaces

With 10 GbE RJ45 ports and 2 1 Gbps SFP ports, the ER-12 offers versatile connectivity for multiple network devices and uplinks. Passive PoE allows powering connected devices directly from the router.

Advanced Security and Management

The ER-12 includes enterprise-level security features such as factory-reset capability, ESD/EMP protection, and full network monitoring through LEDs for system and data port status. It supports reliable and secure management in professional environments.

Power and Efficiency

Designed for efficiency, the router uses an external AC/DC power adapter with a max consumption of 20W (excluding PoE output). It supports a voltage range of 9–30V DC and provides up to 20W per PoE port, enabling reliable device operation.

Product Specifications

• Dimensions: 268.1 x 136.5 x 31.1 mm (10.6 x 5.4 x 1.2″)
• Weight: 700 g (1.5 lb)
• Processor: Quad-core 1 GHz MIPS64
• System Memory: 1 GB DDR3 RAM
• On-board Storage: 4 GB eMMC, 8 MB SPI NOR
• Networking Interfaces: 10 GbE RJ45 ports, 2 1 Gbps SFP ports
• Management Interface: 1 RJ45 serial port
• Power Method: External AC/DC adapter (24W, 24V, 1A), Passive PoE
• Max. PoE per Port: 20W (24V)
• Voltage Range: 9–30V DC
• Max. Power Consumption: 20W (excluding PoE output)
• DC/PoE Passthrough: Yes
• ESD/EMP Protection: Air ± 24 kV, Contact ± 24 kV
• Button: Factory reset
• LEDs: System: power; Data Ports: speed/link/activity; SFP: link/activity
• Operating Temperature: -10 to 50° C (14 to 122° F)
• Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
