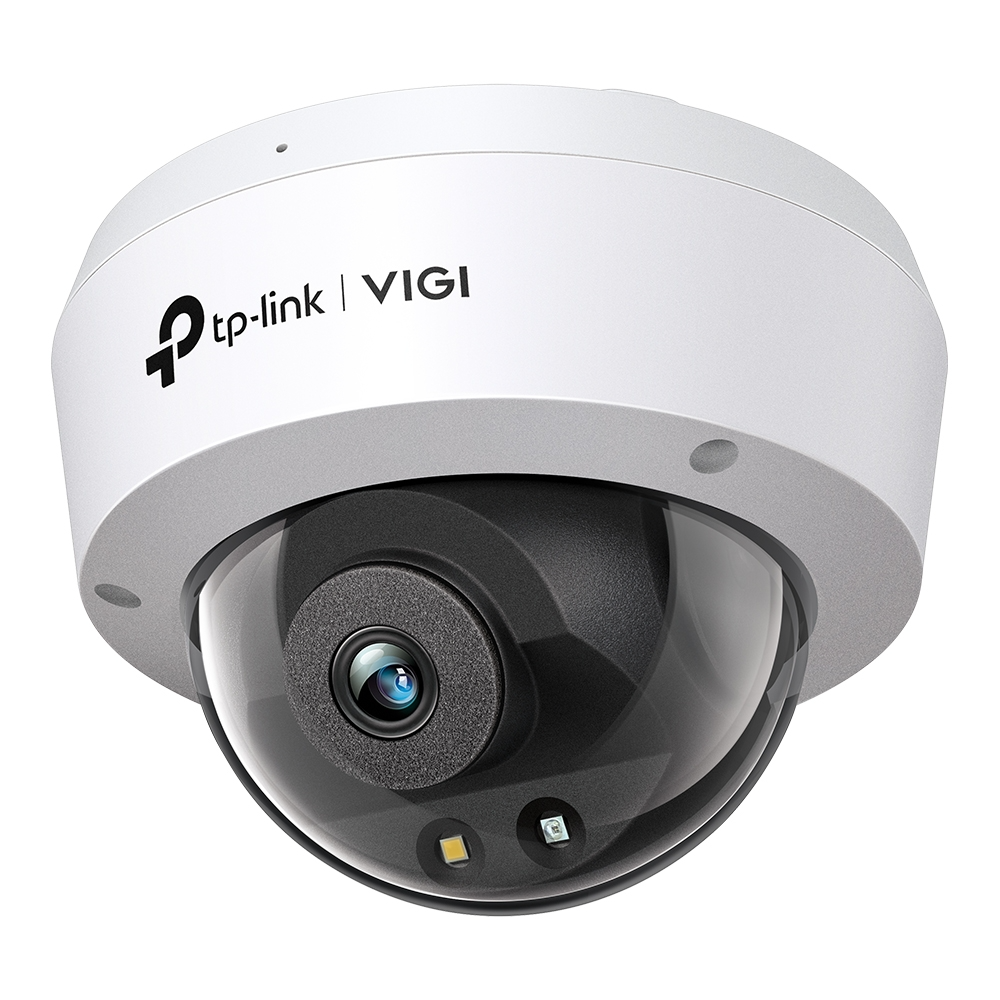

TP-Link VIGI 5MP Full-Color Dome Network Camera (VIGI C250)

The TP-Link VIGI C250 5MP Full-Color Dome Network Camera is an advanced surveillance solution engineered for high-resolution, intelligent security monitoring. With ultra-clear 5MP video quality and full-color night vision, it captures precise details around the clock, even in complete darkness. Featuring AI-powered human and vehicle classification, smart analytics, and real-time alerts, this camera enhances situational awareness and reduces false alarms. Its rugged IK10 vandal-proof and IP67 waterproof design ensures durability in harsh environments, while flexible storage, efficient H.265+ compression, and dual power options make it ideal for modern security systems.

Product Features

5MP Super-High Definition Video

Delivering 2880 × 1620 resolution, the camera captures highly detailed footage for improved identification and enhanced security monitoring.

24-Hour Full-Color Surveillance

Equipped with a high-sensitivity sensor, large-aperture lens, and supplemental lighting, it provides vivid full-color video even in low-light and nighttime conditions.

Human and Vehicle Classification

Advanced AI technology accurately distinguishes humans and vehicles from other objects, minimizing false alerts and improving detection accuracy.

Smart Detection and Instant Alerts

Actively monitors for events such as intrusion, line crossing, loitering, and scene changes, sending real-time notifications for immediate action.

People and Vehicle Analytics

Quickly search and filter recorded footage using intelligent attributes to locate specific individuals or vehicles, improving investigation efficiency.

Built-In Microphone

Capture audio within a 5-meter radius, adding context to video recordings for more comprehensive surveillance.

IK10 Vandal-Proof and IP67 Waterproof Design

Designed with rugged housing to withstand impact, dust, and water, ensuring reliable operation in demanding environments.

H.265+ Video Compression

Reduce bandwidth consumption and storage requirements while maintaining high-quality video performance.

Smart Video Enhancement Technologies

Improve image clarity with advanced features including True WDR, 3D DNR, Smart IR, and enhanced night vision capabilities.

Flexible Power and Storage Options

Supports both PoE and 12V DC power supply, with onboard microSD card storage up to 256 GB for local recording and flexible deployment.

Multiple Management Options

Easily manage your surveillance system through web interface, VIGI app, NVR, or VIGI Security Manager for complete control.

Product Specifications

• Image Sensor: 1/2.7 inch Progressive Scan CMOS
• Maximum Resolution: 2880 × 1620
• Minimum Illumination: 0.005 Lux, 0 Lux with IR or white light
• Lens Type: Fixed focal lens
• Focal Length: 2.8 mm or 4 mm
• Aperture: F1.6
• Field of View (2.8 mm): Horizontal 109°, Vertical 57°, Diagonal 128°
• Field of View (4 mm): Horizontal 90°, Vertical 48°, Diagonal 107°
• Lens Mount: M12 P 0.5
• DORI Distance (2.8 mm): Detect 64 m, Observe 27 m, Recognize 13 m, Identify 6 m
• DORI Distance (4 mm): Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m
• Angle Adjustment: Pan 0° to 360°, Tilt 0° to 85°
• Infrared Range: Up to 30 m
• White Light Range: Up to 30 m
• Video Compression: H.265+, H.265, H.264+, H.264
• Frame Rate: Up to 30 fps depending on configuration
• Bit Rate: Main stream 256 Kbps to 6 Mbps, sub-stream 64 Kbps to 512 Kbps
• Image Enhancements: True WDR (120 dB), 3D DNR, BLC, HLC, Smart IR
• Signal to Noise Ratio: 52 dB or higher
• Privacy Mask: Up to 4 configurable areas
• Audio: Built-in microphone, G.711 compression, 8 kHz sampling rate
• Network Interface: 1 RJ45 10/100 Mbps Ethernet port with PoE support
• Supported Protocols: TCP/IP, HTTP, HTTPS, RTSP, DHCP, DNS, NTP, SSL/TLS
• ONVIF Support: Profile S
• Simultaneous Live View: 3 main streams and 3 sub-streams
• Onboard Storage: MicroSD card slot supporting up to 256 GB
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: Up to 95 percent non-condensing
• Power Supply: PoE 802.3at or 12V DC
• Maximum Power Consumption: Up to 8 W
• Protection Rating: IP67 waterproof and IK10 vandal-proof
• Dimensions: 115 × 85.7 mm
• Weight: Net 0.28 kg, Gross 0.47 kg
• Certifications: CE, FCC, VCCI, KC, and others
• Included Accessories: Mounting hardware, waterproof attachments, quick start guide
