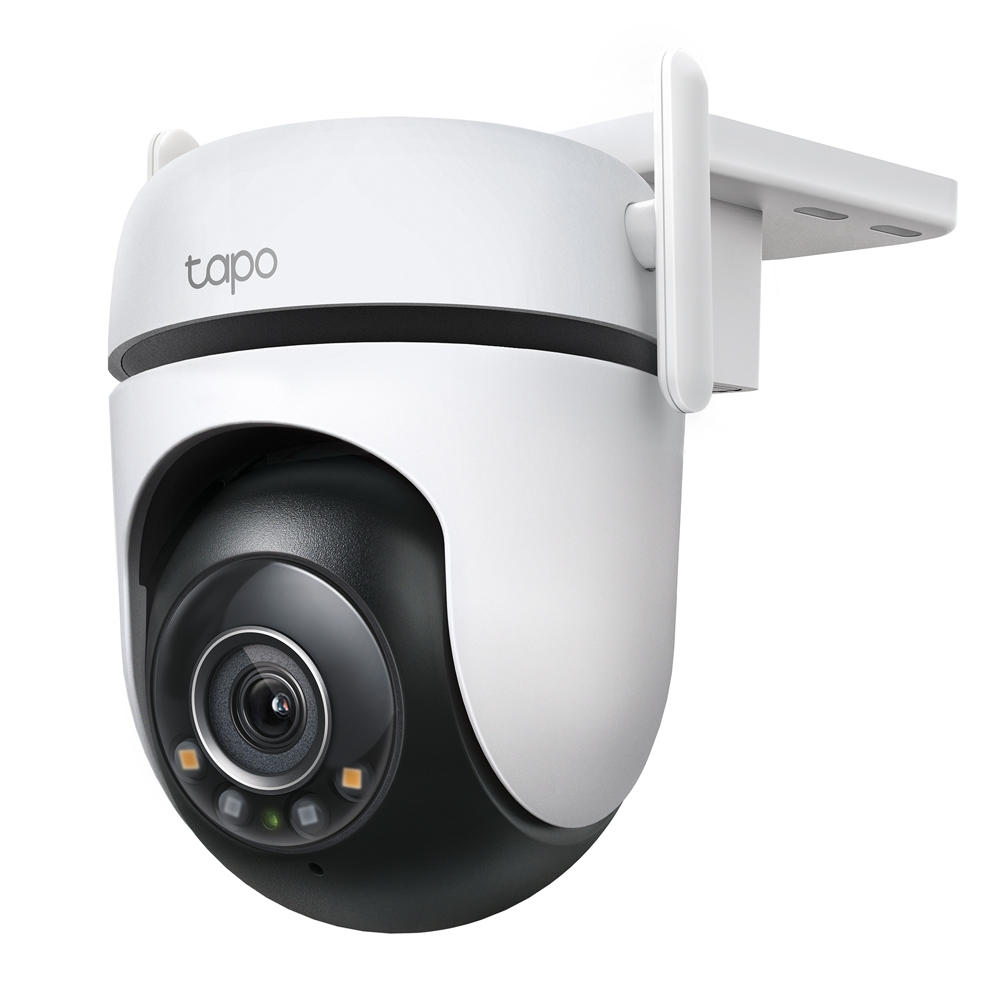

TP-Link Tapo Outdoor Pan/Tilt Security Wi-Fi Camera (Tapo C520WS)

The TP-Link Tapo C520WS is a premium outdoor pan/tilt security camera designed to deliver wide-area surveillance with 2K QHD clarity and advanced AI detection. It combines starlight color night vision, 360-degree coverage, and flexible wired or wireless connectivity to ensure reliable monitoring in various outdoor environments. Built with IP66 weatherproof protection, smart alerts, and customizable deterrence features, it provides intelligent and dependable security for homes and business premises.

Product Features

360° Pan and Tilt Coverage for Full Area Monitoring

Provides 360° horizontal rotation and 130° vertical tilt to eliminate blind spots and enable complete area surveillance.

2K QHD Ultra-Clear Video Resolution

Records video at 2560 × 1440 resolution, delivering sharper and more detailed images with 1.7× more pixels than standard 1080p cameras.

Starlight Color Night Vision

Uses an F1.6 large-aperture lens and starlight sensor to capture brighter, more colorful images in low-light conditions compared to standard night vision systems.

AI-Powered Person, Pet, and Vehicle Detection

Intelligent detection technology identifies humans, pets, and vehicles accurately, reducing false alerts and sending relevant notifications only.

Customizable Sound and Light Alarm

Allows users to record personalized audio alerts while using a bright adjustable spotlight and siren to deter intruders effectively.

Flexible Wired and Wireless Connectivity

Supports both Wi-Fi and Ethernet connections, offering installation flexibility based on network requirements.

Two-Way Audio Communication

Built-in microphone and speaker enable real-time communication for remote interaction or security warnings.

Secure Local and Cloud Storage Options

Stores recordings on a microSD card up to 512 GB or through Tapo Care cloud services for secure backup and remote access.

IP66 Weatherproof Protection

Engineered to withstand dust, rain, and harsh outdoor conditions for reliable year-round operation.

Product Specifications

• Image Sensor: 1/3 inch progressive scan CMOS starlight sensor
• Lens: 3.2 mm focal length, F1.6 aperture
• Field of View: 112° diagonal, 95° horizontal, 53° vertical
• Night Vision: 850 nm IR LED up to 29.9 m with full-color night vision
• Lighting: 2 built-in spotlights
• Pan Range: 340° rotation (360° coverage)
• Tilt Range: 90° mechanical tilt (145.2° coverage)
• Maximum Resolution: 2560 × 1440 (2K QHD 4MP)
• Frame Rate: 15 to 30 fps
• Digital Zoom: 12×
• Video Compression: H.264
• Image Enhancement: 3D DNR, BLC
• Audio: Built-in microphone and speaker
• Audio Communication: Two-way audio with noise cancellation
• Siren Volume: 93 dB
• AI Detection: Motion, person, pet, vehicle detection, line-crossing, tamper detection
• Activity Zones: Supported
• Notifications: System alerts with snapshot support
• Network Connectivity: Wi-Fi or Ethernet
• Wireless Standard: IEEE 802.11b/g/n, 2.4 GHz
• Ethernet Port: 10/100 Mbps RJ45
• RTSP Support: Yes
• ONVIF Support: Yes
• Security: On-device machine learning, 128-bit AES encryption, SSL/TLS, WPA/WPA2-PSK
• Power Source: 9V DC adapter
• Input Voltage: 100–240 V, 50/60 Hz
• Output Voltage: 9V, 0.85A
• Weather Resistance: IP66 rated
• Mounting Options: Ceiling-mounted, wall-mounted, pole-mounted (accessories not included)
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 0% to 90% RH non-condensing
• Dimensions: 123.8 × 123 × 90 mm
• Package Content: Camera unit, power adapter, mounting bracket, mounting template, anchors, screws, bracket screws, waterproof seal, waterproof cable attachments, quick start guide
