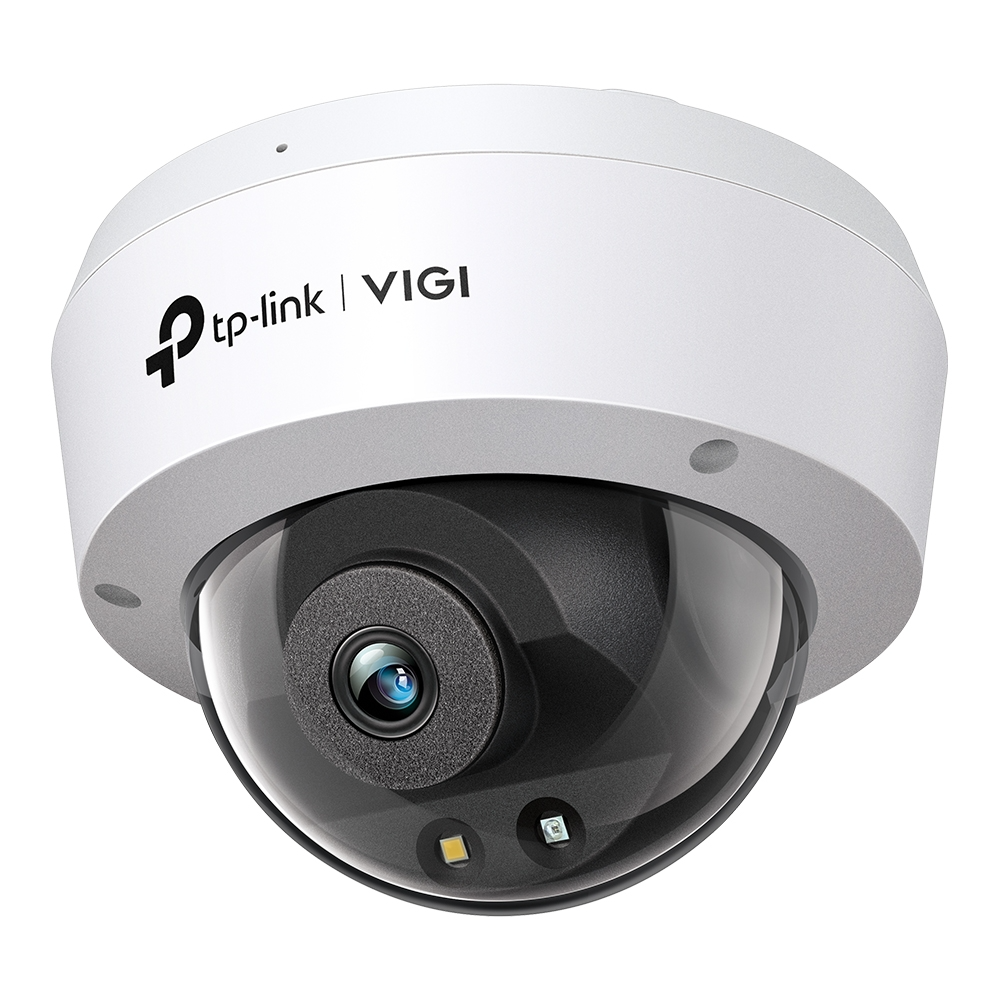

TP-Link VIGI 4MP Full-Color Dome Network Camera (VIGI C240)

The TP-Link VIGI C240 4MP Full-Color Dome Network Camera is a high-performance surveillance solution built for advanced security monitoring in both residential and commercial environments. Delivering ultra-clear 4MP resolution and 24-hour full-color video, it ensures every detail is captured with precision, even in low-light conditions. Equipped with intelligent detection features, built-in audio recording, and durable IK10 vandal-proof and IP67 waterproof protection, this camera provides reliable, around-the-clock security. With flexible storage options, efficient H.265+ compression, and dual power supply support, it offers a scalable and cost-effective solution for modern surveillance systems.

Product Features

4MP Super-High Definition Video

Capture crystal-clear footage at 2560 × 1440 resolution, delivering enhanced detail and improved image clarity for accurate monitoring.

24-Hour Full-Color Surveillance

Maintain full-color video recording day and night using a high-sensitivity sensor, large-aperture lens, and integrated white light illumination.

Human and Vehicle Classification

Advanced AI detection distinguishes between people and vehicles, reducing false alerts and improving the efficiency of security monitoring.

Smart Detection and Alerts

Receive instant notifications for intrusion, line crossing, region entry or exit, object removal, tampering, and abnormal sound detection.

Built-In Microphone

Record audio within a 5-meter radius, adding an extra layer of context to video surveillance with synchronized sound capture.

IK10 Vandal-Proof and IP67 Waterproof Design

Engineered with rugged housing to withstand harsh weather conditions, dust, and physical impact, ensuring long-term reliability.

H.265+ Video Compression

Reduce bandwidth usage and storage requirements without compromising video quality, optimizing system performance and cost efficiency.

Smart Video Enhancement Technologies

Enhance image quality with features such as WDR, 3D DNR, Smart IR, and advanced image processing for clear footage in challenging lighting conditions.

Flexible Power Options

Supports both Power over Ethernet and 12V DC power supply, simplifying installation and offering deployment flexibility.

Flexible Management and Storage

Manage your surveillance system via web interface, NVR, VIGI app, or VIGI Security Manager, with support for onboard microSD storage up to 512 GB.

Product Specifications

• Image Sensor: 1/3 inch Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440
• Minimum Illumination: Color 0.005 Lux, 0 Lux with IR or white light
• Lens Type: Fixed focal lens
• Focal Length: 2.8 mm or 4 mm
• Aperture: F1.6
• Field of View (2.8 mm): Horizontal 95.7°, Vertical 51.7°, Diagonal 113.0°
• Field of View (4 mm): Horizontal 79.7°, Vertical 42.9°, Diagonal 93.9°
• Lens Mount: M12
• DORI Distance (2.8 mm): Detect 64 m, Observe 27 m, Recognize 13 m, Identify 6 m
• DORI Distance (4 mm): Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m
• Angle Adjustment: Pan 0° to 355°, Tilt 0° to 75°
• Infrared Range: Up to 30 m
• White Light Range: Up to 30 m
• Video Compression: H.265+, H.265, H.264+, H.264
• Frame Rate: Up to 30 fps depending on configuration
• Bit Rate: Main stream 256 Kbps to 4 Mbps, sub-stream 64 Kbps to 512 Kbps
• Image Enhancements: WDR, 3D DNR, BLC, HLC, Smart IR
• Signal to Noise Ratio: 52 dB or higher
• Privacy Mask: Up to 4 configurable areas
• Audio: Built-in microphone, G.711 compression, 8 kHz sampling rate
• Network Interface: 1 RJ45 10/100 Mbps Ethernet port with PoE support
• Supported Protocols: TCP/IP, HTTP, HTTPS, RTSP, DHCP, DNS, NTP, IPv4, IPv6, SSL/TLS, FTP/SFTP
• ONVIF Support: Profile S, T, and G
• Simultaneous Live View: 3 main streams and 3 sub-streams
• Onboard Storage: MicroSD card slot supporting up to 512 GB
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: Up to 95 percent non-condensing
• Power Supply: PoE 802.3af/at or 12V DC
• Maximum Power Consumption: Up to 6 W
• Protection Rating: IP67 waterproof and IK10 vandal-proof
• Dimensions: 115 × 86 × 115 mm
• Weight: Net 0.28 kg, Gross 0.46 kg
• Certifications: CE, FCC, UKCA, and others
• Included Accessories: Mounting hardware, waterproof attachments, quick start guide
