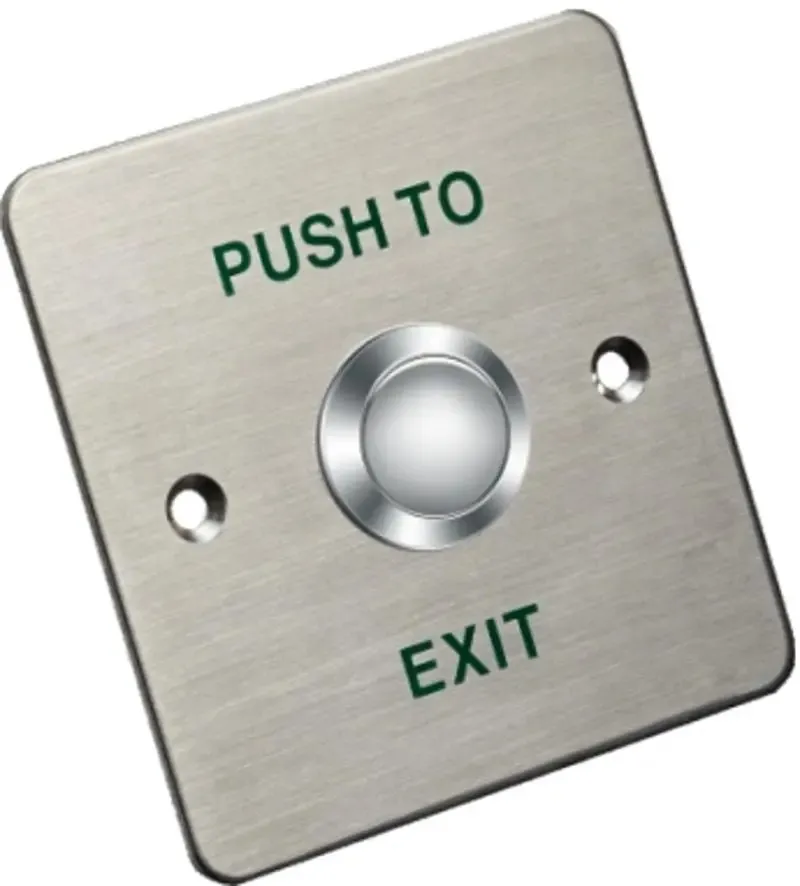

Hikvision Aluminum Alloy Panel Exit and Emergency Button (DS-K7P01)

The Hikvision DS-K7P01 Exit and Emergency Button is a durable and reliable access control accessory designed for secure door release applications in residential, commercial, and industrial environments. Built with a high-quality aluminum alloy panel and a robust metal button, it ensures long-lasting performance and consistent operation. With support for NO/NC/COM signal output and tested for up to 500,000 uses, this exit button is ideal for high-traffic areas requiring dependable emergency or exit control.

Product Features

Durable Aluminum Alloy Panel

Constructed with a sandblasted aluminum alloy panel and metal button for enhanced strength, durability, and resistance to wear.

Reliable Signal Output

Supports NO, NC, and COM contact outputs, ensuring compatibility with a wide range of access control systems.

High Endurance Performance

Tested to withstand up to 500,000 presses, making it suitable for high-usage environments.

Compact and استاندard Design

Designed with a standard size for easy installation on hollow door frames and embedded electrical boxes.

Wide Voltage Support

Operates with a maximum power supply of 36 VDC and 3 A, providing flexible integration options.

Ideal for Emergency and Exit Use

Perfect for emergency door release and exit control in offices, buildings, and secure facilities.

Product Specifications

• Power supply: Max. 36 VDC, 3 A
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 0 to 95% (relative humidity)
• Dimensions: 86 mm × 86 mm × 28.9 mm (3.39″ × 3.39″ × 1.14″)
• Material: Aluminum alloy panel with sandblast finish, metal button
• Signal output: NO/NC/COM contact
• Door type: Hollow door frame and embedded electrical box
• Aging test: Passed 500,000 cycles
