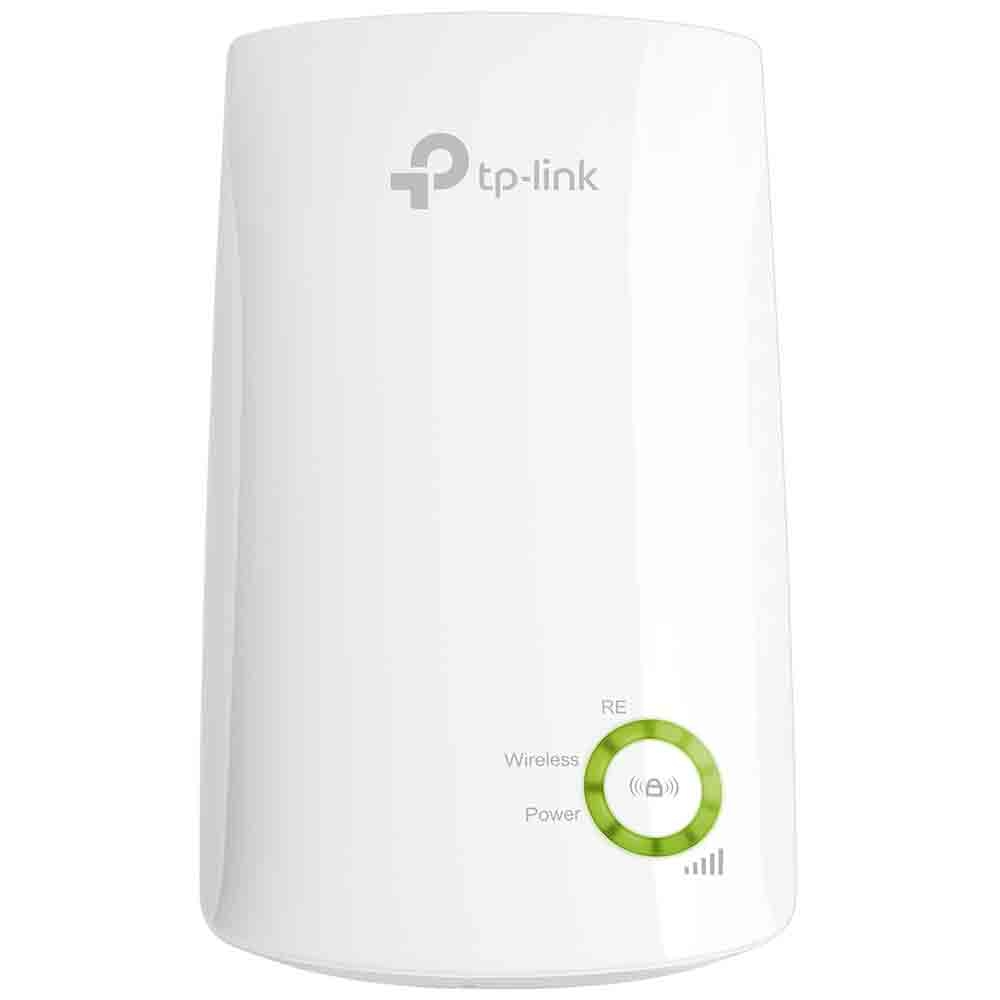

TP-Link 300Mbps Wi-Fi Range Extender (TL-WA854RE)

The TP-Link 300Mbps Wi-Fi Range Extender (TL-WA854RE) is a compact and efficient solution designed to eliminate Wi-Fi dead zones and extend stable wireless coverage throughout your home or office. Delivering speeds up to 300Mbps on the 2.4GHz band, this wall-mounted range extender strengthens your existing network signal for smoother streaming, browsing, and online gaming. With easy WPS setup, Tether app management, and LED Night Mode control, the TL-WA854RE offers convenient and reliable wireless expansion.

Product Features

Extended Wi-Fi Coverage

Range Extender mode boosts your existing wireless signal into previously unreachable or hard-to-wire areas, improving overall network coverage and connectivity.

300Mbps Wireless Performance

Supports wireless speeds up to 300Mbps on the 2.4GHz frequency band, providing reliable performance for HD streaming, video calls, and everyday internet use.

Easy Push-Button Setup

Quickly expand your Wi-Fi network with a simple press of the WPS button for fast and secure pairing with your router.

Tether App Management

Manage and monitor your extender easily using the TP-Link Tether app from your smartphone or tablet for convenient configuration and control.

Compact Wall-Mounted Design

Miniature size and plug-in design allow flexible placement without occupying desk space, making it ideal for apartments, offices, and multi-room homes.

LED Control with Night Mode

LED Control function includes Night Mode, allowing you to turn off indicator lights during nighttime for a more comfortable sleep environment.

Advanced Wireless Security

Supports 64/128-bit WEP and WPA/WPA2-PSK encryption to protect your wireless network against unauthorized access.

Product Specifications

• Interface: None
• Buttons: WPS Button, Reset Button
• Input Power: 100–240V~50/60Hz
• Maximum Power Consumption: 3.3W
• Dimensions (W × D × H): 65.8 × 75.2 × 110 mm
• Antenna: 2 Internal Antennas
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4GHz
• Signal Rate:
  • 11n: Up to 300Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
• Working Mode: Range Extender
• Reception Sensitivity (2.4GHz):
  • 11g 54Mbps: -80dBm
  • 11n HT20 MCS7: -79dBm
  • 11n HT40 MCS7: -76dBm
• Wireless Functions:
  • Enable/Disable Wireless Radio
  • Access Control
  • LED Control
  • Power Schedule
  • Wi-Fi Coverage
• Wireless Security:
  • 64/128-bit WEP
  • WPA/WPA2-PSK encryption
• Transmission Power (CE): <15dBm
• Network Services Enabled by Default:
  • Web Server (HTTP/HTTPS) – Port 80/443, Protocol TCP
  • DHCP Server – Port 67, Protocol UDP
  • App Management – Port 20001 (TCP), Port 20002 (UDP)
• Certification: CE, RoHS
• Package Contents:
  • 300Mbps Wi-Fi Range Extender TL-WA854RE
  • Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 8.1, 10; Mac OS; NetWare; UNIX; Linux; Internet Explorer 11; Firefox 12.0; Chrome 20.0; Safari 4.0 or other Java-enabled browser
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
