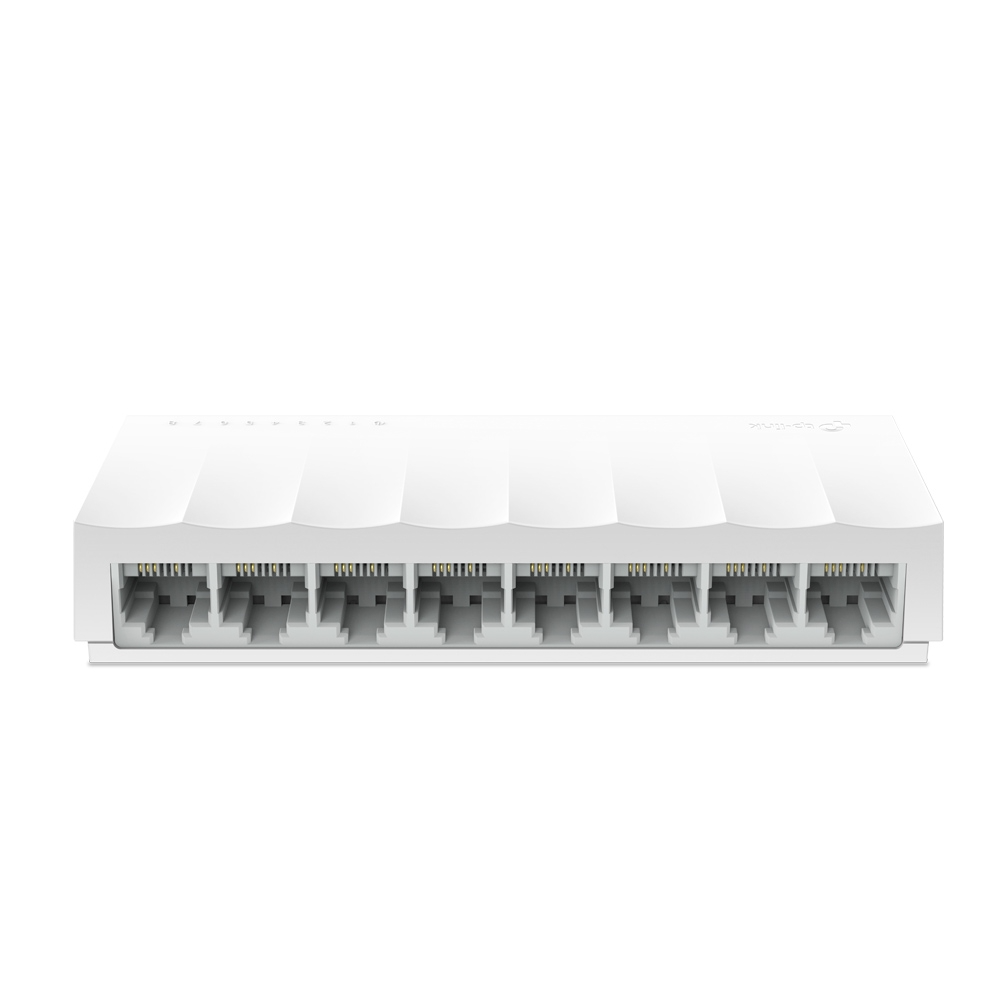

TP-Link 8-Port 10/100Mbps Desktop Network Switch (TL-LS1008)
The TP-Link TL-LS1008 is a high-performance 8-port desktop network switch designed to expand your wired network efficiently. Each port supports 10/100Mbps Auto-Negotiation with Auto-MDI/MDIX, allowing seamless connections without crossover cables. Equipped with Green Ethernet technology, it reduces power consumption while maintaining reliable performance. The switch features a compact, fanless desktop design for quiet operation and easy integration into home or office environments. Plug-and-play functionality ensures instant connectivity without any configuration, making the TL-LS1008 an ideal solution for expanding wired networks quickly and efficiently.
Product Features
8-Port 10/100Mbps Connectivity
Provides eight RJ45 ports with Auto-Negotiation and Auto-MDI/MDIX, offering hassle-free network expansion for desktops, laptops, and other Ethernet-enabled devices.
Green Ethernet Technology
Automatically adjusts power usage according to cable length and activity, reducing energy consumption and supporting eco-friendly operation.
Reliable Data Transfer
IEEE 802.3X flow control and back pressure features ensure stable and efficient transmission of data across all ports.
Compact and Quiet Design
The fanless plastic desktop design allows quiet operation while fitting easily into small workspaces or home offices.
Easy Plug-and-Play Setup
No configuration is required, enabling immediate network connectivity without technical setup.
Product Specifications
- Interface: 8× 10/100Mbps Auto-Negotiation RJ45 Ports, Auto-MDI/MDIX
- Fan Quantity: Fanless
- External Power Supply: External Adapter (Output: 5VDC / 0.6A)
- Dimensions (W x D x H): 4.9 × 1.9 × 0.9 in (124.6 × 48.7 × 22.8 mm)
- Max Power Consumption: 2.64W
- Max Heat Dissipation: 9.002 Btu/hr
- Advanced Features: Green Technology, 802.3X Flow Control, Back Pressure
- Transmission Method: Store and Forward
- Certification: CE, RoHS
- Package Content: 8-Port 10/100Mbps Desktop Switch, Power Adapter, Installation Guide
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
