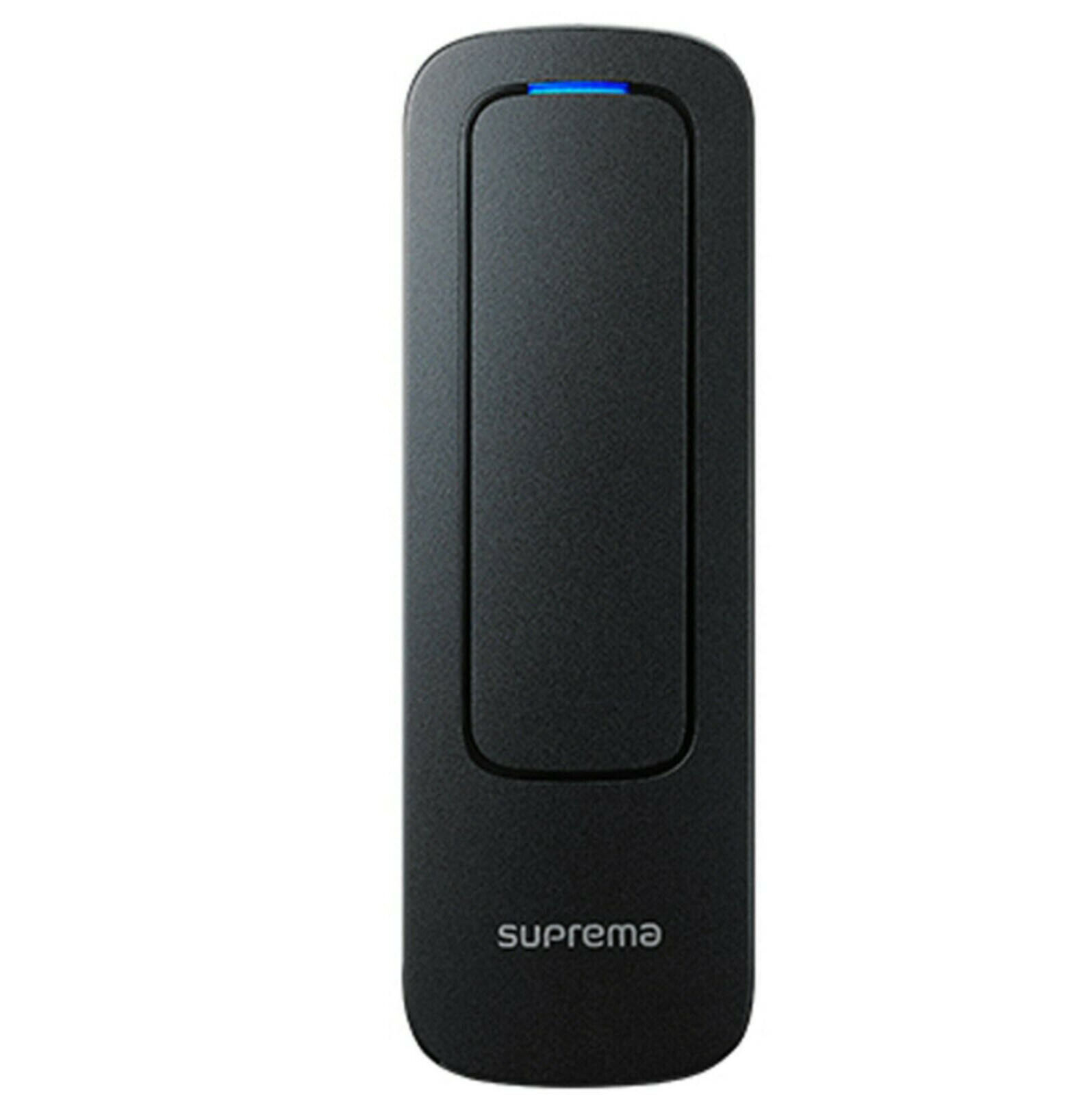

Suprema XPass 2 Outdoor Compact RFID Reader (XP2-MDPB)

The Suprema XPass 2 (XP2-MDPB) is a high-performance outdoor RFID reader designed for access control in narrow spaces such as door frames. Its slim mullion-type design, advanced dual-frequency RFID support, and mobile credential capability via NFC and BLE make it ideal for corporate campuses, industrial sites, and high-traffic entry points. Built to withstand harsh environments, the XP2-MDPB offers IP67 dust and water protection, IK08 vandal resistance, and seamless integration with the Suprema BioStar 2 platform for centralized management and secure, reliable access control.

Product Features

Dual-Frequency RFID and Mobile Access

Supports 125kHz EM cards and 13.56MHz MIFARE, MIFARE Plus, DESFire (EV1/EV2/EV3), and FeliCa cards, along with NFC and BLE-enabled smartphones for mobile credentials.

Rugged Outdoor Durability

IP67-rated for dust and water resistance and IK08-rated for vandal protection, ensuring reliable operation in harsh outdoor environments.

High-Capacity Performance

Supports up to 200,000 users and 1,000,000 text logs, making it suitable for high-traffic locations and large-scale access control deployments.

Flexible Connectivity

Provides PoE (IEEE 802.3af), RS-485, Wiegand, and TCP/IP interfaces, allowing integration as a standalone device or within distributed access control systems.

Centralized Management

Fully compatible with BioStar 2 for real-time monitoring, zone management, and remote door control, with AES 128-bit encryption for secure mobile credential communication.

Slim, Mullion-Type Design

Compact 48mm width fits narrow door frames and tight spaces while maintaining robust hardware performance and reliability.

Product Specifications

• Processor & Memory: 1.0 GHz CPU, 4GB Flash, 64MB RAM
• User Capacity: 200,000 users (1:1 and 1:N), 1,000,000 text logs
• RFID Frequencies: 125kHz (EM), 13.56MHz (MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa)
• Mobile Credential Support: NFC, BLE
• Environmental Protection: IP67 (dust/waterproof), IP65 rated
• Vandal Resistance: IK08 reinforced resin housing
• Interfaces: TCP/IP (10/100 Mbps), RS-485 (Master/Slave), Wiegand (In/Out), 1 Relay, 2 TTL Inputs
• Power Options: 12V DC (max 0.5A), 24V DC (max 0.3A), PoE (IEEE 802.3af)
• Operating Temperature: -35°C to 65°C (-31°F to 149°F)
• Dimensions: 48 × 145 × 27 mm
• Weight: 144 g
• Encryption: AES 128-bit for BLE and NFC HCE
• Compliance: OSDP V2 for standardized communication
