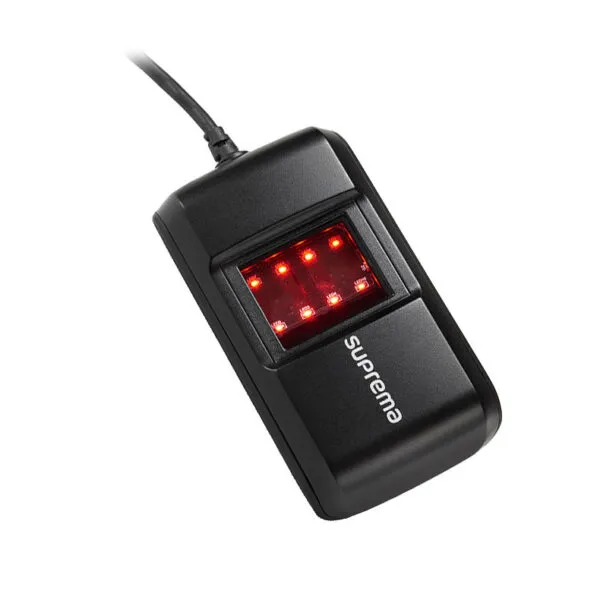

Suprema BioMini Slim 2 Ultra-slim FAP20 Authentication Scanner

The Suprema BioMini Slim 2 is an ultra-slim, high-performance optical fingerprint scanner designed for secure biometric authentication. Recognized as the world’s thinnest FBI PIV and Mobile ID FAP20 certified scanner, it features a sensor thickness of only 13.5 mm. The device combines advanced technologies such as MDR for sunlight operation, AI-based Live Finger Detection, and fast high-volume matching, making it ideal for high-security applications in banking, healthcare, government identity verification, and enterprise authentication systems.

Product Features

Ultra-Slim FAP20 Optical Sensor

Features a 13.5 mm thick sensor, meeting FBI PIV, FIPS 201, and Mobile ID FAP20 standards while providing superior image quality in a compact form factor.

MDR (Multi-Dynamic Range) Technology

Ensures consistent fingerprint image capture even under direct sunlight of up to 100,000 LUX, making it suitable for outdoor or high-brightness environments.

AI-Based Live Finger Detection (LFD)

Uses advanced machine learning to differentiate between real skin and fake fingerprint materials such as silicone, rubber, paper, or glue, complying with ISO/IEC 30107-3 PAD Levels 1 & 2.

High-Speed Matching Performance

Capable of performing up to 100,000 fingerprint matches per second on multi-core CPUs, ensuring rapid authentication in large-scale deployments.

Durable and IP65-Rated

The sensor surface is resistant to dust and water, and the scratch-free optical glass platen ensures long-term durability in demanding environments.

Broad Compatibility

Supports Windows, Linux, and Android operating systems, with SDK support for VC++, VB, C#, Java, and .NET for seamless integration into custom applications.

Product Specifications

• Sensor Type: Optical
• Resolution: 500 ppi / 256 gray levels
• Image Size: 300 × 400 pixels
• Sensing Area: 15.24 × 20.32 mm
• Platen Size: 16.5 × 21.0 mm
• Interface: USB 2.0 High Speed
• Dimensions: 72.8 × 40.7 × 18.5 mm
• Weight: ~91 g (including cable)
• MDR Technology: Supports up to 100,000 LUX sunlight operation
• Live Finger Detection: AI-based, ISO/IEC 30107-3 compliant
• High-Speed Matching: Up to 100,000 matches/sec (multi-core CPU)
• Durability: IP65-rated, scratch-free optical glass platen
• Operating Systems: Windows XP–11, Linux (Ubuntu/Debian/Fedora/CentOS), Android 4.1+
• SDK Support: VC++, VB, C#, Java, .NET
• Standards & Certification: FBI PIV, FIPS 201, Mobile ID FAP20
• Template Formats: ISO19794-2, ANSI 378
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Humidity Range: 0%–90% RH (non-condensing)
