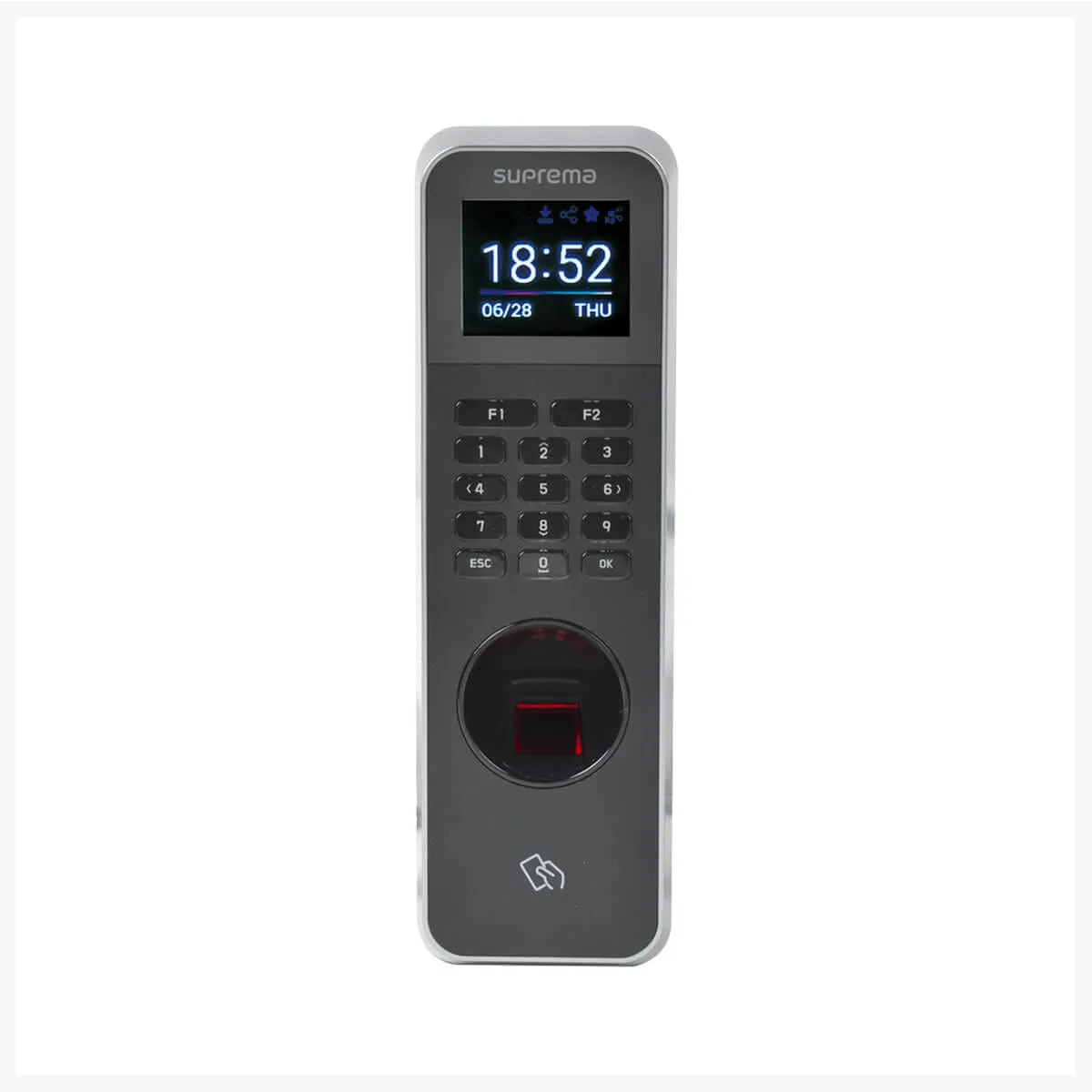

Suprema BioLite N2 Outdoor IP Fingerprint Terminal (BLN2-ODB)

The Suprema BioLite N2 (BLN2-ODB) is a rugged outdoor biometric terminal designed for secure access control and time attendance management. Featuring a high-precision optical fingerprint sensor, dual-frequency RFID support, and mobile credential compatibility via NFC and BLE, the BLN2-ODB delivers reliable multi-factor authentication in harsh environments. Its IP67-rated enclosure ensures dust and water resistance, while a powerful 1.2 GHz processor enables fast fingerprint matching and real-time monitoring, making it ideal for corporate campuses, industrial facilities, and outdoor access points.

Product Features

Multi-Credential Authentication

Supports fingerprint recognition, PIN codes, 125kHz EM cards, 13.56MHz MIFARE, MIFARE Plus, DESFire, and FeliCa cards, as well as mobile credentials via NFC and BLE.

Rugged Outdoor Design

IP67-rated for dust and water protection, capable of operating in extreme weather conditions, and built with reinforced materials for durability.

High-Performance Matching

Equipped with a 1.2 GHz CPU, the terminal performs ultra-fast 1:1 and 1:N fingerprint matching for up to 10,000 users, with a log capacity of 1,000,000 entries.

Multi-Factor Security

Supports combinations of fingerprint, PIN, and card for enhanced security in access control systems.

Flexible Connectivity

Provides TCP/IP, RS-485, and Wiegand interfaces for integration with a variety of security and access control systems, including BioStar 2 for centralized management.

Compact, User-Friendly Design

Features a 1.77-inch color TFT LCD display, 3×4 numeric keypad with navigation keys, and a slim form factor suitable for door frame installation.

Product Specifications

• CPU: 1.2 GHz processor
• Memory: 4GB Flash, 64MB RAM
• Biometric Sensor: OP6 optical sensor, 500 dpi resolution
• User Capacity: Up to 10,000 users (1:1 and 1:N)
• Log Capacity: Up to 1,000,000 text logs
• RFID Compatibility: LF 125kHz EM; HF 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa
• Mobile Access: NFC, BLE (BioStar 2 Mobile Card)
• Multi-Factor Authentication: Fingerprint + PIN + Card
• Network: TCP/IP 10/100 Mbps, auto MDI/MDI-X
• I/O Interfaces: 1 RS-485 channel (Host/Slave selectable), 1 Wiegand channel (Input/Output selectable), 2 TTL inputs, 1 internal relay
• Environmental Protection: IP67-rated dust and water resistant
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Display: 1.77-inch color TFT LCD
• Keypad: 3×4 numeric with 3 navigation keys
• Power Supply: 12V DC, max 0.4–0.6A
• Dimensions: 58 × 190 × 44 mm (W × H × D)
• Weight: 255 g (device) + 57 g (bracket)
