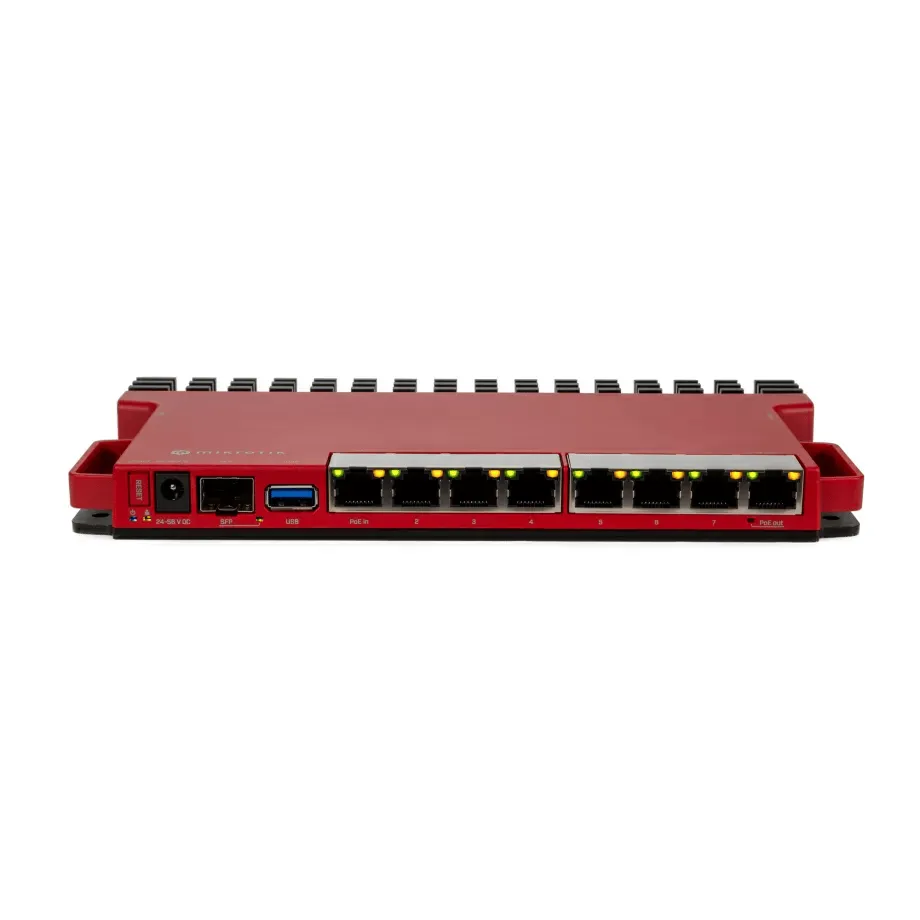

MikroTik Wired Router 2.5 Gigabit Ethernet Red (L009UiGS-RM)

The MikroTik L009UiGS-RM is a powerful wired router designed for high-performance networking in homes, offices, and data centers. This rackmount-ready version builds on the legendary RB2011 line, offering up to four times faster performance, a dual-core ARM CPU, PoE capabilities, and 2.5G SFP support. With its innovative enclosure, you can mount up to four routers in a single 1U rack space, making it ideal for efficient server room setups. The L009 series combines modern hardware with the flexibility of RouterOS v7, enabling advanced routing, firewall rules, container projects, and IPsec hardware encryption while maintaining reliable, high-speed connectivity.

Product Features

High-Speed ARM CPU

Equipped with a dual-core IPQ-5018 ARM CPU running at 800 MHz, the L009UiGS-RM delivers fast routing, filtering, and IPsec encryption with minimal CPU load.

2.5G Ethernet and PoE Support

Features eight Gigabit Ethernet ports, one with PoE-out, and an SFP cage supporting both Gigabit and 2.5G speeds, allowing seamless connectivity and device powering.

Efficient Rackmount Design

Comes with 1U rackmount accessories and a robust enclosure that doubles as a heat sink, supporting up to four routers in one rack unit for optimized server room efficiency.

USB and Peripheral Flexibility

Includes a full-sized USB 3.0 port for running container projects, connecting LTE modems, or adding storage, plus an RJ45 serial console port for direct configuration.

Ready-to-Use RouterOS

Comes preinstalled with RouterOS v7, fully licensed, and includes free software updates for a minimum of five years, ensuring long-term functionality and security.

Product Specifications

• Product code: L009UiGS-RM
• Architecture: ARM 32bit
• CPU: IPQ-5018
• CPU cores: 2
• CPU nominal frequency: 800 MHz
• CPU threads: 2
• Switch chip model: 88E6190
• RouterOS license: 5
• Operating System: RouterOS v7
• RAM: 512 MB
• Storage: 128 MB NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested ambient temperature: -40°C to 70°C
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input voltage: 24-56 V
• Max power consumption: 40 W
• Max power consumption without attachments: 8 W
• PoE-in: 802.3af/at
• Cooling type: Passive
• PoE-in input voltage: 24-56 V
• PoE-out ports: 8
• PoE-out type: Passive
• Low voltage PoE-out current limit: 1 A
• High voltage PoE-out current limit: 450 mA
• Max total PoE output: 1 A
• 10/100/1000 Ethernet ports: 8
• Number of 1G Ethernet ports with PoE-out: 1
• SFP ports: 1 (2.5G supported)
• Serial console port: RJ45
• USB ports: 1 (USB 3.0 type A, max 1.5 A)
• USB Power Reset: Yes
• Mode button: Yes
• Certifications: CE, EAC, ROHS
• IP rating: IP20
• Preinstalled operating system with free updates for a minimum of 5 years
