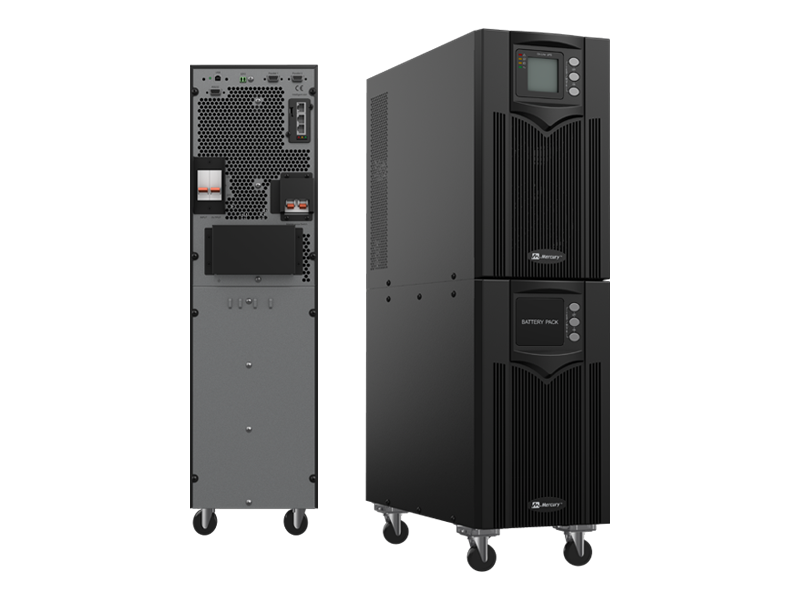

Mercury MP Pro 6k S 6KVA/6KW 1/1 Phase Online UPS

The Mercury MP Pro 6k S 6KVA/6KW Online UPS is an enterprise-grade power backup solution engineered for mission-critical IT, industrial, and medical environments. Featuring true online double-conversion technology, it delivers continuous, clean, and stable power with zero transfer time, ensuring complete protection against outages and electrical disturbances. With a unity power factor of 1.0, this UPS provides full 6kW usable power, making it highly efficient for high-load applications such as servers, data centers, and critical infrastructure systems.

Product Features

Unity Power Factor Performance

Delivers full 6kW output from its 6kVA rating, maximizing usable power and efficiency compared to lower power factor UPS systems.

True Online Double Conversion

Continuously converts incoming AC to DC and back to AC, ensuring complete isolation from power disturbances and delivering consistent output quality.

Pure Sine Wave Output

Provides clean, stable, and distortion-free power that is ideal for sensitive electronics, including servers, medical devices, and industrial equipment.

Zero Transfer Time

Ensures uninterrupted power supply with no delay when switching between mains and battery mode, preventing downtime and data loss.

Advanced Battery Management

Utilizes a high-voltage battery system with intelligent DSP-controlled charging to optimize battery performance, extend lifespan, and improve reliability.

Intelligent Monitoring and Control

Equipped with an LCD display for real-time monitoring of load levels, battery health, and voltage, along with USB, RS232, and optional SNMP support for remote management.

Comprehensive Protection

Includes safeguards against surges, spikes, overloads, short circuits, and thermal issues, ensuring maximum protection for connected equipment.

Cold Start and Generator Compatibility

Supports startup without utility power and operates efficiently with generators, making it suitable for unstable power environments.

Product Specifications

• Power Rating: 6000VA / 6000W (Unity Power Factor)
• Phase: Single phase input and output (1/1 phase)
• Input Voltage: 160–280VAC (110–280VAC at half load)
• Input Frequency: 45–65Hz auto-sensing
• Output Voltage: 208/220/230/240VAC ±1% (selectable)
• Output Waveform: Pure Sine Wave
• Total Harmonic Distortion: <2% (linear load), <6% (non-linear load)
• Transfer Time: 0ms (online mode), <4ms (ECO mode)
• Efficiency: >90% AC mode, >94% ECO mode, >85% battery mode
• Battery Configuration: 20 x 12V/9Ah sealed lead-acid batteries
• Battery Voltage: 192VDC or ±120VDC configurable system
• Recharge Time: 6–8 hours to 90% capacity
• Estimated Runtime: ~7 minutes at full load, ~20 minutes at 50% load
• Connectivity: USB, RS232, optional SNMP slot
• Display: Multifunction LCD for system status and diagnostics
• Noise Level: ≤55dB at 1 meter
• Operating Temperature: 0°C to 40°C
• Dimensions: Approximately 635 x 438 x 180 mm
• Weight: Approximately 38 kg to 60 kg depending on configuration
• Protection: Surge, overload, short circuit, thermal protection
• Advanced Features: Cold start, intelligent fan control, optional parallel capability
