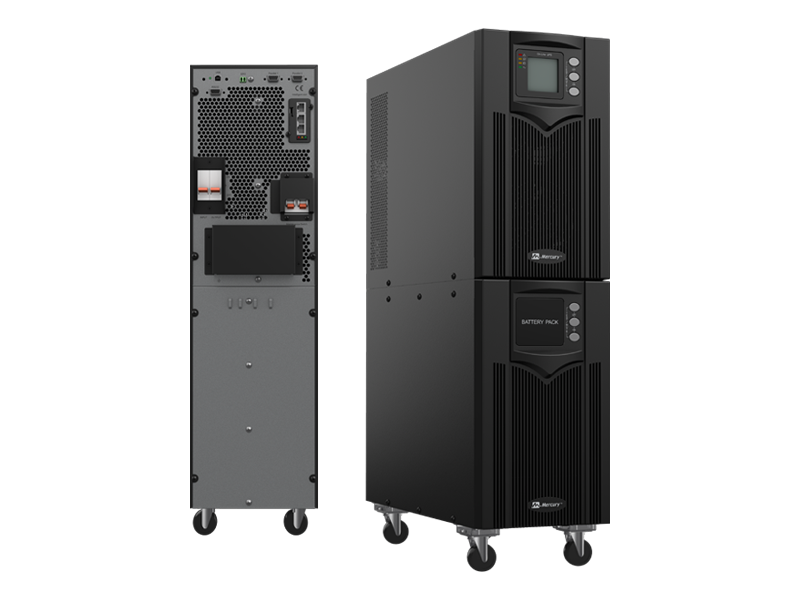

Mercury MP Pro 10k S 10KVA/10KW 1/1 Phase Online UPS

The Mercury MP Pro 10k S 10KVA/10KW Online UPS is an industrial-grade power protection solution designed for mission-critical environments such as data centers, medical facilities, and enterprise IT systems. Built with true online double-conversion technology, it delivers continuous, clean, and stable power with zero transfer time. Featuring a unity power factor of 1.0, this UPS provides a full 10kW of usable output, ensuring maximum efficiency and reliability for high-demand applications while protecting equipment from voltage fluctuations, surges, and outages.

Product Features

Unity Power Factor Output

Delivers full 10kW real power from a 10kVA rating, maximizing efficiency and supporting high-load equipment without power limitations.

True Online Double Conversion

Continuously converts AC to DC and back to AC, ensuring complete isolation from power disturbances and delivering consistent, high-quality output.

Pure Sine Wave Output

Provides clean, stable power suitable for sensitive electronics such as servers, medical devices, and industrial systems.

Zero Transfer Time

Ensures uninterrupted operation by eliminating switching delays between mains and battery power during outages.

Advanced Battery Management

Features intelligent charging and support for external battery banks, extending runtime and improving battery lifespan.

Intelligent Monitoring and Connectivity

Equipped with an LCD display for real-time diagnostics and supports USB, RS232, and optional SNMP/AS400 cards for remote monitoring and management.

Comprehensive Protection

Includes protection against surges, spikes, lightning, overloads, short circuits, and thermal issues, ensuring maximum equipment safety.

Parallel Redundancy Support

Supports N+X parallel configuration for up to three units, enhancing system reliability and scalability for enterprise environments.

Generator Compatibility and Cold Start

Operates efficiently with generators and allows startup directly from batteries during power outages.

Product Specifications

• Power Rating: 10000VA / 10000W (Unity Power Factor)
• Phase: Single phase input and output (1/1 phase)
• Input Voltage: 110–286VAC wide range
• Input Frequency: 40Hz – 70Hz auto-sensing
• Input Power Factor: ≥0.99 at full load
• Output Voltage: 208/220/230/240VAC selectable, ±1% regulation
• Output Waveform: Pure Sine Wave
• Total Harmonic Distortion: <2% (linear load), <5% (non-linear load)
• Crest Factor: 3:1
• Efficiency: ≥92% AC mode
• Transfer Time: 0ms (online mode), <4ms (ECO mode)
• Battery Voltage: ±120VDC system
• Battery Configuration: 20 x 12V/8.2Ah or 9Ah VRLA batteries
• Backup Time: ~5 minutes at full load, ~13 minutes at half load
• Recharge Time: 6–8 hours to 90% capacity
• Charging Current: 1A standard (configurable up to 10A for extended models)
• Connectivity: USB, RS232, intelligent slot for SNMP or AS400
• Display: Multifunction LCD for system monitoring and diagnostics
• Noise Level: ≤55dB at 1 meter
• Operating Temperature: 0°C to 40°C
• Dimensions: Approximately 270 x 570 x 720 mm
• Weight: Approximately 55 kg to 92 kg depending on configuration
• Protection: Surge, overload, short circuit, thermal protection, EPO support
• Advanced Features: Parallel redundancy, intelligent fan control, cold start capability
