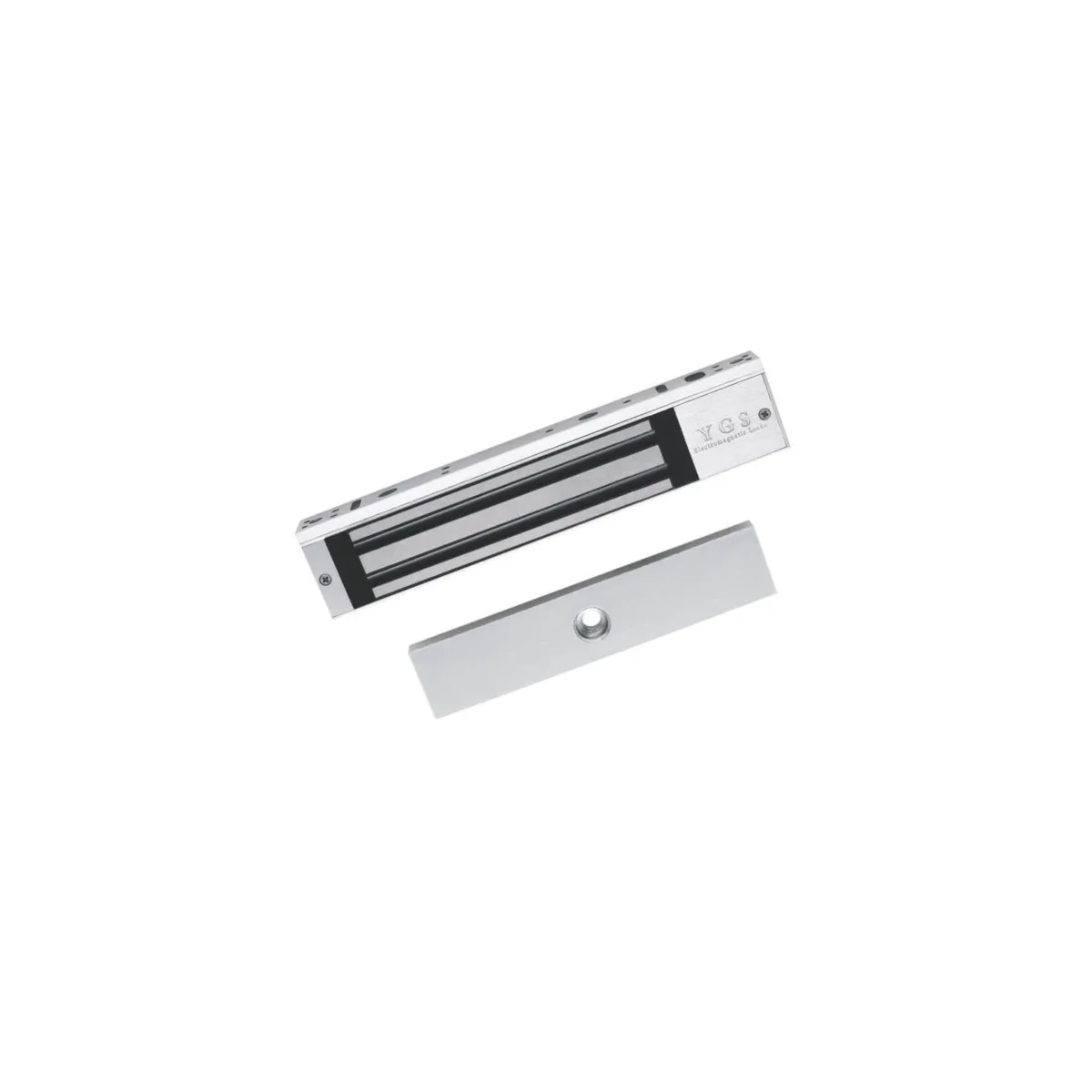

Hikvision Value Series Single Door Magnetic Lock (DS-K4H258S)
KSh 4,500.00
- Indicator: Green LED for working status
- Power supply: 12 VDC, 340 mA × 2 (supports 24 VDC)
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 0 to 95% (relative humidity)
- Lock body dimensions: 238 mm × 45 mm × 25 mm (9.4″ × 1.8″ × 1.0″)
- Armature plate dimensions: 182 mm × 38 mm × 12.5 mm (7.2″ × 1.5″ × 0.5″)
- 16% VAT and delivery charges will be calculated at checkout.
- Standard packages / medium goods delivery: KES 500 flat rate.
- Bulky or heavy items: delivery charges will be quoted before confirmation.
Hikvision Value Series Single Door Magnetic Lock (DS-K4H258S)
The Hikvision DS-K4H258S Value Series Single Door Magnetic Lock provides reliable, high-strength security for a variety of door types including wooden, glass, metal, and fireproof doors. With a static linear thrust of up to 280 kg (617 lbs), abrasion-resistant materials, and a clear LED indicator for lock status, this magnetic lock ensures safe and durable operation. Its dual voltage support and eco-friendly construction make it suitable for both residential and commercial installations.
Product Features
High Strength Magnetic Lock
Supports a static linear thrust of 280 kg (617 lbs) to provide strong and secure locking for single or double doors.
Dual Voltage Power Supply
Operates with 12 VDC (default) or 24 VDC, offering flexible installation options.
Suitable for Multiple Door Types
Works effectively on wooden, glass, metal, and fireproof doors, making it versatile for various applications.
LED Status Indicator
Green LED clearly displays the working status of the lock for easy monitoring.
Durable and Eco-Friendly Materials
Constructed with abrasion-proof and environmentally friendly electroplated materials for long-lasting performance.
Easy Unlock Method
Unlocks reliably via current interruption for quick and safe access.
Product Specifications
- Indicator: Green LED for working status
- Power supply: 12 VDC, 340 mA × 2 (supports 24 VDC)
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 0 to 95% (relative humidity)
- Lock body dimensions: 238 mm × 45 mm × 25 mm (9.4″ × 1.8″ × 1.0″)
- Armature plate dimensions: 182 mm × 38 mm × 12.5 mm (7.2″ × 1.5″ × 0.5″)
- Weight: 2.1 kg (4.6 lb)
- Material: Shell – hard anodizing electroplating; Lock body – eco-friendly nickel electroplating; Armature plate – eco-friendly zinc electroplating
- Maximum thrust: 280 kg (617 lb)
- Door type: Single leaf, double leaf, wooden, glass, metal, fireproof
- Unlock method: Current interruption
- Surface temperature: ≤ Ambient temperature +20 °C (68 °F)
