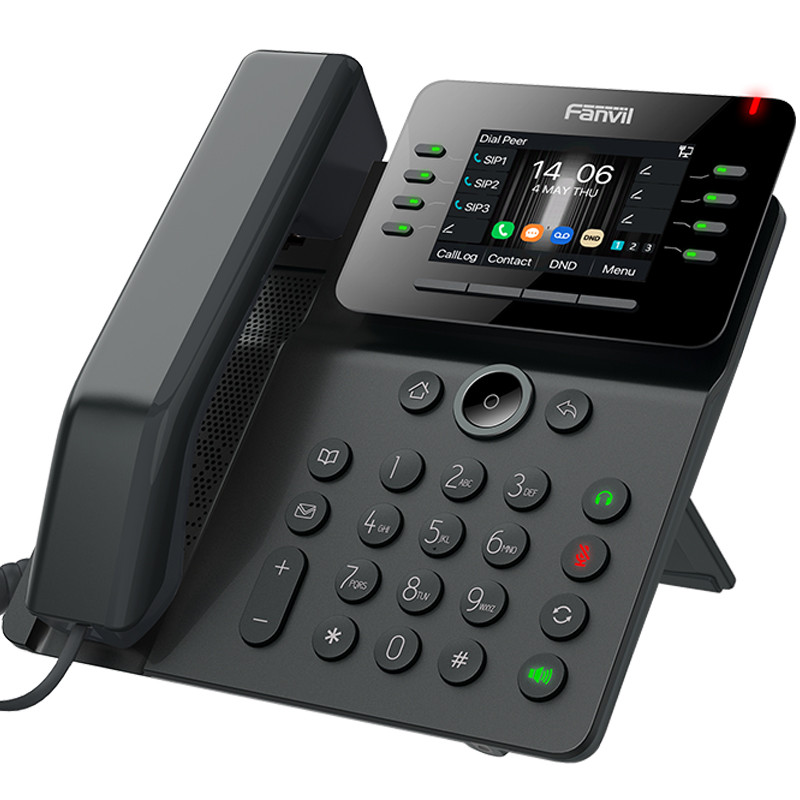

Fanvil V63 Prime Business IP Phone

The Fanvil V63 is a professional-grade business IP phone designed for small to medium-sized enterprises. Combining executive-level features with a sleek, minimalist design, it supports up to 6 SIP lines and offers HD audio, advanced conferencing, and flexible connectivity options. Its USB 2.0 port allows expansion for Wi-Fi, Bluetooth, and USB headsets, making the V63 an adaptable solution for modern, dynamic office environments.

Product Features

Vivid Color Display

Equipped with a 2.8-inch (320×240) color LCD screen, the V63 provides clear visual navigation and intuitive call management for efficient operations.

Multi-Line Support

Supports up to 6 SIP lines, enabling high-volume call handling and multitasking for busy office workflows.

High-Definition Audio

Delivers HD voice quality on both handset and full-duplex speakerphone, with wideband codecs (Opus, G.722) and narrowband support (G.711a/u, G.723.1, G.726, G.729A/B, iLBC). Acoustic Echo Cancellation (AEC), Voice Activity Detection (VAD), Comfort Noise Generation (CNG), and Background Noise Estimation (BNE) ensure crystal-clear audio.

Gigabit Connectivity

Dual 10/100/1000 Mbps Ethernet ports with integrated PC bypass provide high-speed networking, simplifying installation while maintaining fast and reliable communication.

Advanced Conferencing

Supports 6-way local audio conferencing, allowing teams to collaborate directly from the desk phone without external conference bridges.

Programmable Keys

Includes 7 physical DSS keys with LED indicators, expandable to 21 programmable keys across 3 pages for BLF, speed dial, and call transfer functions.

USB Expansion & Headset Support

Features a USB 2.0 port for Wi-Fi (via Fanvil WF20), Bluetooth (via Fanvil BT20), USB headsets, or local call recording. Compatible with wireless EHS headsets from Jabra (EHS20) and Poly (APD-80).

Security & VPN

Supports enterprise-grade encryption (AES128/AES256), TLS, SRTP, 802.1x network access control, and VPN protocols (L2TP/OpenVPN) to secure communications.

Product Specifications

• Operating System: Linux-based
• Display: 2.8-inch color LCD (320×240 pixels)
• SIP Lines: Supports up to 6 SIP accounts
• Networking: Dual 10/100/1000 Mbps Ethernet ports with PC bypass
• Power: PoE (IEEE 802.3af Class 2) or optional DC 5V/2A adapter
• Power Consumption: Adapter: 0.82W – 4.36W; PoE: 1.28W – 6.3W
• Audio Codecs: Wideband – Opus, G.722; Narrowband – G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Acoustic Features: Full-duplex Acoustic Echo Cancellation (AEC), Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Background Noise Estimation (BNE)
• Keypad: 39 keys total, including 7 DSS keys (expandable to 21), 6 dedicated function keys (Contact, Hold, MWI, Mute, Headset, Redial), 4 soft keys
• Phonebook: 1,000 local entries; supports XML/LDAP remote phonebook
• Conferencing: 6-way local audio conferencing
• USB Expansion: Supports Wi-Fi (WF20), Bluetooth (BT20), USB headsets, and local call recording
• Headset Ports: EHS support for Jabra (EHS20) and Poly (APD-80)
• Installation: Desktop stand with adjustable angles; wall-mountable
• Security & Protocols: AES128/AES256, TLS, SRTP, 802.1x, VPN (L2TP/OpenVPN), SIP2.0, IPv4/IPv6, QoS
• Dimensions (45° Stand): 203.85 x 170.76 x 166.7 mm
• Weight: ~0.63 kg (device), ~1.1 kg (package)
• Box Contents: Fanvil V63 IP Phone, HD handset, RJ9 handset cord, 1.5m CAT5e Ethernet cable, desktop stand, Quick Installation Guide
