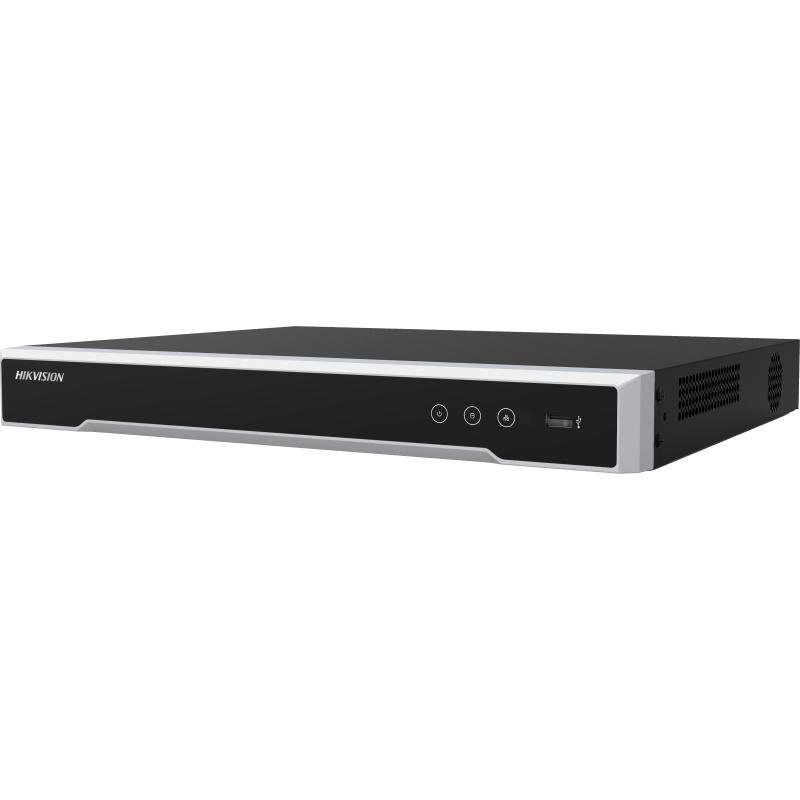

Hikvision DS-7616NI-Q2/16P 16-Channel 4K NVR with 16 PoE Ports

The Hikvision DS-7616NI-Q2/16P 16-Channel 4K NVR is a professional-grade network video recorder engineered for high-resolution, enterprise-level surveillance systems. It supports up to 16 IP camera inputs with H.265+/H.265/H.264+/H.264 compression, enabling efficient storage without compromising video quality. With 4K HDMI output, VGA output, 16 PoE ports for plug-and-play camera connections, and dual SATA interfaces supporting up to 8 TB per drive, this NVR provides a reliable, high-performance solution for monitoring large areas such as offices, retail locations, and industrial facilities. Motion Detection 2.0 with human and vehicle analysis enhances security monitoring for intelligent alerts and automation.

Product Features

Intelligent Motion Detection

Features Motion Detection 2.0 with human/vehicle analysis for advanced security alerts and automation.

High-Capacity Multi-Channel Recording

Supports up to 16 IP cameras with synchronous 16-channel playback for comprehensive monitoring.

Advanced Video Compression

H.265+/H.265/H.264+/H.264 formats reduce storage and network load while maintaining clear image quality.

4K HDMI and VGA Output

Supports high-resolution 4K output on HDMI and flexible resolutions on VGA for versatile display options.

PoE Plug-and-Play

16 built-in PoE interfaces provide both power and data over a single cable, simplifying installation.

Dual SATA Storage

Two SATA interfaces support up to 8 TB per HDD for long-term, high-capacity recording.

Remote Access and Networking

Supports TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, and HTTPS protocols for flexible remote monitoring.

Product Specifications

• Human/Vehicle Analysis: 4
• IP Video Input: 16 channels
• HDMI Output: 1-ch, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 80 Mbps
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Decoding Format: H.265+, H.265, H.264+, H.264
• Decoding Capability: 1-ch @ 8 MP (30 fps) / 5-ch @ 1080p (30 fps)
• Synchronous Playback: 16-ch
• Recording Resolution: 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet
• PoE Interface: 16 × RJ-45 10/100 Mbps self-adaptive Ethernet, Power ≤150 W, Standard IEEE 802.3 af/at
• RAID Type: No RAID
• SATA Interface: 2, up to 8 TB per HDD
• USB Interface: 2 × USB 2.0
• Power Supply: 100–240 V~, 50/60 Hz, 3.2 A max
• Power Consumption: ≤15 W
• Operating Temperature: -10 to +55º C (+14 to +131º F)
• Operating Humidity: 10% to 90%
• Chassis: 1U
• Dimensions (W × D × H): 385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″)
• Weight: ≤2.6 kg (5.7 lb)
