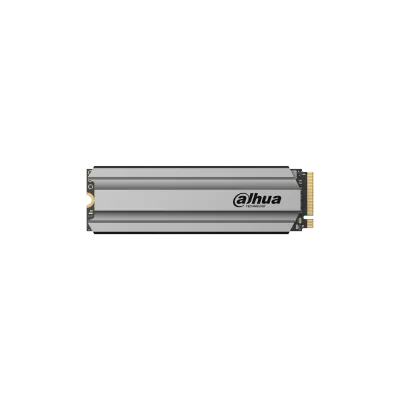

Dahua 1TB NVMe M.2 PCIe Gen 3.0 x4 2230 SSD (DHI-SSD-C900VND1TB)

The Dahua DHI-SSD-C900VND1TB is a high-performance 1TB NVMe M.2 2230 SSD built for compact devices that demand speed, efficiency, and reliability. Designed with a PCIe Gen 3.0 x4 interface, it delivers fast sequential read speeds of up to 3400MB/s and write speeds of up to 3000MB/s, making it ideal for gaming handhelds, ultrabooks, and mini PCs. Its ultra-compact 2230 form factor, combined with advanced thermal management and SLC caching technology, ensures consistent performance even under demanding workloads.

Product Features

High-Speed NVMe Performance

Achieve fast data access with sequential read speeds up to 3400MB/s and write speeds up to 3000MB/s, improving system responsiveness and reducing load times.

Ultra-Compact M.2 2230 Form Factor

Engineered for space-constrained devices, the 30mm length design is ideal for handheld gaming consoles, ultrabooks, and compact PCs.

Advanced 3D TLC NAND Technology

Built with high-quality 3D TLC NAND flash memory to provide reliable performance, improved endurance, and efficient data storage.

Enhanced Thermal Management

Features an all-metal cooling plate and intelligent temperature control to prevent overheating and maintain stable performance during intensive tasks.

SLC Caching for Sustained Speed

Full-disk SLC cache technology enhances burst write performance and ensures smooth handling of large file transfers.

Reliable Data Protection and Monitoring

Supports LDPC ECC, TRIM, S.M.A.R.T monitoring, and garbage collection to maintain data integrity and extend the lifespan of the SSD.

Energy Efficient Operation

Optimized power consumption with approximately 3.95W during active use and as low as 0.05W in idle mode, ideal for battery-powered devices.

Built for Durability

Designed with no moving parts and high resistance to shock and vibration, ensuring long-term reliability in portable and demanding environments.

Product Specifications

• Capacity: 1TB
• Form Factor: M.2 2230
• Interface: PCIe Gen 3.0 x4, NVMe 1.3
• Sequential Read Speed: Up to 3400MB/s
• Sequential Write Speed: Up to 3000MB/s
• Random Read (4K): Up to 360,000 IOPS
• Random Write (4K): Up to 280,000 IOPS
• NAND Type: 3D TLC NAND Flash
• Cache: Full-Disk SLC Cache
• Endurance: 512 TBW to 600 TBW
• MTBF: 1.5 million hours
• Power Consumption (Active): Up to 3.95W
• Power Consumption (Idle): As low as 0.05W
• Operating Temperature: 0°C to 70°C
• Humidity: 5% to 95% non-condensing
• Shock Resistance: 1500G / 0.5 ms
• Vibration Resistance: 10–200 Hz, 0.5G
• Dimensions: 30.00 mm x 22.00 mm x 2.25 mm
• Weight: Approx. 6g to 8g
• Error Correction: 4K LDPC ECC
• Supported Features: TRIM, S.M.A.R.T Monitoring, Garbage Collection
