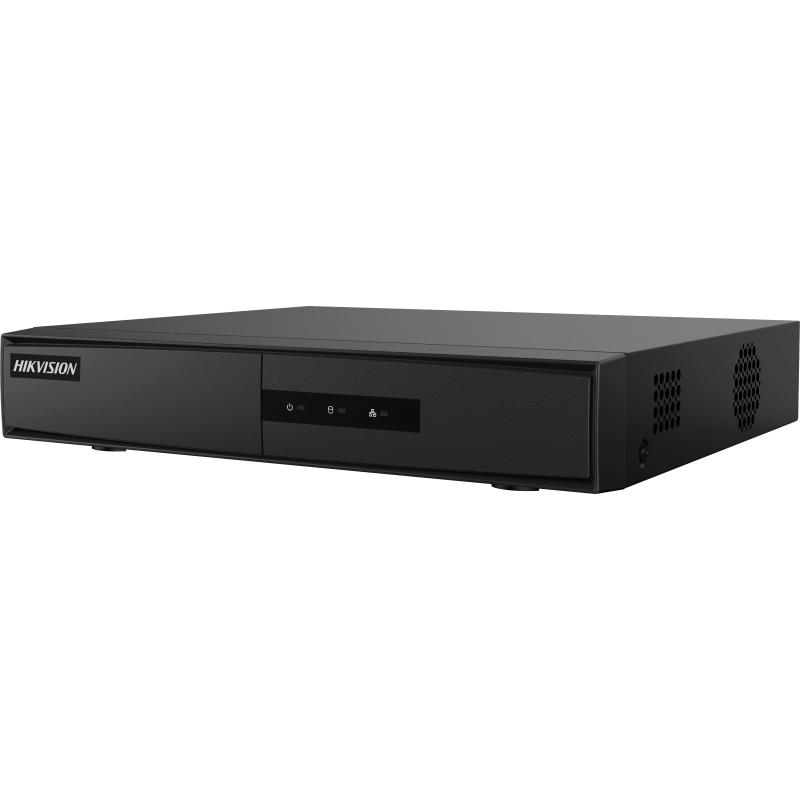

Hikvision DS-7108NI-Q1/8P/M 8-Channel Mini 1U 8 PoE NVR

The Hikvision DS-7108NI-Q1/8P/M 8-Channel Mini 1U 8 PoE NVR is a high-performance network video recorder designed for small to medium-scale surveillance systems. Supporting up to eight IP camera inputs and full H.265+/H.265/H.264+/H.264 video compression, it delivers efficient storage and high-quality video recording. With simultaneous HDMI and VGA output, 1080p decoding capability, and built-in PoE support, this NVR provides a reliable, easy-to-install solution for homes, offices, or small businesses requiring robust, centralized monitoring.

Product Features

Advanced Video Compression

Supports H.265+/H.265/H.264+/H.264 formats to reduce bandwidth and storage requirements without compromising image quality.

Multi-Channel Input and Playback

Up to 8 IP camera inputs with 4-channel synchronous playback and flexible decoding options for smooth, high-resolution monitoring.

High Decoding Performance

Capable of decoding 4 channels at 1080p (30 fps), 2 channels at 4 MP (30 fps), or 1 channel at 6 MP (30 fps), ensuring detailed video clarity.

HDMI and VGA Output

Provides simultaneous HDMI and VGA outputs with multiple resolutions, including 1920 × 1080p and 1280 × 720p, for convenient viewing on different display devices.

PoE Support for Simplified Installation

Equipped with 8 PoE interfaces (RJ-45 10/100 Mbps) to power cameras directly, reducing the need for additional power adapters or wiring.

Remote Access and Networking

Supports up to 16 remote connections with TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, and UPnP™ protocols for flexible monitoring from anywhere.

Flexible Storage Options

One SATA interface supporting up to 6TB per disk provides ample storage for continuous high-resolution recordings.

Product Specifications

• IP Video Input: 8 channels, up to 6 MP resolution
• Incoming Bandwidth: 60 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output: 1 channel, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1 channel, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Decoding Format: H.265+/H.265/H.264+/H.264
• Recording Resolution: 6 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• Synchronous Playback: 4 channels
• Decoding Capability: 4-ch @1080p (30 fps), 2-ch @4 MP (30 fps), 1-ch @6 MP (30 fps)
• Stream Type: Video, Video & Audio
• Remote Connection: 16 users
• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Network Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet
• PoE Interface: 8 × RJ-45 10/100 Mbps self-adaptive Ethernet, Power ≤75 W, Standard IEEE 802.3 af/at
• SATA Interface: 1, up to 6 TB per disk
• Alarm In/Out: N/A
• USB Interface: 2 × USB 2.0 (rear panel)
• Power Supply: 48 VDC, 1.8 A
• Power Consumption: ≤10 W
• Operating Temperature: -10 to +55ºC (+14 to +131ºF)
• Operating Humidity: 10% to 90%
• Dimensions (W × D × H): 265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″)
• Weight: ≤1 kg (2.2 lb)
• Certification: CE, EN50130-4, EN 61000-3-2, EN 61000-3-3
